Black Lion Audio Sparrow mk2 White:  a punchy, focused and clear sounding AD converter.

The Black Lion Audio White Sparrow MKII ADC is a 2-channel analog-to-digital converter featuring selectable sample rates ranging from 44.1kHz - 192kHz. The Sparrow MKII ADC ensures optimal conversion, using Black Lion Audio's custom technology to ensure supreme signal integrity. This white version employs TWO converters in a parallel-balanced circuit to drastically boost converter dynamic range Once you track with it, you’ll find other converters sound hard, processed, or lifeless. Use it for mastering, two-track classical or jazz recordings, final mixes, or whatever application your studio needs.

Everything works as it should, no issues. Purchased as new directly from Black Lion audio (USA). In mint condition. Supplied with its power cable. These units are now difficult to find and no longer in production. Studio use only.

Condition:

• This is a used unit.
• Please, see all photos.
• This unit has been tested and I can confirm it is working as it should.
• This unit includes its power cable.
• It does not include original box.

Please feel free to ask any questions

-------------------------------------------------------

THE SPARROW MK2 WHITE

Punch and definition. Precise crisp distinctness, better high and low-frequency transient response (crisp highs and punchy lows).

Okay, sometimes it’s fun to show what your design team is capable of creating. The White version of the Sparrow mk2 (white faceplate) represents a portion of our research into delta sigma conversion and clocking architecture. What sets it apart from the rest of the pack? For one thing, instead of using one converter for stereo conversion, it employs TWO converters in a parallel-balanced circuit to drastically boost converter dynamic range. Add to this our unique approach to converter configuration, our 220/270SP master clock with wide Q third harmonic crystal oscillators, advanced PLL recovery, and a low noise analog path, and all of these elements together will yield the richest, clearest and fattest sounding A/D converter to ever have set foot in your recording studio. The Sparrow mk2 WHITE outperforms the FM192, making it among the best two-channel A/D converters available in the pro audio market today, period.

Key Features

• Premium-Grade Analog-To-Digital Converter
• Selectable Sample Rates Up To 192kHz
• Balanced XLR & TRS Inputs
• AES, Coax S/PDIF and Optical S/PDIF Outputs
• Robust, Rack-Mountable Chassis

The Black Lion Audio White Sparrow MKII ADC is a 2-channel analog-to-digital converter featuring selectable sample rates ranging from 44.1kHz - 192kHz. The Sparrow MKII ADC ensures optimal conversion, using Black Lion Audio's custom technology to ensure supreme signal integrity. The 4 input stage trim presets and single amplifier is designed for simplicity and purity of signal path. The exceptional sonic performance and versatile dynamic range deliver mastering-grade conversion. The XLR and 1/4" inputs are accompanied by AES, coaxial S/PDIF and optical S/PDIF digital outputs. The compact yet robust design is rack-mountable only taking up 1U and 1/2 space with its all-metal chassis.

Full Description Mastering-Grade Conversion

The Black Lion Audio White Sparrow MKII ADC features a complete re-design, based on the original White Sparrow ADC. The two-channel analog-to-digital converter delivers mastering-grade audio at an affordable price. The White Sparrow MKII features sampling rates ranging from 44.1kHz – 192kHz ideal for a range of applications. The integrated clocking architecture features low jitter and wide Q third harmonic crystal oscillators for optimal signal integrity and performance. When it comes to high-quality conversion, the process requires lots of current movement which can result in unwanted artifacts and noise. The White Sparrow MKII combats this with the unique circuit design and custom technology. The result is a high-headroom analog stage that will capture even the smallest nuances in immense detail.

Versatile Connectivity

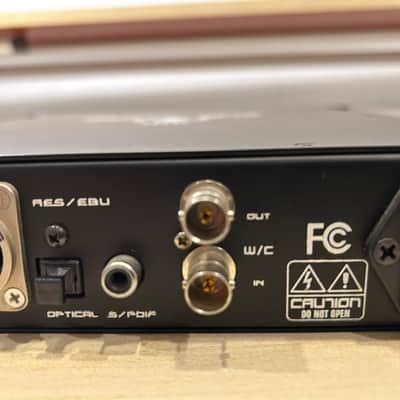

The White Sparrow MKII includes both XLR and ¼” balanced inputs as well as a range of other analog and digital connectivity. In addition to the balanced inputs, the converter features AES, coaxial S/PDIF and optical S/PDIF digital outputs. World clock I/O is also included for connecting to an external clock device. The converter itself can accommodate nominal input signal level ranging from +11dBu down to -10dBV. The input even features a user selectable 110/220 voltage input. The user input level is selectable and can be calibrated to your own requirements.

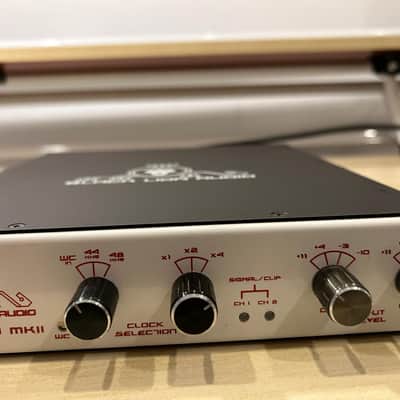

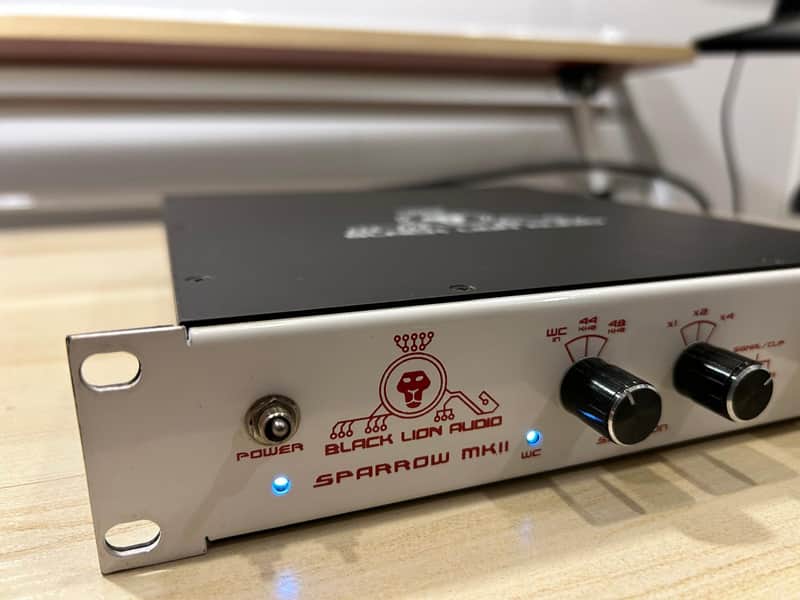

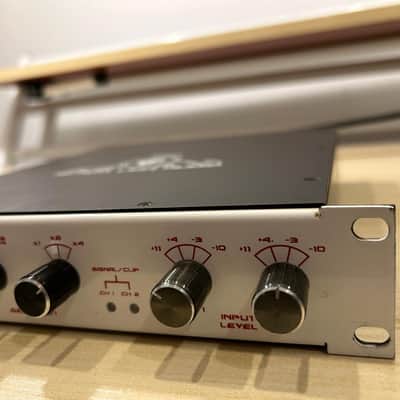

Vintage-Style Controls

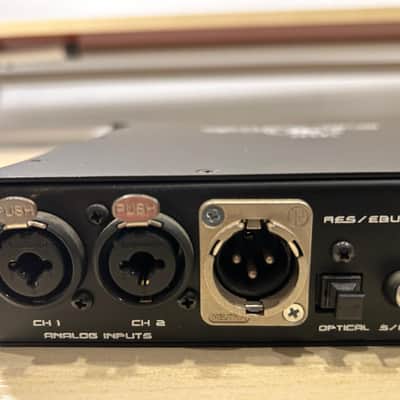

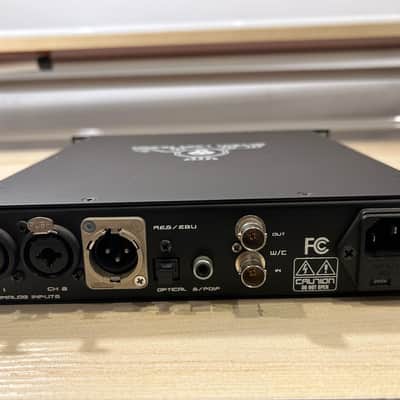

The re-designed White Sparrow MKII features a retro-style controls on the front panel including rotary style controls for frequency selection, channel selection as well as input calibration for both channels. The front-panel even features LED metering, giving you a quick and easy way to monitor your signals at a glance. The highly robust yet compact construction takes up to 1U high, 1/2 rack space with its all-metal chassis. The rear of the unit features combination balanced inputs for both XLR and ¼” devices.

Features

• Balanced inputs (XLR or 1/4”)
• Selectable user input level calibration
• Word clock input and output
• Sampling rates from 44.1kHz -192kHz
• AES, coax S/PDIF, and optical S/PDIF digital outputs
• LED metering
• Accommodates nominal input signal levels from +11dBu down to -10dBV
• 1U high, 1/2 space rack mount chassis
• User selectable 110/220 voltage input

Specifications

Dynamic Range

• Unweighted: 112dB
• A-Weighted: 124dB
• Max analog input before digital clipping: >+24dBu

Inputs

• Balanced Analog: TRS and XLR
• Clock: 75 Ohm BNC

Outputs

• SPDIF: Coaxial (75 Ohm) and Optical, AES-EBU (110 Ohm)
• Word Clock: 75 Ohm BNC
• Word Clock Lock: Indicator LED
• Sampling Rates: 44.1kHz – 192kHz
• Bit rate: 24 bit
• Latency: ≤ 65/Fs
• Digital Audio Output Level Indicator: Bi-Color LED (Green/Amber/Red)
