Keyboard61 semi-weighted keys (C2 – C7) with velocity and after touch System Upgradable operating system, Multitasking, Load while play Sound Generator EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each SoundPolyphony128 voices, 128 oscillatorsEffectsAccompaniment/Song:2 insert effects; 2 master effects (148 types)Keyboard Sounds1 insert effect; 2 master effects (148 types)Final mastering effectsLimiter, Master EQVoice ProcessorEQ, Compressor, Gate, 3-voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC•Helicon®PresetsMore than 30 Factory, 64 UserGuitar Processor3 x FX. Presets: 45 Factory, 64 UserSounds / Drum KitsFactoryMore than 1,750 Factory Sounds, including two multilayer Stereo Pianos with damper and body resonance, GM/XG sound sets and 107 Drum KitsUser512 Sounds, 256 Drum KitsDigital Drawbars9 footages, percussion, key on/off, leakage, rotary speaker effectDNC (Defined Nuance Control) Technology, Natural Ambience Drums Full Sounds/Drum Kits editingSamplingUser PCM Sample memory300 MB compressed (equivalent to 600 MB linear data)Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, SamplingStylesFactoryMore than 430 Factory Styles, freely reconfigurable setsUser1,152 locations, including User and Direct banksEight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit

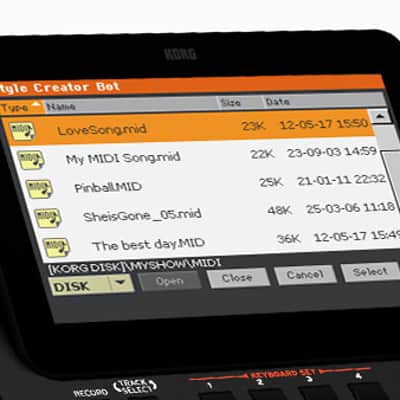

Style Creator Bot (MIDI Song to Style Converter)Style controls3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set ModeChord SequencerChord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook EntriesEdit functionsDelete, Copy from Style/SongBook, Import/Export from/to SMFKeyboard Set LibraryMemorize Keyboard Sound settingsFactoryMore than 300 Keyboard Sets, freely reconfigurableUser864 locations, including User and Direct banks‘My Setting’ special Keyboard SetKAOSS FXAutomatic MIDI FX generator
More than 65 Factory PresetsSong PlayPatented XDS Crossfade Dual Sequencer Player with X-Fader controlSupported formatsMID, KAR, MP3+Lyrics, MP3+GTwo Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external　video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox functionMP3 Player / RecorderDouble MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS EffectsSequencerQuick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native formatSongBookFully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting optionsCompatibilityPa-Series modelsStyles, Performances/Keyboard Sets, Programs/Sounds, Songs, SongBook Entries, Pads‘i-Series’ modelsStylesPadsFour Assignable Pads + Stop buttons
Pad Record functionControlsMaster Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tone and Arabic Scale memorized inside Keyboard Sets, Joystick, Audio In Volume, Mic FX Level, Harmony/Double On/Off, Mic/Guitar Preset, Audio In Mute ,2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock, Metronome On/Off, Dial, Search, Shift, Chord Scan (Lower, Upper), Split, Track Select, Record
Virtual Quarter Tone SubScale Keypad, 4 x Scale PresetsControl InputsDamper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switchAudio InputsLine (Left/Right)1/4” jacks, +20dBm, 12k OhmMic/Guitar (Left)1/4” jack, with Gain control (0 — +40dB)
12k Ohm (Mic) / 500k Ohm (Guitar)Audio OutputsLeft/Right1/4” jack, +21dBm, 0.003% THD+N@+18dBmHeadphone output1/4” jack, 16-200 Ohms (50 Ohms suggested)Speaker SystemAmplification2 x 33 WSpeakers2 x 100 mm woofers in bass reflex box, 2 x 25 mm dome tweetersMIDIIN, OUTStandard MIDI connectorsUSB to MIDI using the USB ports
Eight user definable MIDI SetupsUSBType AHOST, for memory and controllers x 2 (front/rear)Type BDEVICE, for personal computers and tablets x 1 (rear)2.0 Hgh-Speed connections (480 Mbit/s).StorageInternal memory960 MBUSB external drives (drive not included)
microSD card (not included); rear panel slot with plastic coverDisplay7” Wide capacitive color TouchView™ TFT display – Manual tilt systemVideo OutRCA connectorClockInternal System ClockPower Consumption100–240 Volts, 50/60 Hz, 25 Watt normal / 0.3 Watt in standbyDimensions (W x D x H)1030 x 378.3 x 133 mm / 40.55″ x 14.89″ x 5.36″ (without music stand; height with music rest: 355.8 mm / 14”)Weight10.75 kg / 23.7 lbsIncluded ItemsAC Power Cable, Music Stand, Quick Guide manual
