UNISON RESEARCH Unico 90 - Class AB Hybrid Integrated Amplifier - NEW!

PLEASE CHECK AVAILABILITY BEFORE CONFIRMING YOUR PURCHASE! Our stock can change any minute – we sell through various sales channels.

Brand New! – Closed Box
We are authorised dealers of the finest audio gear and musical instruments.

Note 1: Free shipping within EU. Shipping price to any other country is an estimate. Please message us for specific shipping price to your particular location.
Note 2: This product is custom ordered, please check availability and/or eventual shipping delay.
Note 3: This product is factory set for 240V. If you need a different voltage, please message us.
Note 4: We sell without taxes anywhere outside Europe and to valid VAT ID companies inside Europe. Please ask us your price without Tax in those cases.
Note 5: We can quote any kind of bundle with our products at the most convenient prices. Just visit our store and ask for it.

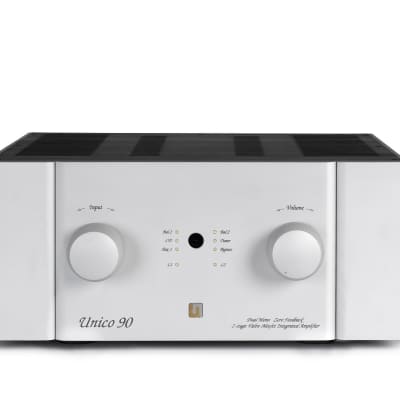

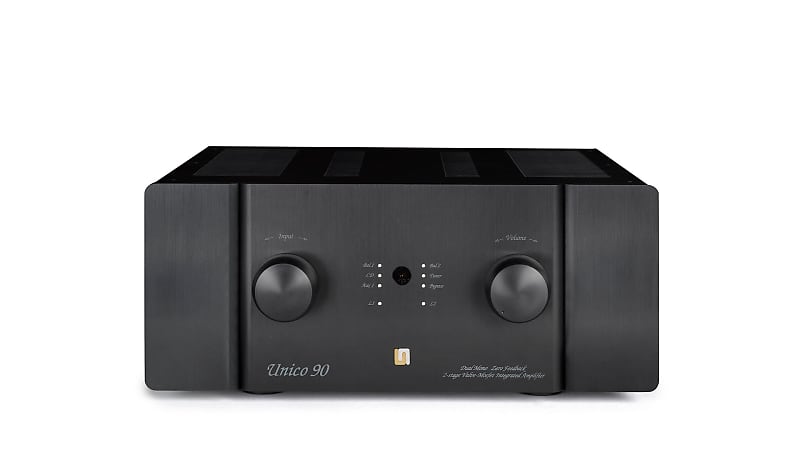

UNISON RESEARCH UNICO 90 - CLASS AB HYBRID INTEGRATED AMPLIFIER

Unico 90 is a class AB hybrid integrated amplifier with zero feedback, as the most precious valve amplifiers uses only two stages. The heart of the Unico 90 circuit is found in its hybrid structure. All of the gain, and subsequently the “character” of the amp, is determined by the only tube stage made with ECC83 and ECC 81 in particular multiple-parallel-totem-pole.

Tech specs

• Output power: 100+100 W  RMS on 8Ω / 160+160 W  RMS on 4Ω
• Valves: 2X ECC83, 4X ECC81
• Output stage: Class AB thermostable, 6X Hexfet
• Input stage: Pure A class, double triode  totem pole ECC83  and  parallel totem pole ECC81 This single stage due to the particular circuitry is able to amplify the input signal and drive  directly the power stage.
• Number of stage: 2, This amplifier due to the particular circuitry is realized by only two stages: input stage and output stage, and use only local feedback

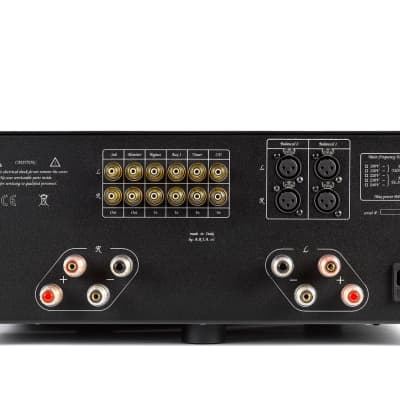

• Input: 6 line (3 RCA, 2 XLR, 1 “bypass” RCA)
• Line Outputs: 1 tape, 1 sub  (volume controlled)
• Frequency response: -1dB @ 12Hz e 45kHz -3 dB
• Input impedance: 21Kohm // 300pF
• Input sensitivity: 860mV RMS
• Output connectors: 4 + 4  bi-wiring
• Global Feedback factor: 0 dB
• THD: < 0.15% @ 1kHz, 1 W < 0.5% @ 1kHz, 10 W
• Output resistance: <0.4 ohm, resistive on all audio frequencies
• Power Consumption: 550 W (at max power on 8 ohm)
• Dimensions: 43.5cm x 44 cm x 18 cm h
• Net weight: 20 kg
