Original product Condition: Perfect Shipping: DHL Paket

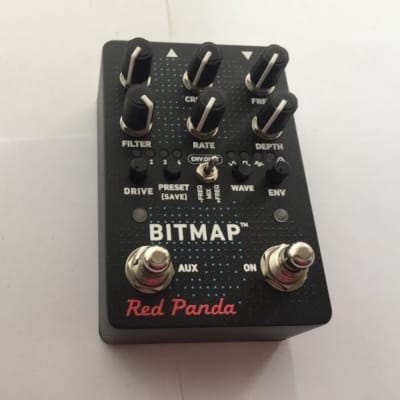

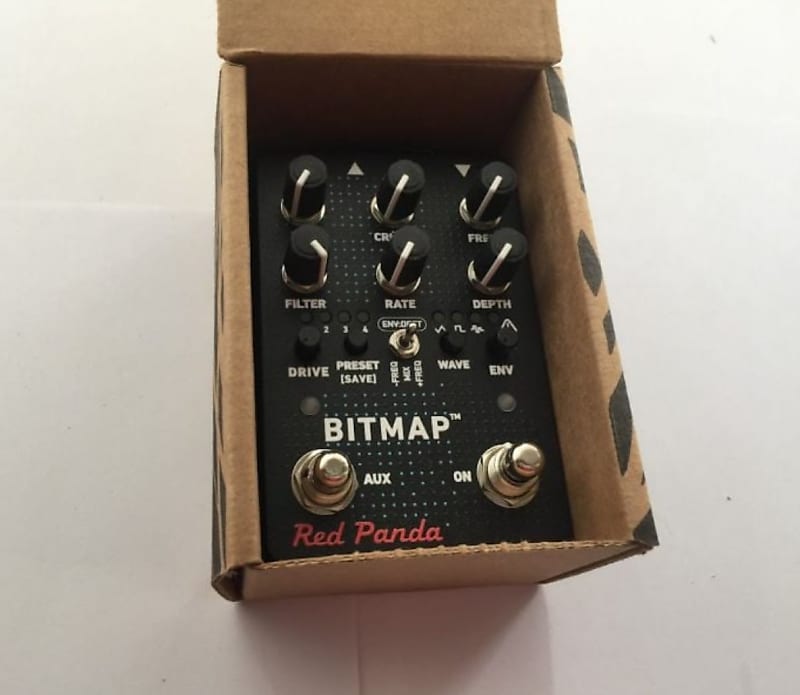

The Bitmap is a bit crusher with fractional bit reduction and sample rate modulation. Bitmap 2 adds waveshaping and wavefolding functions, as well as a window comparator for extreme digital distortion. The Drive setting accommodates everything from single coil pickups to synths, with +8dBu maximum signal level and enough gain to sound like an overdriven console channel. Modulation and envelope controls create dynamic and responsive digital effects and distortions.

The Bitmap 2 is designed to give maximum sustain without destroying your staccatos. At less extreme settings, you'll get non-linear layers that subtly interact to give the warmth of 8- and 12-bit samplers. Reducing the sample rate turns your guitar into 8-bit video game sounds or twists your scales into inharmonic melodies. Modulating the sample rate adds subtle movement and gives your guitar completely new tonal textures.

Features:

Fractional bit reduction from 24 to 1 bit.

Reduced sample rate from 48 kHz to 110 Hz.

Sample rate modulation with triangle, square and random waveforms.

Adjustable waveshaping and wavefolding functions.

Mix control to retain the bass or add a subtle crush.

Envelope setting for sample rate or mix.

Drive setting suitable for single and double mics, and line level signals.

4-pole low-pass filter.

Stereo input/output (TRS).

Soft touch and easily replaceable bypass.

External footswitch assignable to tap tempo or preset selection.

Additional parameters via MIDI (USB or TRS).

Synchronization in MIDI Clock.

4 presets on the pedal and 127 in MIDI.

Online editor for presets and hidden parameters.

Pedal designed and assembled in the USA.
