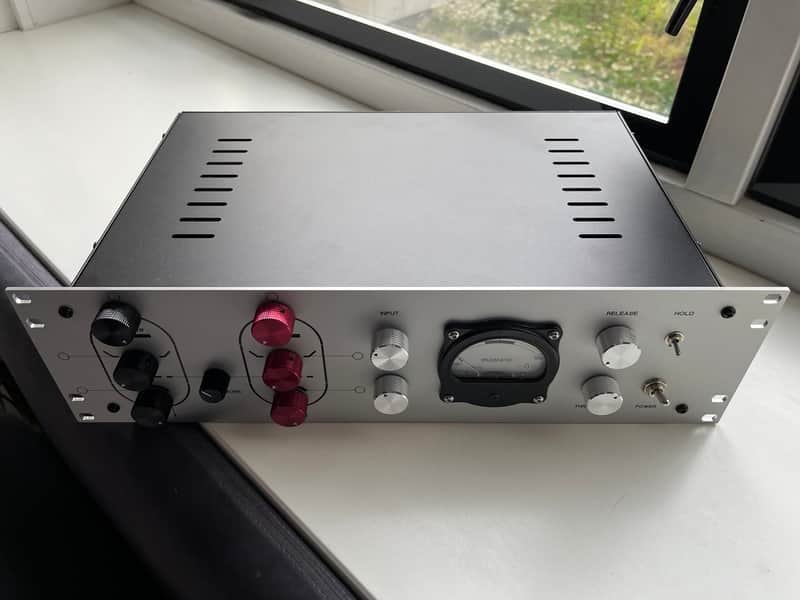

Vari-mu compressor and tube EQ in single 3U rack custom

Custom build using vintage transformers to make sure every version of my PCB works. The price is symbolic, as I want to reinvest in building another idea.

This is a two-piece gear.

One part is a tube EQ interfacing a 5kOhm:5kOhm input transformer (Iskra TL-1M) and a 10kOhm:500Ohm output transformer (Chicago Transformer, -6dB 500:600 Ohm H-padded). Tons of gain. Tubes to be used in EQ: 6SL7, 6SJ7. Selling together with NOS tubes.

Tube EQ was built using a known old schematic and has controls:

• LOW
• MID LOW
• LESS / MORE
• MID HI
• HI

The other part is a Vari-Mu tube compressor interfacing a 20kOhm:600Ohm input transformer (Chicago Transformer) and a 10kOhm:500Ohm output transformer (Chicago Transformer, -14dB 500:600 Ohm H-padded). The input likes to be driven, the output has a lot of gain. Tubes to be used in the compressor: 6BZ7, 12AT7, 6AL5. Selling together with NOS tubes. I will give you calibration instructions - useful in case you want to replace tubes.

The compressor is based on the Altec 436C, RS124, VK1 topology and has controls:

• INPUT
• ATTACK
• RELEASE
• THRESHOLD
• HOLD (release mod from RS124)

Vintage-y VU meter says to stay within a certain area while compressing audio (black area in the middle) - look at the pictures and video test.

Chicago Transformer refers to Chicago Standard Transformer Corporation later known as Stancor.

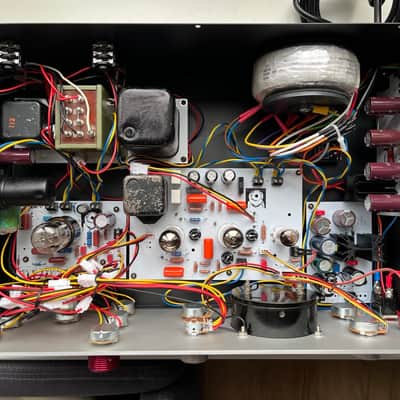

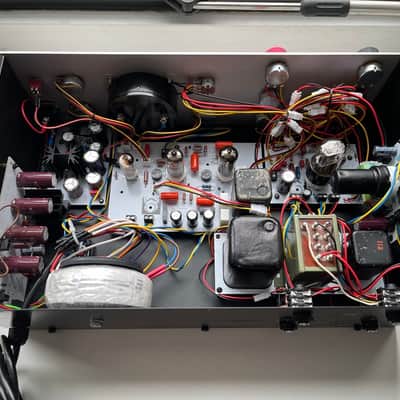

This thing is heavy (5 big transformers inside). Shipping it very far would not be simple, please consider.

Selling as is, no returns.
