APart PA240P Professional Public Address Amplifier

The PA240P Power Amplifier is a fully equipped 240 watts constant voltage power amplifier that will meet all of your requirements. It is the device to built larger professional industrial sound applications. Besides high reliability and the basic functions of a power amplifier the PA240P excels above similar products by the inclusion of its extra technical features, possibilities and protection. The unit is able to drive 4 ohms or constant voltage loudspeaker lines (50 - 70 - 100 volts). The amplifier has an input for background music (with link through) and a priority line input(for paging or evacuation messages), which can be activated by contact closure.

The bass - treble tone control guarantees an excellent sound experience, even in tough acoustical conditions.

The volume of the program input can be set at the front and the volume of the priority input at the back of the amplifier.

When the priority input has been activated, 24V DC outputs will be available to activate priority relays of loudspeaker attenuators or other devices.

Power Amplifier Features:

- Fully equipped constant voltage power amplifier

- Ultra reliable 240 watt 100 Volt power amplifier

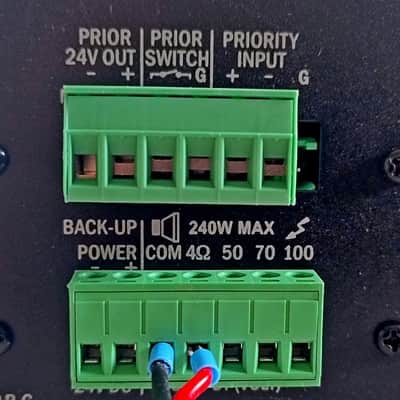

- Balanced priority line input (adjustable volume)

- 24V priority output, activated by contact closure

- Operates with 24V DC or 230V AC

Power Amplifier Specifications:

- Dynamic output power 4 ohms: 240 watts

- RMS output power 4 ohms: 240 watts

- RMS output power 8 ohms: 120 watts

- Output power RMS 100 volts: 240 watts

- Minimum impedance load per channel: 4 ohms

- Minimum impedance load bridged per channel: 8 ohms

- Power consumption (max): 525 watts

- Power supply: 230 VAC

- Emergency power supply: 24 VDC

- Output voltage tappings: 100 - 70 - 50 volts

- 4 ohms- Output channels: 1

- Line input balanced: 1

- Tone control: yes- Priority input contact: 1

- Emergency input: yes

- Priority output: 24 VDC

- Priority levels: 1- Frequency response (in Hz): 35 - 22 k

- Cooling system: fan

- Applicable in 100V: yes

- Applicable low impedance: yes

- Dimensions (W x H x D): 483 x 88 x 364 mm

- Weight: 14.05 kg
