BRICASTI DESIGN M1 - DIGITAL TO ANALOG CONVERTER

- Network option for extra € 1.120 (+ 21% Vat, if applicable)
- I2S Interface option for extra € 1120 (+ 21% Vat, if applicable)

The Bricasti Design
Model 1 USB Digital to Analog Converter

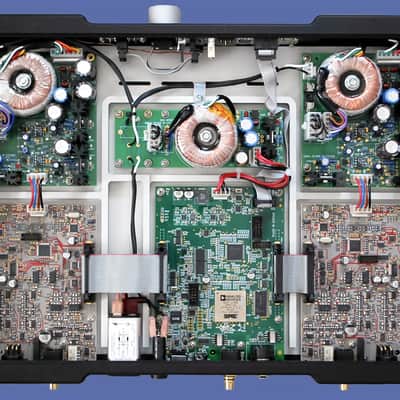

The M1 digital to analog converter is a dual mono design; there are two completely isolated channels, each with its own dedicated linear power supply, D/A converter, DDS clocking, and analog circuitry. This design ensures that analog crosstalk is virtually nonexistent, that the necessary power requirements for each channel are well met and isolated from each other and the digital processing is isolated, having its own power supply. With our twin DAC design, the dynamic range for each channel is optimized by using the stereo ADI 1955 D/A converter in a mono configuration. The M1 also includes Bricasti's own proprietary filter technology, further opening new territory with what is achievable in a modern D/A reference.

Network Player Option
First incorporated for the M12 Dual Mono Source Controller, The Bricasti network interface and media renderer option allows any M1 to be seen as a DNLA device on an audio network and server as an audio device to play or stream to through a wired connection on your network. Now you can run wired data longer distances without loss in quality so your network server can go anywhere you choose.

Product Highlights

• DSD64, DSD128 and DSD 256 playback.
• High-performance MDx processor.
• Dedicated dual mono design.
• Highly acclaimed, proprietary filter technology.
• Extremely low jitter @ 6 picoseconds.
• Supports sample rates of up to 352.8kHz and 24 bits.
• Minimum and linear phase filters.

M1 Remote Control Option
The M1 remote control provides full control of the M1 and is now a standard feature of the M1. The M1 remote is also available as an upgrade kit to be added to any M1.

Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

SPECIFICATIONS

Digital Inputs
Connectors:
USB: USB-2
XLR: AES/EBU 24 bit Single Wire
RCA: SPDIF
Toslink: Fiber Optic
Ethernet (optional)
Sample Rates:
USB: 44.1 kHz - 384 kHz, DSD 64x 128x DSD 256x Native and DoP
AES, SPDIF: 44.1 kHz - 192kHz
Ethernet: 44.1 kHz to 384kHz, DSD 128 Native
Toslink: 44.1 kHz - 96 kHz
Frequency Response Dig I/O:
DC to 24 kHz @ 48 kHz
DC to 96 kHz @ 192 kHz

Balance Analog Output
Connectors: XLR balanced (pin 2 hot)
Impedance: 40 ohm
Max output level:+22 dbm
Min output level:+8 dbm
D/A Conversion:24 bit delta sigma 8x oversampling
Frequency Response @44.1k:10 hz- 20 kHz +0dB, -.2 dB
Dynamic Range:>120dB A-WeightedÇ
THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs

Unbalanced Analog Output
Connectors:RCA
Impedance:40 ohm
Output level: +8 dbm (2V RMS)
D/A Conversion: 24 bit delta sigma 8x oversampling
Frequency Response @ 44.1k: 10 hz- 20 kHz -.2 dB
Dynamic Range: >120dB A-Weighted
THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs
