WEISS AUDIO MAN301R – MUSIC ARCHIVE NETWORK PLAYER, CD PLAYER, PREAMP, NEW DAC-B, AND MORE

ALL YOUR MUSIC AT YOUR FINGERTIPS
IPAD CONTROLLED AND ROON BASED MUSIC ARCHIVE NETWORK PLAYER, STREAMER, CD RIPPER, PREAMP, AND MORE
The MAN301R provides a single access point to your entire music library. Play back and archive music on NAS drives, stream music from the internet, play Internet Radio Stations, rip CDs, get cover art and metadata — and control it all via the ROON interface and the Weiss web interface.*
The MAN301R is a powerhouse in terms of features and versatility, and a must-have for enthusiasts with music collections that are played back from multiple locations and / or for music streaming lovers.
Existing MAN301 units can be side-graded to the MAN301R version. Contact your dealer for more information.

FEATURES

MAN301RTHE ROON MODE
The main operating mode which needs the user to have a Roon subscription in order to be able to use the Roon user interface. Roon allows to:
– stream music from Qobuz, Tidal, KKBOX, Dropbox (with the appropriate subscriptions)
– play files from local storage devices
– stream radio stations via the Internet
Connect the MAN301R to your network to access your NAS devices and the Internet. Then use the Roon app to control and organize your entire music library. All common audio file formats are supported.
The MAN301R runs the Roon Core software, thus no additional computer is required.

THE PRE-AMP MODE
This mode allows the use of the MAN301R as a D/A Converter. Provided the MAN301R has a D/A Converter module installed. If there isn’t any D/A Converter installed the preamp mode can be used as a volume control for digital signals via the web interface.
The inputs available in pre-amp mode are: AES/EBU and S/PDIF on XLR, RCA and TOSLINK connectors, UPnP and airplay.

THE CD RIPPING MODE
This mode allows to rip CDs to a USB storage device plugged into the back of the MAN301R. The ripped files then can be played from within the USB storage device or can be copied to another storage device.

MAN301 DAC VERSION
The MAN301 comes in a version that includes a DAC of a similar design to the renowned Weiss DAC202. The MAN301 Server version (without the DAC) can be user updated with a D/A converter module at any time.
The D/A converter module adds analog outputs on XLR and RCA connectors.

TECH SPECS

Digital Inputs

• (1) Ethernet connector
• (1) XLR connector
• (1) RCA connector
• (1) TOSLINK connector (optical)
• XLR, RCA, TOSLINK inputs accept professional or consumer standard, i.e. accept AES/EBU or S/PDIF signals
• Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz on any of the inputs, except TOSLINK input: 96 kHz maximum
• Maximum input word-length: 24 Bits

Digital Outputs

• (1) XLR connector w/ AES/EBU format
• (1) RCA connector w/ AES/EBU format
• (1) USB type A connector
• (1) Ethernet connector
• (2) XLR connectors (hot on pin 2), DC coupled, short circuit proof output circuitry, output impedance 44 Ω
• (2) RCA connectors, DC coupled, short circuit proof output circuitry, output impedance 22 Ω
• The output level is selectable via the web interface

• WAV 44.1-192 kHz, 8-32 Bit, float, double
• AIFF 44.1-192 kHz, 8-32 Bit, float, double
• M4a/ALAC 44.1-192 kHz, 16-32 Bit
• M4a/AAC 44.1-96 kHz
• FLAC 44.1-192 kHz, 16-24 Bit (32 not tested/unknown)

Analog Outputs (DAC version)

• (2) XLR connectors (hot on pin 2), DC coupled, short circuit proof output circuitry, output impedance 44 Ω
• (2) RCA connectors, DC coupled, short circuit proof output circuitry, output impedance 22 Ω
• The output level is selectable via the web interface

Supported File Formats

• WAV 44.1-192 kHz, 8-32 Bit, float, double
• AIFF 44.1-192 kHz, 8-32 Bit, float, double
• M4a/ALAC 44.1-192 kHz, 16-32 Bit
• M4a/AAC 44.1-96 kHz
• FLAC 44.1-192 kHz, 16-24 Bit (32 not tested/unknown)

Dimensions
Depth: 30 cm / 11.8 inches
Width: 45 cm / 17.7 inches
Height: 6.6 cm / 2.6 inches
Height with feet: 7.4 cm / 2.9 inches

Power Supply

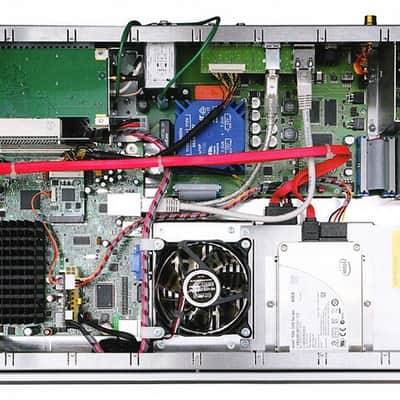

Two separate power supplies are employed, one for the computer section and another one for the digital and analog audio sections. The audio section power supply uses a toroidal transformer with a combination of switching and linear voltage regulators. The standby power is at a very low 0.5 W maximum.
