• Design: Rack Enclosures
  • Simultaneously usable inputs: 40
  • Mono channels: 24
  • Mic-In: 24x XLR/Jack Combo
  • Phantom Power: Yes, 48 V DC
  • Line in: 24x XLR/Jack Combo ( Channel 1- 24), RCA L/R ( Channel 23/24)
  • Bluetooth-Streaming: no
  • SD-Card-Player: Player/Recorder
  • Supported Storage Media: SD Card
  • Wi-Fi: integrated
  • Computer connection: via USB-B or RJ45 Port
  • Audio Interface: 64x Input / 64x Output (USB)
  • Outputs: 2x XLR (L/R), 12x 6,3 mm Jack (Mix-Out 1-12)
  • Headphone Jack: 1x 6,3 mm Jack, Adjustable
  • Ethernet: RJ45
  • Other Interfaces: Ethercon AVB Audio Network
  • AUX outputs: 12
  • Sub groups: 24 DCA Groups, 4 Audio Subgroups
  • Effects: yes
  • Compressor: FAT channel compressor in each input channel and output bus
  • Equalizer: yes
  • Channel Fader: Virtual Faders
  • Master-Fader: virtual fader
  • Rack mounting: yes
  • Dimensions: 19", 2HE
  • Power supply: 230 V AC, 50 Hz
  • Weight: 4,9 kg
  • Includes: Mixing console, power cord, software

Promoted similar listings













ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model

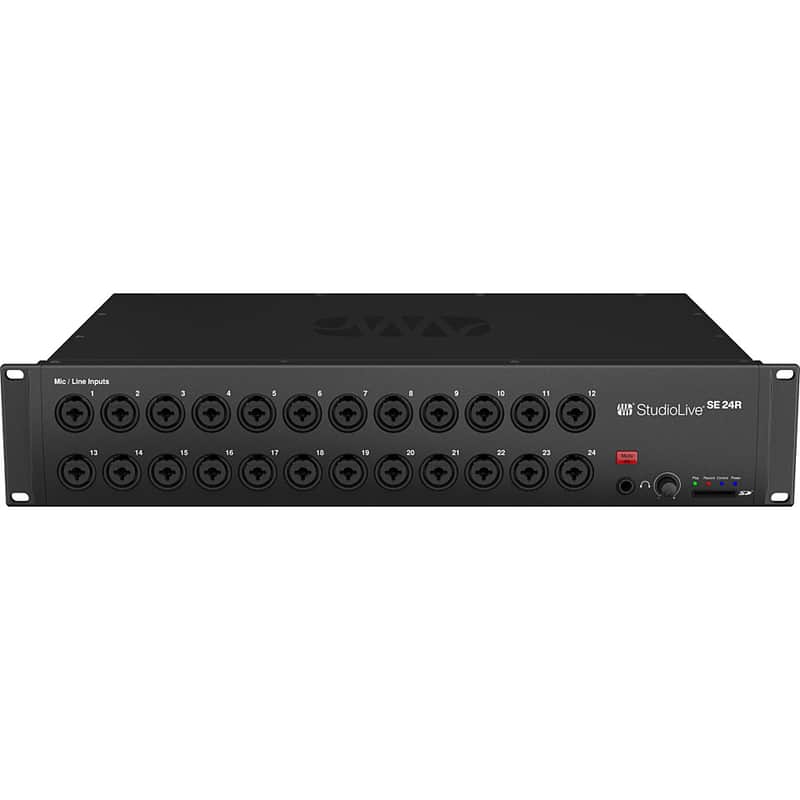

  • StudioLive Series III SE 24R
