Used in a few YouTube videos and recording sessions but always went straight back in the box.

A rare modern classic

Distortion Effektpedal with eight analog distortion circuits, extensive tone control, MIDI and 100 memory locations

The Elektron Analog Drive Multi-Circuit Analogue Distortion Unit for Guitars is equipped with eight analogue circuits, 3-band sound control and MIDI in/out connectivity. Analog Drive is the ideal pedal for guitarists who want to interact with signals and tones in a diverse and characterful way.

The sonic range of the Analog Drive, thanks to the eight different analogue distortion circuits, is remarkable. Enhance your amp with the 3-band analogue EQ. A sweepable mid-band is useful for dialling in the ideal EQ setting. The mid-EQ can be controlled with an expression pedal, creating analogue wah-like sounds. All settings are fully controllable via MIDI and you can even send MIDI program change messages.

The main features of the Elektron Analog Drive Multi-Circuit Analogue Distortion Unit for Guitars include:

• 100% Analogue Signal Path
• 8x Analogue Distortion Circuits
• 3-Band Analogue EQ with Sweepable Mid Band
• Input Level On Tip: -5 V – +5 V
• Unit Power Consumption: 5 W, 400 mA Typical
• Compatible Elektron Power Supply: PSU-3b
• Display: Dual Digit Seven-Segment LED

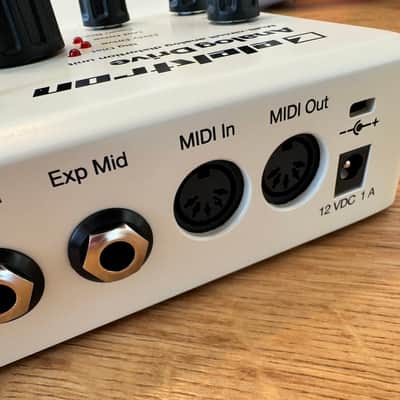

• MIDI: I/O

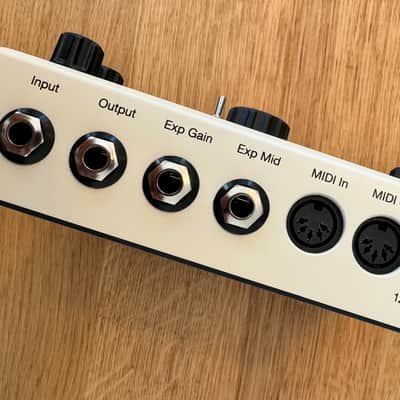

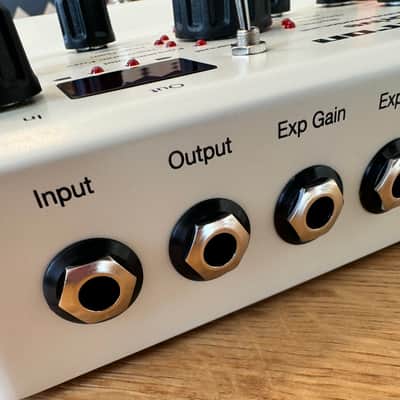

• Input: 1/4” Audio
• Output: 1/4” Audio
• Expression Pedal Input: 2x 1/4”
• Power Inlet: Centre Positive 5.5 x 2.5 mm Barrel Jack, 12 V DC, 1 A
• Housing: Sturdy Cast Aluminium
• Dimensions: 171 x 177 x 62 mm
• Weight: 1.2 kg
