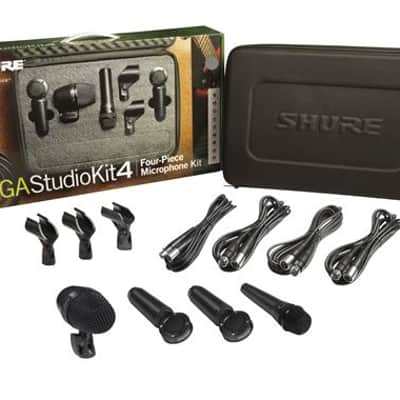

The PGAStudioKit4 Microphone Kit is a versatile package of professional quality microphones, assembled to provide excellent sound for the recording and performance of amplified and acoustic instruments. The microphones selected for the PGAStudioKit4 provide a wide variety of flexible solutions for most recording opportunities. Included in StudioKit4 is one PGA52 drum microphone, one PGA57 instrument microphone and two PGA181 side-address microphones, along with four XLR-XLR cables, and a carrying case.

Shure PGAStudioKit4 Drum Microphone Kit Includes

• PGA52 (1) Cardioid Dynamic Kick Drum Microphone
• PGA57 (1) Cardioid Dynamic Instrument Microphone
• PGA181 (2) Side-Address Cardioid Condenser Microphone
• A25D Break-resistant Microphone Clip
• WA371 (2) Break-resistant Microphone Clips
• C15J (4) 15 foot (4.6 m) XLR-XLR Cables
• 95G16526 Zippered Carrying Case

CALIFORNIA PROPOSITION 65 WARNING
 WARNING: Cancer and Reproductive Harm -

PGA52

• Type: Dynamic (moving coil)
• Frequency Response: 50 to 12,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 150 O
• Sensitivity: at 1 kHz, open circuit voltage -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 454 g (16.01 oz)
• Connector: Three-pin professional audio (XLR), male
• Operating Temperature: -20 to 165 °F (-29 to 74 °C)
• Operating Humidity: Relative 0 to 95%

PGA57

• Type: Dynamic (moving coil)
• Frequency Response: 70 to 15,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 150 O
• Sensitivity: at 1 kHz, open circuit voltage -56.5 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 280 g (9.88 oz.)
• Connector: Three-pin professional audio (XLR), male
• Operating Temperature: -20 to 165 °F (-29 to 74 °C)
• Operating Humidity: 0 to 95%

PGA181 (2)

• Type: Electret condenser
• Frequency Response: 50 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 120 O
• Sensitivity: at 1 kHz, open circuit voltage 1 kHz at 1% THD, 1 kO -38 dBV/Pa (12.7 mV) 1 Pa=94 dB SPL
• Maximum SPL: 138 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 383 g (13.5 oz.)
• Connector: Three-pin professional audio (XLR), male
• Housing: Cast zinc
• Power Requirements: 48 VDC phantom power (4 mA)
