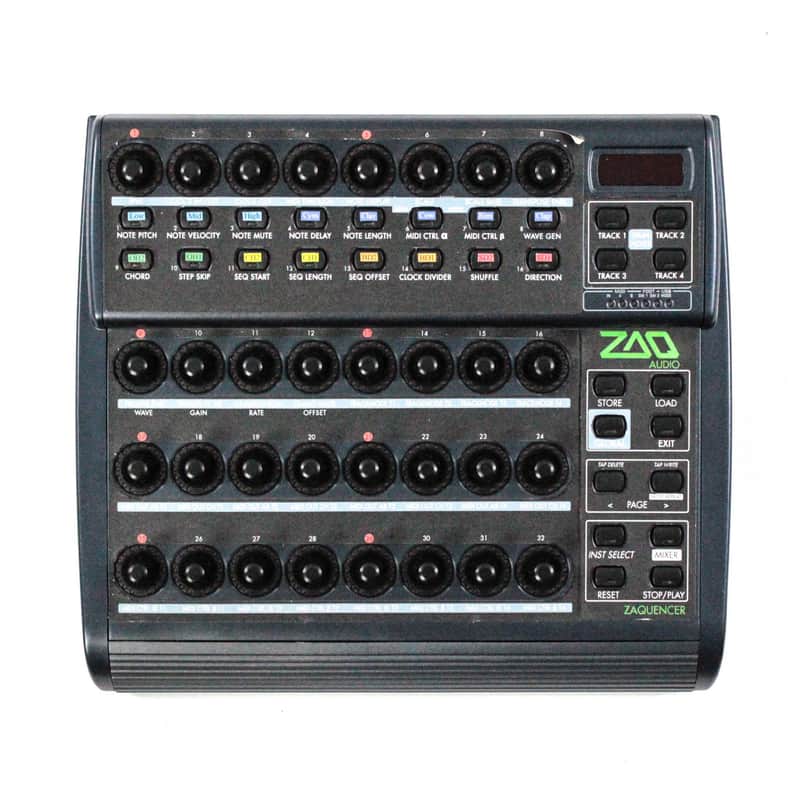

Zaq Audio Zaquencer MIDI Sequencer

This Zaquencer is fully functional and in good condition.

The Zaquencer is a Behringer BCR2000 with an alternate firmware installed that allows for the device to function as a powerful, standalone midi sequencer.

• native, standalone analog-style step sequencer for BCR2000

• no Computer or PC software needed for operation (except for the initial firmware upload)

• 32 steps or less, depending on loop

• 4 tracks, switchable between (mono/polyphone) notetrack or drumtrack

• 2 independent MIDI-Controls (ProgramChange, Aftertouch, PitchBend, CCs) per track

• using the flash storage to save all global params and up to 192 patterns

• each consisting of 4 tracks

• organised in 12 banks of 16 patterns each

• copy patterns

• copy single tracks between patterns

• pattern chain to play up to all 192 patterns in a row

• Internal/External Clock source:

• can send/receive MIDI clock (or both, with MIDI Through setting enabled)


Per Step Parameters:

• Note Pitch
• Note Velocity
• Note Mute
• Note Delay (Time offset; not a delay in the usual sense)
• Note Length
• MIDI-Control Alpha Value
• MIDI-Control Beta Value
• WaveGenerator for above parameters with adjustable gain, range, offset
• simple Chord function: choose from predefined chords
• StepSkip: remove step from sequence

Per Track Parameters

• Loop Start
• Loop Length
• Loop Start Offset
• Clock Divider
• Shuffle Even+Odd Step
• Direction Forward/Backward/PingPong/Random

Global Parameters

• BPM (for internal clock)
• Internal/External clock
• Clock output A/B
• MIDI Through A/B, filtered A/B
• visualization options for the Note Pitch parameter (note name/number in LCD; all/octave on encoder ring)
• Global Musical Scale with Scale Type (Major/Minor etc.) and Scale base parameters
• one User Scale that can be freely edited and is stored in flash with global parameters
• Transpose enable (transpose output with incoming note)
• Trigger pattern load with incoming MIDI CC
• Adjust quantization of Sequence Reset and pattern switching
• choice if Mixer Mutes are affected by quantization
• adjusting track mode: each of the 4 tracks can be either (mono/polyphone) note- or drumtrack
• MIDI Out A/B per Track
• MIDI Channel per Track
• MIDI Control Alpha Type per Track
• MIDI Control Beta Type per Track
• Midi Control types can be Program Change, Channel Pressure (Aftertouch), Pitch Bend or Control Change 0-127
• Global Play/Stop
• Global Sequence Reset
• In drum mode, control 16 independent instruments (MIDI notes freely assignable per track and stored in flash with global parameters)
• Instrument Select“ view for programming drums with TR style interface
• tap writing drums/single notes, either with BCR´s buttons or connected MIDI keyboard
• Mixer view for muting druminstruments and tracks and for triggering „note repeat“ feature
