The SPL 2Control Monitor Controller provides clear natural headphone monitoring in a compact controller. Further it features a Crossfeed function that makes the playback headphones sound like the audio is being played back on speakers. Thus your mixes on headphone translate better to speaker playback.

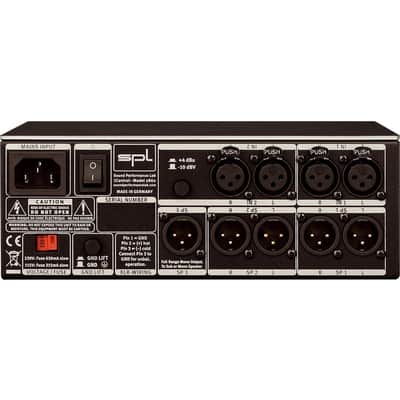

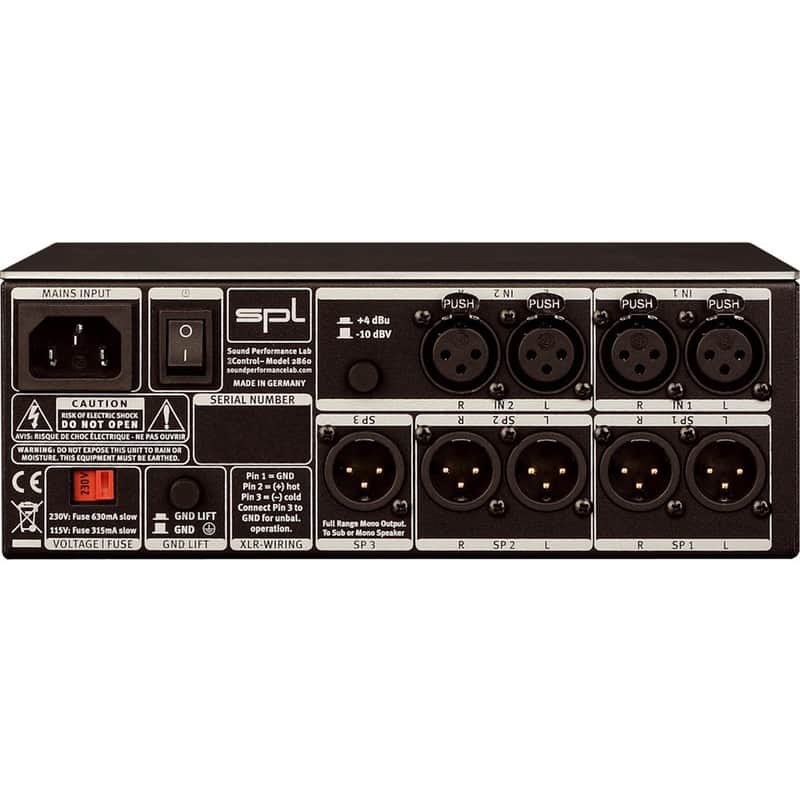

The SPL 2Control Monitor Controller combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Control near-field and full-range monitors as well as headphone monitoring for two listeners in one central device. The 2Control allows for connection of two sources, two stereo speaker sets and two headphones. Each of the three speaker outputs (2 stereo sets, 1 x mono speaker) is driven by its own balancing stage. Each headphone output is supplied by a separate amplifier to allow for completely independent operation of two headphones. Volume is controlled with a high-quality potentiometer (ALPS RK27 "Big Blue") and active electronics. In contrast to passive circuits, the 2Control's active design does not influence impedances when levels change. Altering impedances would again have negative effects on the frequency response, so the 2Control's active design guarantees linearity.
SPL 2Control Monitor Controller Features
- Clean and natural sounding
- Compact design
- Crossfeed speaker emulation
- Wide frequency range
SPL 2Control Monitor Controller Specifications
- Inputs & Outputs
- Electronically balanced instrumentation amplifiers
- Input sockets: XLR
- Output sockets: XLR, Stereo TRS
- Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
- Input impedance: 22kOhm
- Output impedance: 75Ohm/Headphones: 22Ohm
- Max. input level: 21,3dBu
- Max. output level: 21,3dBu
- Volume control range: -80dB to +6,6dB
- Headphones: -65dB to +14,9dB
- Measurements
- Frequency range: 10Hz to 100kHz (-3dB)
- CMRR: -60dB (@1kHz, 0dBu input level, unity gain)
- THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
- Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
- Crosstalk L/R: -70dB (@1kHz)
- Dynamic range: 116dB
- Power consumption: ca. 25W
- Power Supply
- Features: Toroidal transformer with voltage selector
- Fuses (slow blow): 230V/50Hz: 315mA, 120V/60Hz: 630mA
- Dimensions and Weight
- Housing (BxHxT): 215x80x220mm
- Depth w. controls & sockets: 245mm
- Height with feet: 95mm
- Front height w. opened feet: 126mm
- Weight: 2,1kg
SPL 2Control Monitor Controller Includes
- 2Control Monitoring Controller
- Power Cable
- Manual
- 2 year warranty
