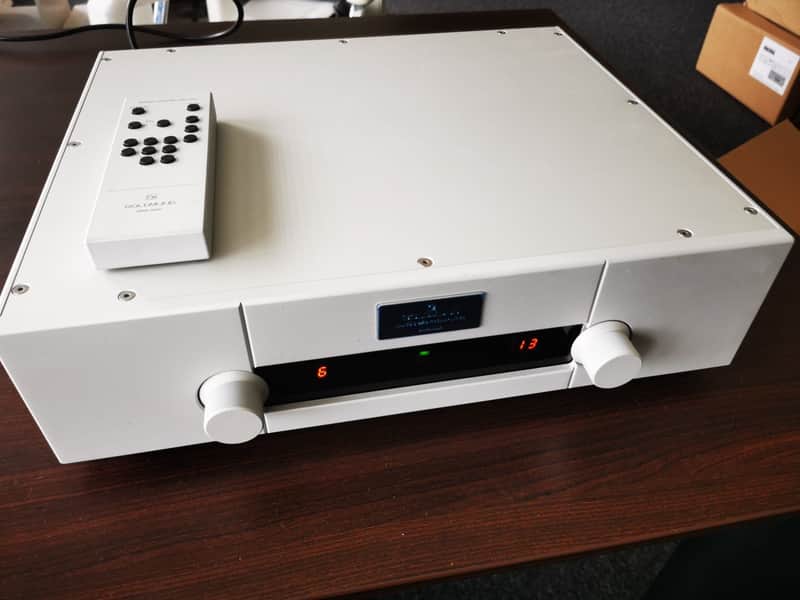

GOLDMUND MIMESIS 27.8 Preamplifier with DAC ALIZÉ

Mimesis 27.8 - Preamplifier

SPECIFICATIONS

INPUTS

Input impedance: 50 kOhms.

Nominal input level: 2.25 V RMS.

Maximum input level (unbalanced): 3.6 V RMS.

OUTPUTS

Output impedance: 75 Ohms.

Maximum output level (unbalanced): 3.6 V RMS.

ANALOG INPUTS

4 x RCA analog input (Left & Right).

DIGITAL INPUTS

1 x Digital S/PDIF coaxial RCA 75 Ohms or Toslink Optical.

1 x Digital S/PDIF coaxial RCA 75.

1 x USB AUDIO (up to 96 kHz /24 bits).

NOISE

Signal-to noise ratio: > 120 dB at 0 dBFS.

FREQUENCY RESPONSE

These values for any level to maximum output level:

+/- 0.1 dB, 10 Hz to 20 kHz.

+/- 1.5 dB, 10 Hz to 100 kHz.

+/- 3 dB, 10 Hz to 200 kHz.

DISTORTION

With 1 V RMS output level, 80 KHz measurement bandwidth, 600 Ohms termination impedance

THD unbalanced in to unbalanced out < 0.005% (-90 dB) flat with frequency.

IMD unbalanced in to unbalanced out < 0.002% (-80 dB).

REAR PANEL

2 x pair of RCA connector (Left & Right).

1 x pair XLR balanced connector (Left & Right).

1 x USB Audio connector.

ON/OFF power switch key.

Voltage input selector.

RS232 Command connector.

OPERATING TEMPERATURE

Room temperature: -30 to +40 degrees Celsius (-22 to +104 degrees Fahrenheit).

Internal temperature: +45 to +65 degrees Celsius (+113 to +149 degrees Fahrenheit).

POWER

Nominal line voltage: 117 or 234 V (switchable).

Fuse 2.5A for 110V and 220V.

Input voltage range: +/- 10 %.

SIZE & WEIGHT

44 W x 43 D x 13 H (cm).

12 kg.
