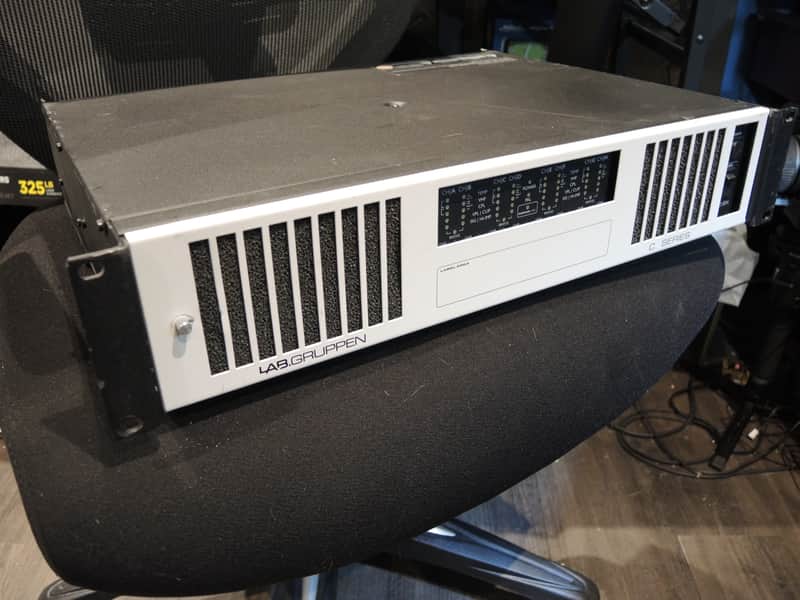

Lab Gruppen C 10:8X, 8 x 125W (eight channels)

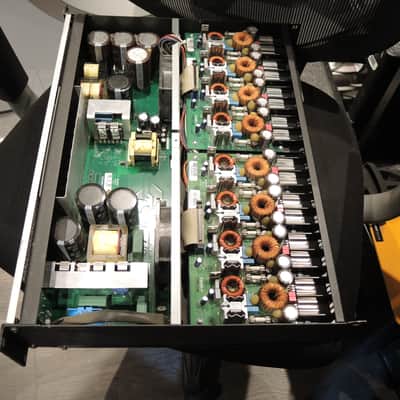

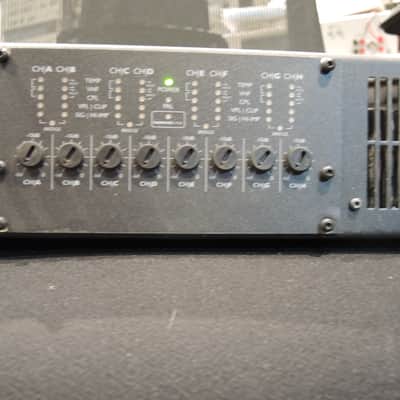

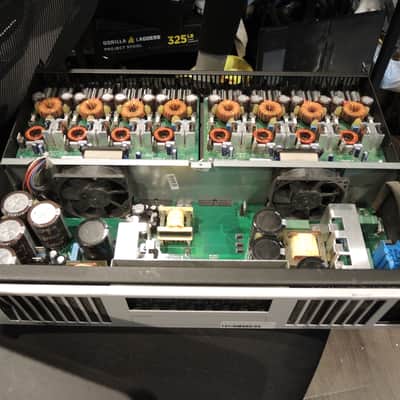

A fully tested, fully functional Lab.Gruppen amp. I only removed the top cover to show that the amp is untouched. The front fascia is detachable to give you access to the level pots. I have tested each channel individually and all work great, check out the YouTube video (has six parts, only part 6 has actually speakers connected).

The C 10:8X is an Eight-Channel Amplifier that Delivers 8 × 125 W * at 4 OHMS, 8 OHMS, 16 OHMS or 70 VRMS; 250 W at 100 VRMS is Available in Bridge Mode.

SPECS
The C 10:8X is an Eight-Channel Amplifier that
Delivers 8 × 125 W * at 4 OHMS, 8 OHMS, 16 OHMS or 70 VRMS;
250 W at 100 VRMS is Available in Bridge Mode.

This amplifier is uniquely capable of adapting to a wide variety of demanding load conditions. Each channel has an individually configurable Voltage Peak Limiter (VPL™), which allows the output to be optimized for any loudspeaker load – whether a single large subwoofer or a series of small 70 V loudspeakers (100 V in bridge mode). VPL works in combination with adjustable input gain (adjustable in 4-channel blocks) to achieve maximum headroom regardless of input levels or output impedances. Additionally a 35 Hz high pass filter may be inserted in each 4-channel section.

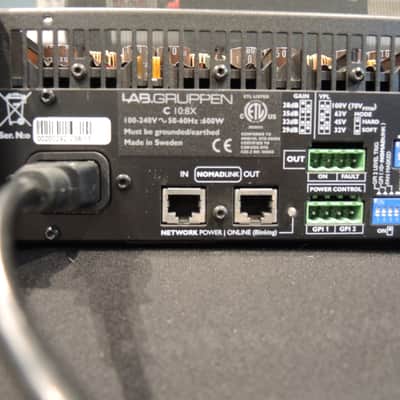

Every C Series amplifier is ready for the NomadLink * network right out of the box. With NomadLink, key amplifier parameters are displayed via DeviceControl software, and remote control of channel mutes and power on/off is under network control.

GPIO facilities – provided exclusively on C…X models – allow access to key amplifier functions such as power on/off and fault reporting.

* Maximum continuous output power, all 8 channels driven, VPL set at 100 V and Gain set at 32 dB.
