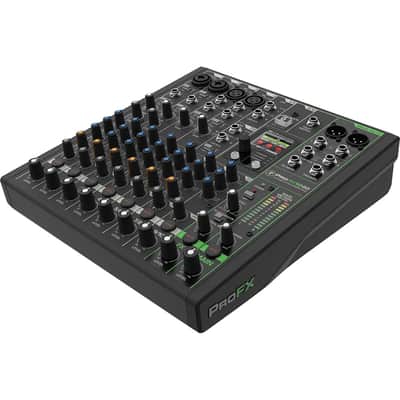

Mackie ProFX10GO 10-Channel Battery-Powered Mixer

Mackie ProFX10 GO is a professional analog mixer and USB-C audio interface that can run on a rechargeable, swappable battery for up to 8 hours, so you’re always ready to mix on the GO. Unplug and never miss a beat. Take advantage of the incredibly low-noise, high-headroom performance of award-winning Onyx preamps, tone-shaping EQ, analog compression, GigFX+ effects and three USB recording modes. Connect your phone via Bluetooth to play music, perform over backing tracks or do a live stream. ProFX10 GO gives you the zero-compromise Mackie analog mixing experience you need for any remote gig or high-stakes event.

Product Features:

Swappable, Rechargeable GB10 Battery

Includes GB-10 rechargeable battery for up to 8 hours of mixing and recording, miles from a power outlet

The battery recharges whenever the mixer is plugged into power, or you can recharge it outside the unit, so it’s always good to GO

Battery also serves as an excellent backup when you are short on power outlets, or working a shady venue with questionable power

When you’re out of juice, swap out the battery with a spare (sold separately) for double the battery life

All the bells and whistles of a professional Mackie mixer, including Onyx preamps, no longer chained to the wall

A new level of premium battery-powered mixing for mobile DJs, remote event producers or venues with limited power

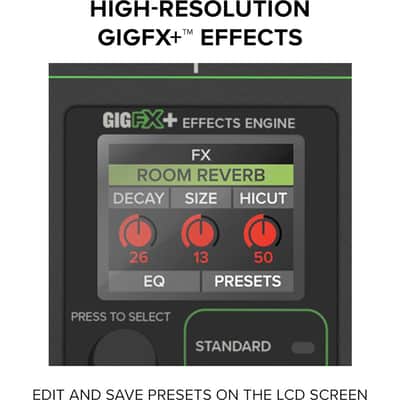

Customizable GigFX+ Effects

High-resolution GigFX+ effects engine includes reverbs, delays, choruses and more

Full-color LCD display for editing and saving effects presets

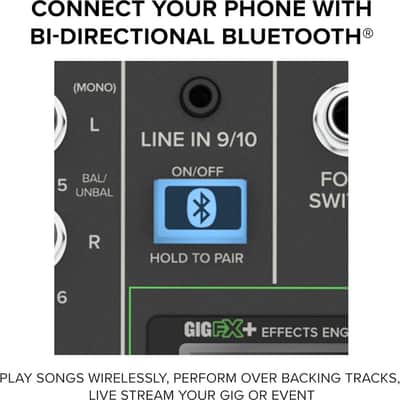

Bi-directional Bluetooth

Connect your phone or tablet via the dedicated Bluetooth channel

Send and receive audio wirelessly

Play songs or perform over backing tracks

Stream your gig or event live on Twitch, YouTube or Instagram with your phone

Mix Minus lets you take phone calls through the mixer without the caller hearing themselves

USB Recording Modes

24-bit / 192 kHz 2x4 USB-C audio interface

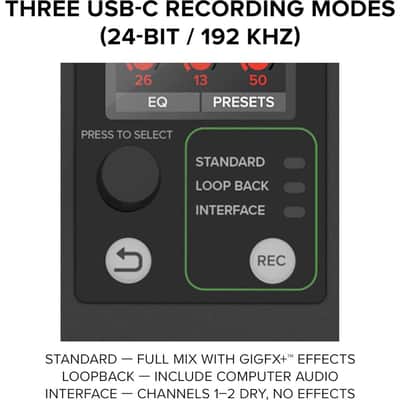

Three USB recording modes: Standard (include FX), Loopback (include computer audio) and Interface (channels 1-2 dry)

Dedicated USB 1-2 playback with blend control for monitoring computer output and a latency-free feed from the mixer

Separate USB 3-4 return on channel 7/8, perfect for playing software instruments and overdubbing

Waveform OEM recording software included

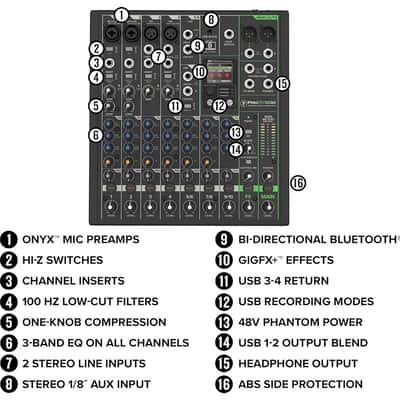

Analog Mixing Essentials

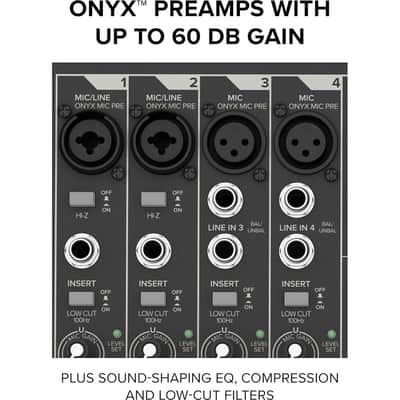

4 Onyx mic preamps with up to 60 dB of gain on channels 1 - 4

Hi-Z switches on channels 1 and 2 for direct connection of instruments

100 Hz low-cut filters

3-band EQ on all channels

One-knob compression on channels 1 and 2

Versatile Connectivity

XLR/TRS combo inputs on channels 1 and 2

Separate XLR and TRS inputs on channels 3 and 4

TRS channel inserts on channels 1-4

Stereo 1/4" TRS line inputs on channels 5/6 and 7/8

Stereo 1/8" line input on channel 9/10

1/4" footswitch input

1/4" TRS control room outputs for powered speakers

1/4" headphone output with independent level control

Stereo XLR and 1/4" TRS main outputs

1/4" TRS output for aux send

Product Specifications:

Noise Characteristics

Equivalent Input Noise (EIN) (150 Ω Source Impedance, 20Hz to 20kHz):

Mic In to Insert Send Out, Max Gain: -126 dBu

Residual Output Noise:

All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu

All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu

Frequency Response

Mic Input to Any Output (Gain at Unity, +0 dB/-1 dB): 20Hz to 30kHz

Distortion (THD+N) (22Hz to 80kHz bandwidth)

Mic In to Main Out (+4 dBu output): <0.02%

Attenuation and Crosstalk

Adjacent Inputs at 1kHz: -90 dB

Inputs to Outputs at 1kHz: -80 dB

Fader Off at 1kHz: -75 dB

Mute Switch at 1 kHz: -90 dB

Common Mode Rejection Ratio (CMRR)

Mic In to Main Out, Max Gain, 1kHz: 70 dB

Maximum Levels

All Inputs: +22 dBu

Main Mix XLR: +28 dBu

All Other Outputs: +22 dBu

Impedances

Mic In: 3.3 kΩ

Channel Insert Return: 10 kΩ

All Other Inputs: >/= 20 kΩ

Phones Out: 25 Ω

All Other Outputs:

120 Ω Unbalanced

240 Ω Balanced

Equalization

Low: +/-15 dB at 80Hz

Mid: +/-15 dB at 2.5kHz

High: +/-15 dB at 12kHz

Low Cut Filter: 18 dB/octave at 100Hz

Maximum Voltage Gain (EQ Flat)

Mic Input Channel to:

Insert Output: 60 dB

1/4" Main Output: 80 dB

XLR Main Output: 86 dB

Mono Line Input Channel to:

Insert Output: 40 dB

1/4" Main Output: 60 dB

XLR Main Output: 66 dB

Stereo Line Input Channel to:

1/4" Main Output: 20 dB

XLR Main Output: 26 dB

1/8" Input to:

1/4" Main Output: 40 dB

XLR Main Output: 46 dB

USB Input to:

XLR Main Output: 46 dB

Digital Effects

Number of Presets: 12

Meters

Main L/R Mix - Two Columns of 12 Segments Each: 0L, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30

USB

Format: USB 2.0

I/O: 1 Stereo Input, 2 Stereo Outputs

A/D/A: 24-bit, 44.1kHz, 48kHz, 96kHz, 192kHz

Phantom Power

48 VDC to all Mic channels simultaneously

Power Requirements

Power Connector:

12V 2A class I hard-wired wall mount adapter (output)

100VAC-240VAC, 50-60Hz, 0.8A (Input)

Battery Type: Lithium ion

Battery Technology: 11.1V, 5200mAH 57.72Wh, 24V

Battery Life: Up to 8 hours

Operating Temperature: 0-40 degrees C, 32-104 degrees F

Physical Properties (Product)

Height: 3.8 in / 97 mm

Width: 10.6 in / 269 mm

Depth: 11.5 in / 292 mm

Weight: 5.9 lb / 2.7 kg

Physical Properties (Packaged Product)

Height: 4.5 in / 114 mm

Width: 12.7 in / 323 mm

Depth: 15.0 in / 381 mm

Weight: 6.4 lb / 2.9 kg
