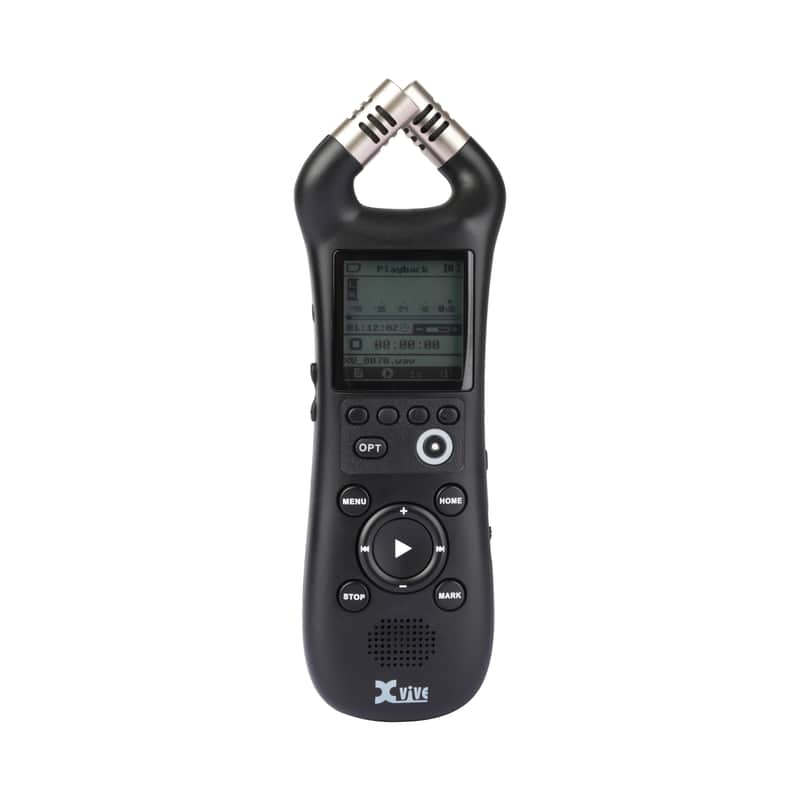

Xvive XV1-R Portable Stereo Recorder

HANDHELD CONVENIENCE

The XV1-R is compact and light, so you can carry it with you anywhere—to gigs, rehearsals, meetings, concerts, or a songwriting retreat!

• Intuitive menus with record-ready factory settings to make recording easy
• Supports up to 96 kHz audio in 24-bit int or 32-bit float WAV, or AAC-LC / HE-AAC lossy formats
• USB Type-C port for data exchange to/from computer; also for use of XV1-R as an audio interface
• Stereo 1/8" (3.5 mm) Mic/Line In jack
• Stereo 1/8" (3.5 mm) Line Out jack with dedicated volume control
• Auto-Record, Pre-Record and Self-Timer functions
• Slate Tone generator for filmmaking use with DSLR/video cameras
• Runs on 2x AA alkaline, 1.5V lithium or NiMH rechargeable batteries, or USB power
• Records input levels up to 130 dB SPL
• Playback Speed Control
• Records directly to SD, SDHC and SDVC cards up to 128 GB
• About 12 hours of operation with alkaline batteries, depending on conditions

TIME-SAVING RECORDING PROFILES

XV1-R offers a selection of perfectly tweaked presets for common recording scenarios: “Production” for pristine music and media capture; “General” for high quality ambient, voice or music recordings; “Meeting”, optimized for meetings and lectures; “Voice Memo” for minimum file size speech; and “Concert”, transparent encoding of music and media with auto level enabled.

TAKE CONTROL

The front of the XV1-R deploys an intuitive layout of controls, which users can master quickly and easily.

STELLAR STEREO

The recorder’s pair of high-quality custom X/Y configured microphones handle a maximum SPL of 130 db.

ONBOARD EFFECTS

Onboard effects help you capture audio appropriately for each situation. Low cut allows you to remove rumble from the sound, Gate filters out background noise, Compressor evens out the spikes in volume, and Limiter prevents the loudest sounds from distorting and clipping.

TRIPOD MOUNT SOCKET

A socket on the underside of the unit enables you to attach the recorder to tripods and DSLR cameras, expanding your options for placement of the XV1-R during recording.

GOOD MEMORY

XV1-R can record on a range of SD and MicroSD cards: MicroSD (up to 2 GB), SDHC (up to 32 GB), and SDXC (up to 128 GB).

OVERDUB

A handy Overdub features allows you to record on top of what you’ve already recorded. This allows you to add a harmony, add a commentary, or even create several layers to demo a song!

AUDIO FOR VIDEO

The XV1-R can be mounted on top of a DSLR and used as a high-quality stereo sound recording device for video. Conveniently, the unit can generate slate tones which can later be used to accurately sync the audio and video in editing.

ON-BOARD SPEAKER

The on-board speaker is handy for moments when you don’t have headphones or earphones nearby, or want to check or identify recordings.

Specifications

• SUPPORTED CARDS: MicroSD to 2GB, SDHC to 32GB, SDXC to 128GB
• INPUTS: Mic (130db SPL max); Mic/Line In (3.5mm, 3.1V plug-in power, Tip: L, Ring: R, Sleeve: ground)
• OUTPUT: Line/Headphone stereo 3.5 mm jack
• WAV SAMPLE RATES: 44.1 kHz, 48 kHz or 96 kHz sample rate, mono or stereo
• WAV FORMATS: WAVF32 (32-bit float); WAV24 (24-bit PCM)
• WAV SIZE LIMIT: 4GB file size limit. Longer recordings are split and will created multiple files
• AAC CONTAINER AND SAMPLE RATES: M4A container; 24 kHz or 48 kHz sample rate, Mono or Stereo
• AAC FORMATS: HE-AAC (MPEG-4 HE-AACv1 for mono, MPEG-4 HE-AACv2 for stereo); AAC-LBR, AAC-MBR, AAC-HBR
• AAC RECODING TIME LIMIT: 12 hours
• BATTERY LIFE: Alkaline: approx. 12 hours, depending on conditions
• PLAYBACK: Mono or stereo
• SUPPORTED SAMPLE RATES: 24, 44.1, 48, 88.2, 96 kHz
• USB CONNECTION: USB-C, USB 2.0 high speed (Mass Storage CLass, USB Audio Class 2.0, DFU Class)
• POWER: 2xAA (Alkaline or NiMH recommended) or USB bus
