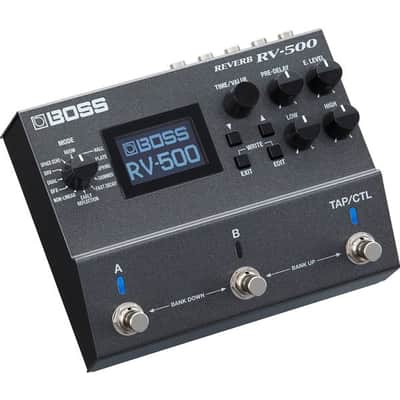

Boss RV-500 Reverb
Interstellar Toolbox

Journey to new dimensions of time and space with the RV-500, the most powerful and versatile reverb processor BOSS has ever produced. This multifaceted creation machine features class-defying 32-bit AD/DA along with 32-bit/96 kHz floating point processing and immense programmability, putting pro-level studio reverb and more at your feet.

Twelve modes and 21 newly developed reverb algorithms deliver a huge range of textures, from complementary ambience to deep, immersive sonic atmospheres. And thanks to the RV-500s high-octane DSP, you can access a full-featured digital delay along with every reverb patch, and even run two reverb patches at once! Adding in MIDI I/O, support for external footswitch/expression control, and USB for connection to the free RV-500 Editor/Librarian software, the RV-500 is simply the most advanced reverb pedal available, bar none.

Features

• Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• 12 modes with 21 reverb types, all with deep editing parameters
• Includes a wide range of reverb types from standard to advanced, plus Roland classics such as the SRV-2000 Reverb and RE-201 Space Echo
• A/B Simul mode allows you to use two reverb patches at once
• Selectable carryover function allows reverb tails to continue with patch change or effect bypass
• Powerful DSP provides independent digital delay with modulation along with each reverb patch
• Graphic LCD and intensive real-time control options
• 297 onboard patch memories and hands-on controls
• Selectable buffered-bypass or true-bypass operation
• MIDI I/O for interfacing with MIDI control devices
• USB-MIDI for connecting to the RV-500 Editor/Librarian or a DAW
• Runs on four AA-size batteries or PSA-series AC adapter

Specifications Sampling Frequency 96 kHz AD/DA Conversion 32 bits Processing 32-bit floating point Modes 12 modes
ROOM
HALL
PLATE
SPRING
SHIMMER
FAST DECAY
EARLY REFLECTION
NON-LINEAR
SFX
DUAL
SRV
SPACE ECHO Memory 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C]) Nominal Input Level INPUT A/MONO, B: -10 dBu Maximum Input Level INPUT A/MONO, B: +8 dBu Input Impedance INPUT A/MONO, B: 1 M ohm Nominal Output Level OUTPUT A/MONO, B: -10 dBu Maximum Output Level OUTPUT A/MONO, B: +8 dBu Output Impedance OUTPUT A/MONO, B: 2 k ohms Recommended Load Impedance OUTPUT A/MONO, B: 20 k ohms or greater Bypass Buffered bypass or True bypass (with relays) Controls A switch, B switch, TAP/CTL switch
DOWN button, UP button, EXIT button, EDIT button

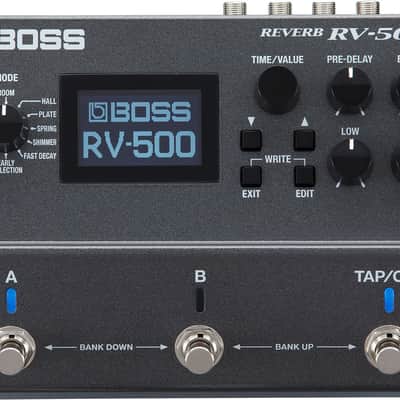

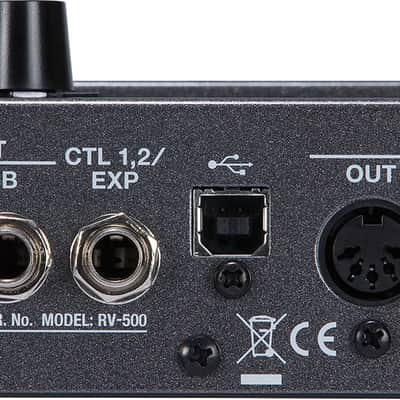

MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob Display Graphic LCD (128 x 64 dots, backlit LCD) Connectors INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
MIDI (IN, OUT) connectors
DC IN jack Power Supply Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately) Current Draw 225 mA Expected battery life under continuous use Alkaline: Approx. 4.5 hours
* These figures will vary depending on the actual conditions of use. Accessories Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4 Options (sold separately) AC adaptor: PSA-S series
Footswitch: FS-5U, FS-5L
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
