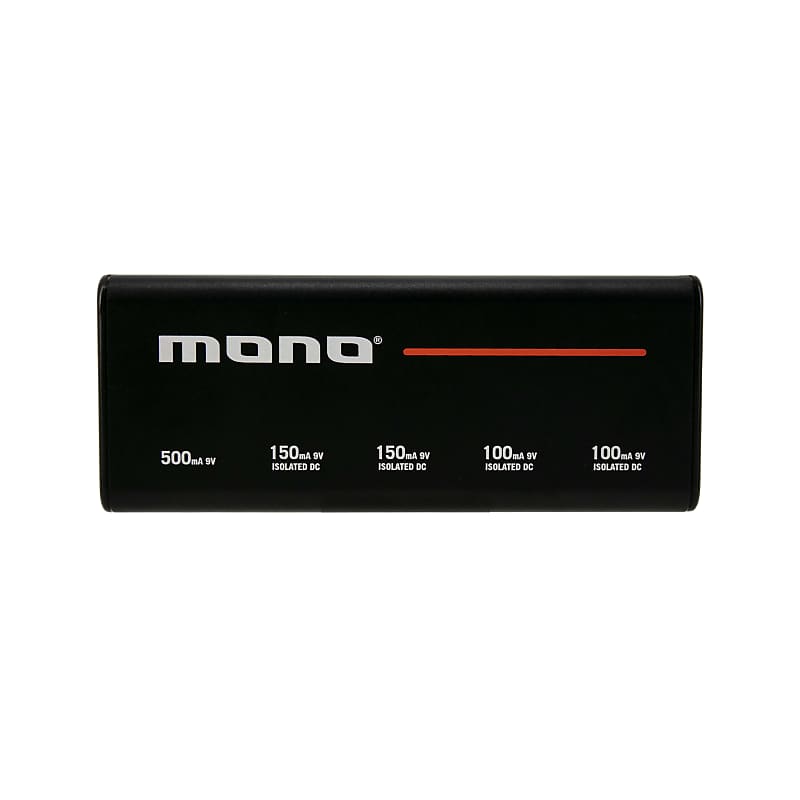

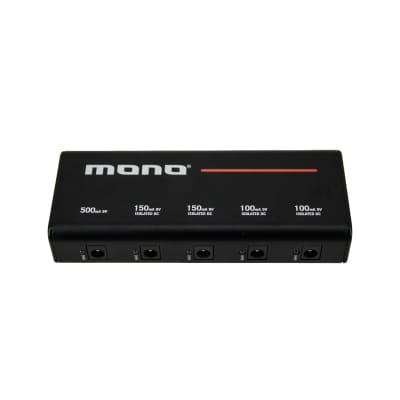

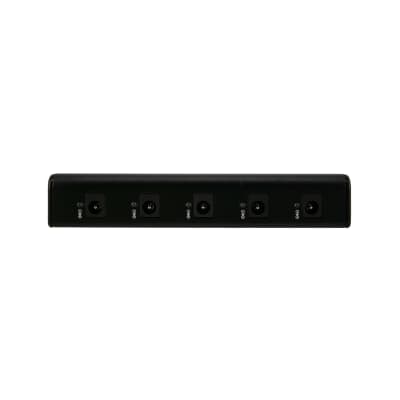

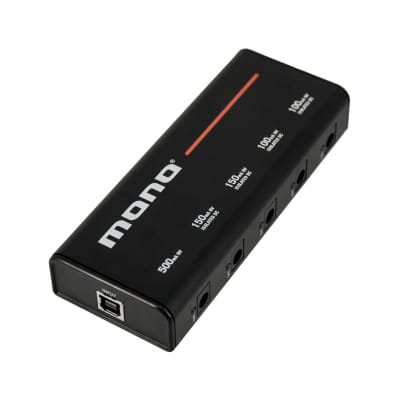

The MONO Power Supply, Small is a USB-powered, ultra-low noise unit built for small pedalboards. You can connect up to 5 pedals and power the unit with any USB-A wall adapter or go mains-free and plug into a power bank. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1” depth, will fit underneath the shallowest of pedalboards. When you’re ready to step up to a bigger board, you can simply link the MONO Power Supply, Small, to a Power Supply, Medium or Large and power up to 15 pedals.

FEATURES

THOUGHTFULLY DESIGNED

MONO Power Supply features individual orange status LEDs at each output, soft-touch cable barrels, and sleek, curved edges, making it as aesthetically pleasing as it is functional. Pair it with an IEC plug and it is universally compatible with any power source worldwide.

RELIABLE AND EFFICIENT

The MONO Power Supply provides reliable power to your pedals with features like short circuit, overload, and thermal protection. Its input filter and multi-stage output filters ensure an extremely low noise floor, all while maintaining energy-efficient operation.

INCLUDES MOUNTING KIT

Each MONO Power Supply, Small comes with both a lightweight and rugged mounting kit as well a hook and loop solution for connecting the unit to a pedalboard.

WHAT'S INCLUDED

• MONO Power Supply, Small
• 2.1mm x 5.5mm Power Cable Short (x5)
• 3-way Daisy Chain
• USB-A to USB-B Cable
• MONO Power Supply Mounting Brackets (x2)
• M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
• Hook-and-Loop Tape

TECHNICAL SPECIFICATIONS

Input: 5V 2.1A, USB-B

Outputs: 9V DC 150mA, center negative (x2) | 9V DC 100mA, center negative (x2) | 9V DC 500mA, center negative (x1)

DIMENSIONS

Size: 5.51" x 2.20" x 0.98" (140 mm x 56 mm x 25 mm)
Weight: 5.36 oz (152 g)
