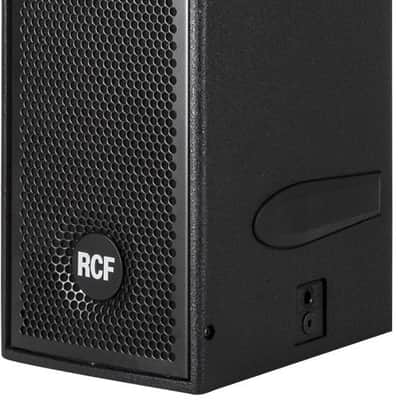

The RCF NXL 24-A is an active column speaker array system with four 6" high power woofers and a 2.5" voice coil compression driver loaded on a 100° x 30° constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.

Features

• 1,400 Watt Class D bi-amplification
• 131 dB SPL Max
• 65 Hz - 20 kHz frequency response
• 4 x 6" Woofers
• 2.5" voice coil RCF Precision C. Driver on a waveguide
• 100° x 30° slightly tilted pattern control
• DSP controlled input section with single or dual EQ preset
• East-to-fly and install with built-in rigging points and pole mount socket

Specifications

Acoustical Specifications

• Frequency Response: 65 Hz - 20000 Hz
• Max SPL @ 1M: 131 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 30°

Transducers

• Compression Driver: 1.4'', 2.5'' v.c
• Woofer: 4 x 6.0'', 1.5'' v.c

Input/Output Section

• Input Signal: bal/unbal
• Input Connectors: XRL, Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ Shape, MIc/Line

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT
• Standard Compliance
• CE Marking: Yes

Physical

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 4 x MB, 4 x quick lock
• Handles: 2 side
• Pole Mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 41.57 inches
• Width: 7.91 inches
• Depth: 10.79 inches
• Weight: 58.2 lbs

Shipping

• Package Height: 12.44 inches
• Package Width: 45.47 inches
• Package Depth: 8.74 inches
• Package Weight: 63.93 lbs
