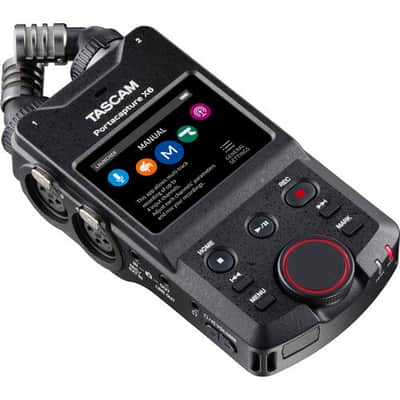

High-Resolution Adaptive Multitrack Recorder Powerful and portable, the Portacapture X6 from TASCAM is the streamlined version of the popular X8, redesigned and scaled back for videographers, podcasters, and content creators working on smaller productions. The compact size of the X6 makes it easy to position for numerous recording applications, while still retaining the ability to record up to six simultaneous tracks at 96 kHz / 32-bit floating point.



The stereo condenser microphone pair can be adjusted for A/B or X/Y configurations, depending on the desired stereo field width, and X6 sports plenty of connectivity, including two XLR input jacks with 24 or 48V phantom power, one 3.5mm stereo aux input with plug-in power, a stereo 3.5mm line output, and a USB-C port with 6x2 audio interface capability, just to name a few. The color touchscreen makes it easy to operate the X6 like an app, with an intuitive and colorful interface, and the recorder can be mounted on cameras and stands via its 1/4" slot for extra versatility. With up to 22 hours max battery life and the ability to take up to 512 GB microSDXC cards, the X6 will keep you creating for as long as your imagination allows, anywhere you want.

App-Like Operation Quickly access your settings and adjustments on the Portacapture X6's large, 2.4-inch color touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs.

Use the Launcher to select from Podcast, Music, Interviews, Field Recording, and 6-track multitrack recording. Start fast, start right, and get exactly what you need.

Fully Connected The Portacapture X6 hosts a range of connections that can handle small to moderate sized productions. Whether used as a high-resolution digital audio interface or an analog field recorder, the X6 delivers quality audio and intuitive operation.

• Two built-in condenser mics with angle adjustment and switchable A/B or X/Y patterns
• Two XLR 3-pin inputs with selectable mic- or line-level operation and 24/48V phantom power
• Extra 3.5mm stereo aux input which supports plug-in power
• 3.5mm stereo line output for sending your mix to external devices and audio systems
• Powerful 3.5mm headphone output, delivering 45mW per channel
• USB-C port for audio interface duties supporting 6 simultaneous inputs and two outputs

Audio for Video Production When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user-saved settings save you countless steps. The X6 has your back with its 96 kHz / 32-bit float recording technology and its ability to capture audio in WAV (BWF) and up to 320 kb/s MP3.

Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot. The X6 gives you a time-code sync and app control options via Bluetooth, allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.

Capture Your Way With its two built-in microphones, the Portacapture X6 is ready to record with a few quick taps. Have your own mics? You can use them thanks to the two included XLR inputs and mix them with the built-in mics for a highly portable four-microphone setup. Record six tracks (four track + two mix) simultaneously and even use the X6 as a 6-in/2-out USB audio interface to connect to your computer.
Control the X6 from Your Phone In those cases where you want to put your audio recorder in one place and operate it from another, the X6 has you covered. With the AK-BT1 Bluetooth adapter (sold separately) it's easy to remote control your X6 wirelessly from your smartphone or tablet. This feature can unlock nearly endless possibilities and make operation more convenient when recording in the field or on-the-go.
Capture Every Bit It would be great if every time you need to capture audio, everything is perfect. Not too loud, not too soft. Of course that is not the reality for most of us. The huge dynamic range and ample headroom of the X6 makes it a reality, allowing your dialog to go from a mumble to a scream with ease.



Even in these extremes, you are expected to capture the sound and deliver a clean result. The 32-bit float point recording technology in the Portacapture X6 gives you a much lower floor and higher ceiling to achieve audio success without distortion.

Ready-to-Publish Audio Anywhere With the Portacapture X6, your audio will be ready to share. Built-in signal processing, including a compressor, limiter, high-pass filter, EQ, and reverb add that studio polish.

Whether you need to tame the wind when recording outside or want to add the ambiance of reverb to your vocals, the X6 has you covered. From smoothing out your input to preventing extreme peaks or eliminating plosives in dialog, you can count on the X6.

Your Virtual Audio Engineer Getting your settings just right for your recording goals can be overwhelming, but not on the Portacapture X6. Select from the pre-perfected settings like Voice, Podcast, Music Recording, ASMR, and Field Recording.

Just select the one that applies and start to record. Each setting was carefully tuned by TASCAM audio engineers for the defined use case. They set it all up, so you don't have to.

TASCAM PORTACAPTURE X6 Specs Portable Recorder Form Factor Handheld Recorder Primary Use Applications Audio-for-Video, Music Recording, Podcasting Number of Tracks 6 (3 Inputs + Stereo Mix) Number of Input Channels 4 (4 x Mono, 1 x Stereo) Maximum Sampling Rate 96 kHz / 32-Bit (PCM) Microphone Built-In Condenser Stereo Pair, A/B, X/Y Configurations Number of Microphone Preamps 2 Preamps Built-In Speaker Yes, 0.4 W Mono Display 2.4" / 6.1 cm Color LCD Touchscreen Memory Card Support microSD, microSDHC, microSDXC (64 MB to 512 GB) Internal Storage None Special Features Remote Control Capable (Remote Available Separately) Recording Audio File Formats BWF, MP3, WAV Sample Rates WAV:
96 kHz (Record/Playback)
MP3:
48 kHz (Record/Playback) Bit Depth Up to 32-Bit (Floating Point) Bit Rates 128 to 320 kb/s (MP3) Signal Processing & FX Compressor, EQ, Limiter, Low-Cut Filter, Reverb Timecode Support Yes Recording Time MP3 320 kb/s:
888 Hrs (Stereo)
WAV 96 MHz/32-Bit:
46 Hrs (Stereo) Included Software None Connectivity Analog I/O 2 x XLR 3-Pin Female Balanced/Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Headphone Output Digital I/O None Phantom Power +24 / 48 V, Selectable On/Off Plug-In Power Yes System Connection 1 x USB-C (Control, I/O) Audio Interface Capability Multi-Track Mobile App Compatible Yes
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility Performance Frequency Response Mic/Line Inputs, WAV:
20 Hz to 20 kHz ±0.3 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz ±0.4 dB (at 96 kHz, JEITA) Max Input Level Mic Inputs:
+2 dBu
Line Inputs:
+24 dBu
1/8" / 3.5 mm Line Inputs:
0 dBV Max Output Level Line Outputs:
+6 dBV Headphone Output Power 45 mW per Channel into 32 Ohms Dynamic Range Mic/Line Inputs:
112 dB Impedance Mic/Line Inputs:
2.2 Kilohms (Mic Level)
9 Kilohms (Line Level)
Line Inputs:
10 Kilohms (Plug-In Power Off)
1.8 Kilohms (Plug-In Power On)
Line Outputs:
210 Ohms THD+N Mic Inputs:
0.006%
Line Inputs:
0.008% EIN -125 dBu Power Power Options Battery, USB Bus Power, AC/DC Power Adapter Battery Type 2 x AA (Included) Approximate Battery Life WAV 44.1 kHz/24-Bit:
13.5 Hours (AA Alkaline, Phantom Off, Recording, Stamina Mode, Built-In Mic)
5.5 Hours (AA Alkaline, All Channels, Phantom On, Recording, Built-In Mic)
11 Hours (AA NiMH, Phantom Off, Recording, Stamina Mode, Built-In Mic)
5.5 Hours (AA NiMH, All Channels, Phantom On, Recording, Built-In Mic)
22 Hours (AA Lithium-Ion, Phantom Off, Recording, Stamina Mode, Built-In Mic)
11.5 Hours (AA Lithium-Ion, All Channels, Phantom On, Recording, Built-In Mic) AC/DC Power Adapter VDC Not Included Physical Included Accessories Batteries Mounting Options 1/4"-20 Female (Bottom) Operating Temperature 32 to 104°F / 0 to 40°C Dimensions 3 x 6.9 x 1.5" / 7.5 x 17.4 x 3.7 cm Weight 12.9 oz / 365 g (with Batteries) Packaging Info Package Weight 1.195 lb Box Dimensions (LxWxH) 8.6 x 5.2 x 2.7"
