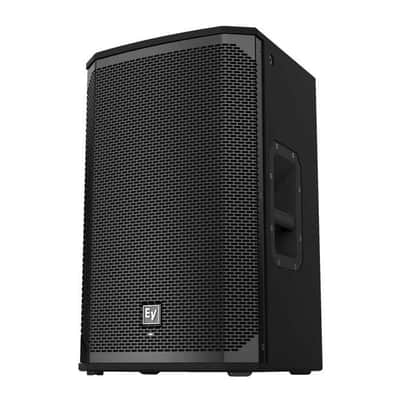

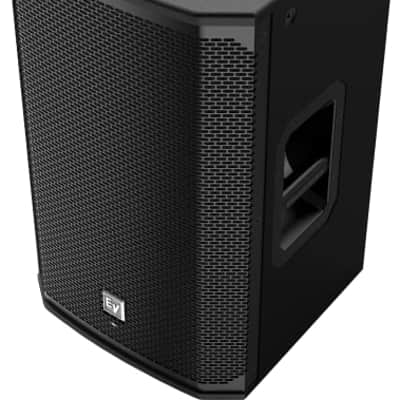

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Features:

• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications:

• Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• Crossover Frequency 1.7 k Hz
• Enclosure Material 15 mm, plywood with EVCoat
• Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
• Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
• Grill 18 AWG steel with powdercoat
• HF Transducer DH-1M 1-inch titanium compression driver
• LF Transducer EVS-12M 300 mm (12 in)
• Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• Power Consumption 1.8 A Current rating is 1/8 power
• Power Rating 1500 W
• Shipping Weight 22.9 kg (50.49 lbs)
• Suspension (8) M10 threaded mounting points
• Height 14RU 607 mm (23.9")
• Width 375 mm (14.76")
• Depth 356 mm (14.02")
• Weight Net 18.8 kg (41.45 lbs)
