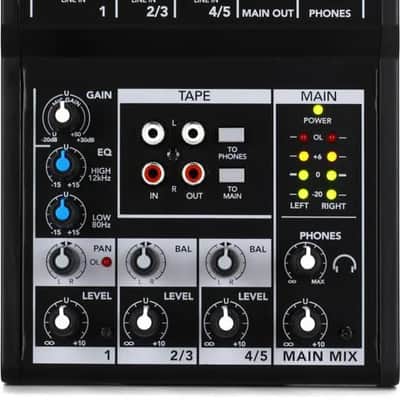

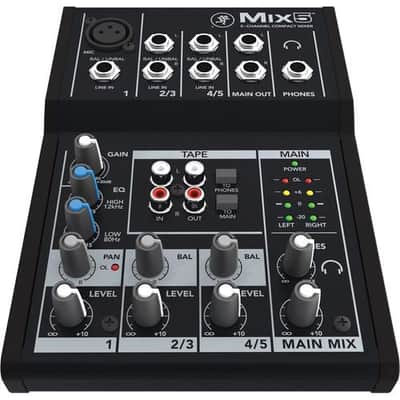

Mackie MIX5 5-Channel Compact Mixer
This seller has not set a shipping cost for Estonia. Please contact them to ask about shipping.
Our users rate Reverb
Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.
Mackie MIX5 Overview
The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.
- Dedicated stereo RCA inputs/outputs for playback or recording
- Headphone and stereo control room outputs
- Rugged, reliable design built to last
- Compact and portable
All outputs, master levels and channel levels off –100 dBu
All outputs, master levels unity, all channel levels off –90 dBu
All outputs, master levels unity, 1 channel level unity –85 dBu
THD+N (20 Hz – 30 kHz bandwidth)Mic input to main output <0.25% @ +4 dBu output
Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz (-85 dB)
Main mix off @1 kHz (-75 dB)
Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain) Common Mode Rejection Ratio 1 kHz better than –70 dB, (mic in to insert send out, max gain) Impedance Mic In: 2 kOhmsAll Other Inputs: 10 kOhms or greater
Tape Out : 1 kOhms
Phones: 22 ohms
All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
Maximum Level Mic Inputs (XLR): +19 dBuAux Return In: +16 dBu [Mix 8]
All Other Inputs: +21 dBu
All Outputs: +21 dBu
Equalization High Shelving: ±15 dB @ 12 kHzLow Shelving: ±15 dB @ 80 Hz
Power Requirements Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]
Output: 18 VAC, 600 mA
Dimensions 1.7 x 5.5 x 7.7" (43 x 140 x 196 mm) Weight 1.4 lb (0.6 kg)This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Electronics |
|
| Format |
|
| Number of Headphone Outputs |
|
| Number of MIDI Outputs |
|
| Number of MIDI Inputs |
|
| Number of Digital Outputs |
|
| Number of Digital Inputs |
|
| Number of Analog Outputs |
|
| Number of Analog Inputs |
|
| Number of Channels |
|
