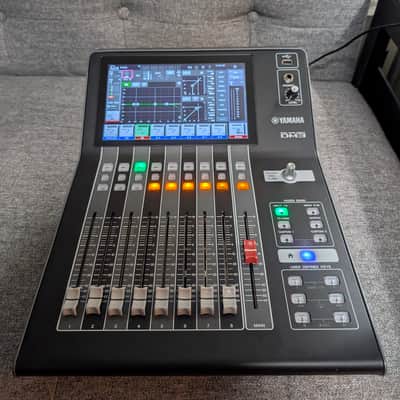

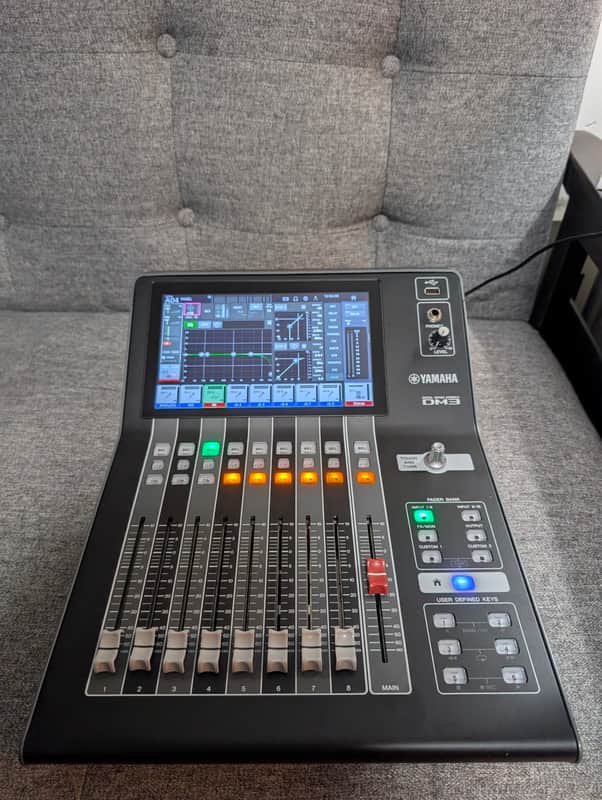

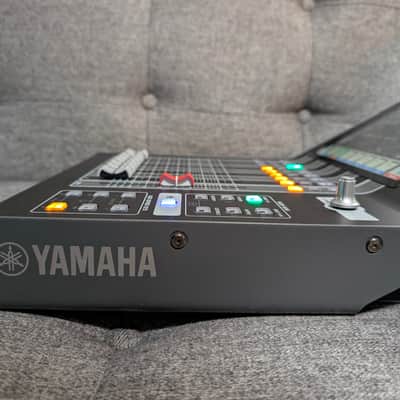

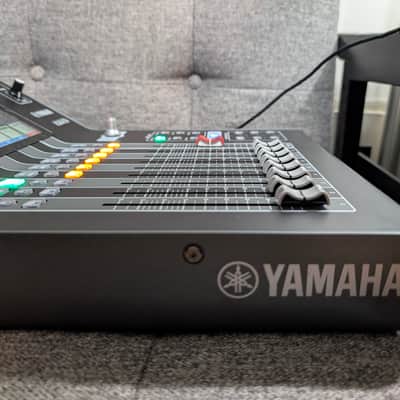

Yamaha DM3 Digital Mixing Console

Kept indoors in a church environment and never transported. In excellent condition and works flawlessly. Comes with the official rackmount kit included ($122 CAD / $89 USD retail value).


Also available: Yamaha Tio1608-D2 stage box. Comes complete with a Gator 3U rack case and a 100 ft Ethernet cable at no additional cost.
https://reverb.com/ca/item/101541661-yamaha-tio1608-d2-16-channel-dante-input-interface-2015-present-black


DM3 Specifications


Mixing Capacity
Input Channels: 16 mono + 1 stereo + 2 FX return
Mix Buses: 6
Matrices: 2 (Supports Input to Matrix)
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1

General Specifications

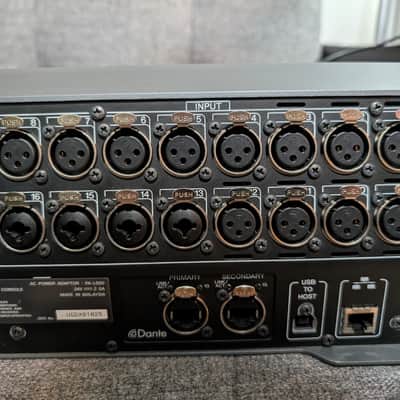

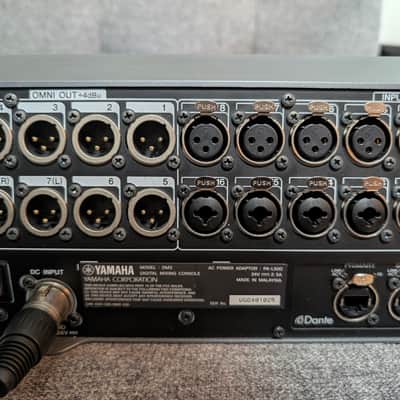

I/O Connectors
Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Output: 8 (XLR)
Dante: 2 (etherCON: Primary/Secondary)
Network: 1 (RJ-45)
USB TO HOST: 1 (USB Type-B, USB2.0)
USB TO DEVICE: 1 (USB Type-A)
Phones: 1 (TRS Phones)
DC: 1 (XLR 4pin, DC power IN)

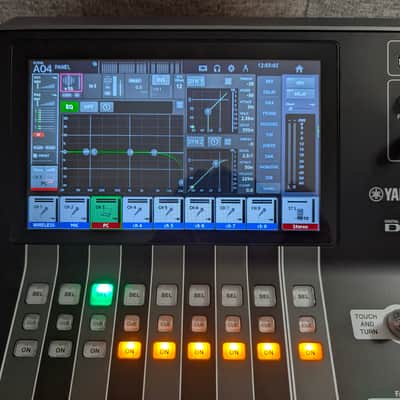

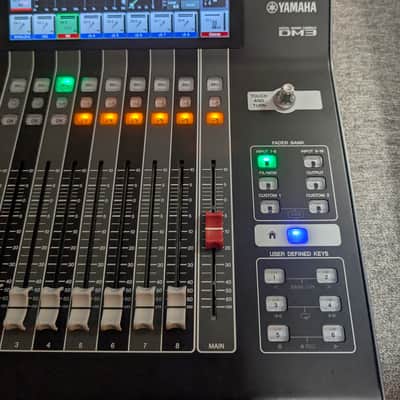

User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder

Recording & Playback
PC/Mac: Recording 18 track, Playback 18 track
USB storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate: 96 kHz / 48 kHz
Signal delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1

Hum & Noise Level
Equivalent input noise: -126 dBu typ., Input Gain= Max.
Residual output noise: -84 dBu, ST main off*2

Dynamic range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3

Listed5 days ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • DM3S 22-Channel Digital Mixer
Categories
Year
  • 2024
