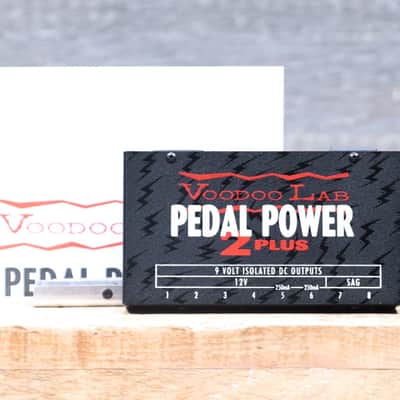

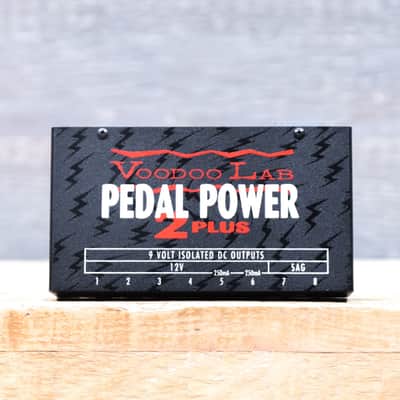

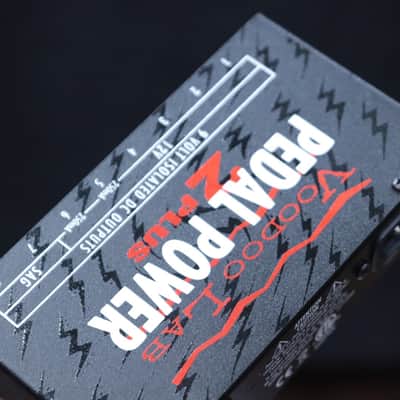

Up for sale a Voodoo Lab Pedal Power 2 Plus 8-Output Isolated Universal Power Supply w/Cables - #20-309797! We are an Authorized Dealer of Voodoo Lab Products! This item is a Used Model in Excellent Cosmetic Condition and in Perfect Working Condition.  On this one, there are some scratches, marks, barely few tiny nicks and few other signs of wear (see 7th to 12th pictures), but really nothing major nothing major. Unit comes with Pedal Cables (see the item description section for details), Pedalboard Mounting Brackets and a Power Cord.

-

VOODOO LAB PEDAL POWER 2 PLUS

Filter, regulate, isolate, and protect!

Pedal Power 2 PLUS does it, and does it well, because any less will degrade your pedal’s performance. Players everywhere upgrade to Pedal Power 2 PLUS because it powers what conventional power supplies can’t. Pedal Power 2 PLUS is hand made in the U.S.A., comes complete with cables and detachable AC power cord.

-

SPECIFICATIONS:

INPUT

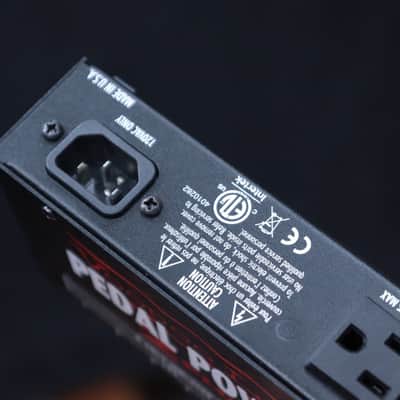

IEC connector:

120V 50/60Hz (North America model)

OUTPUT

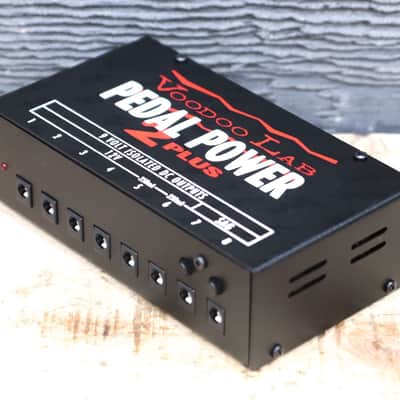

5.5 x 2.1mm barrel connectors - center negative

Short circuit protected

DIP SWITCH: NORMAL

Output -  DC Voltage - Max current

1-4 (ACA) -  9V -  100mA

5-6 (L6) -  9V -  250mA

7-8 (SAG) -  9V  -  100mA

DIP SWITCH: ON

Output -  DC Voltage -  Max current

1-4 (ACA) -  12.3V -  60mA

5-6 (L6) -  14.5V / 12V (unregulated) -  50mA / 200mA+

7-8 (SAG) -  Adjustable 4V - 9V -  100mA

INCLUDED CABLES

Right angle barrel connectors (5)

Straight barrel to right angle barrel connectors (8)

Reverse Polarity 2.5mm Barrel Cable (1)

Power Cord (1)

PHYSICAL

6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm)

Weight: 1.8 lbs / 0.9 kg

SPECIAL

Toroidal power transformer

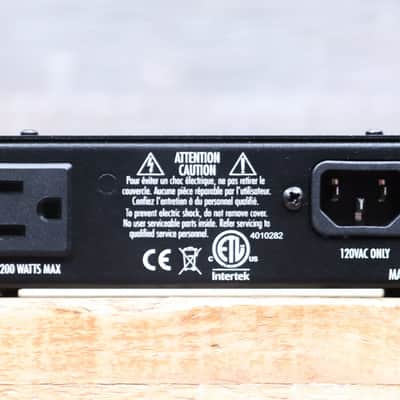

Rear Courtesy Auxiliary AC outlet, 200 watts max

Important!

Pedal Power 2 Plus is manufactured to operate from a specific supply voltage. There are three different models, which accept 100V, 120V, or 240V mains. All units sold in North America are for 120V only. You cannot operate a 120V Pedal Power using 240V power without the correct step down transformer. The supply voltage is marked on the bottom of the unit.

Short Circuit Protection

Each output on the Pedal Power 2 Plus is short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, PP 2 Plus will temporarily turn off the power to that pedal. All other outputs will continue to function normally with no long-term damage.

-
