You can really do everything with this delay! Such a killer unit - featuring lo-fi, tape, analog, and reverse delay settings. These are getting a lot harder to find these days.

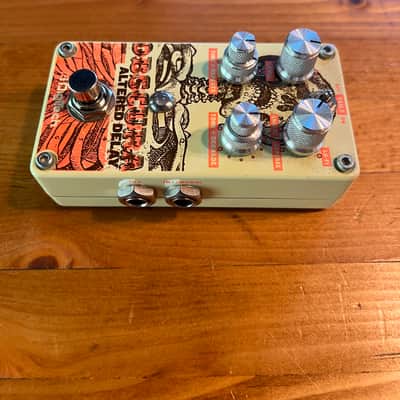

“The Obscura Altered Delay from DigiTech allows you to turn your delays upside down and inside out. The Obscuras four delay types can be darkened, degraded and distorted on the fly with the stacked Tone and Degrade controls. Combine these controls with the Obscuras Repeat/Hold feature and lose yourself in long, trippy, gurgling repeats or backwards-manipulated sonic mayhem.
In addition to its Tone and Degrade controls, the Obscura features independent Level, Delay Mode and stacked Time and Repeats controls. Complimenting those versatile controls, the Obscura offers four excellent-sounding Analog, Tape, Lo-Fi, and Reverse types, Tap Tempo mode with Beat Divisions, Stereo Inputs/Outputs, a Delay Tails On/Off Switch and True Bypass circuitry.
The Obscura uses a 9V DC power supply to easily integrate into your existing pedalboard.
Features:
• Four Unique Delay Types: Analog, Tape, Lo-Fi, Reverse
• Tap Tempo with Beat Divisions
• Repeat/Hold
• Compact Size with Soft Click, Vacuum-Style Footswitch
• Easy Access Delay Tails On/Off Switch - Enables buffered bypass which allows Delay signal to continue being heard after the effect is bypassed
• True Stereo I/O
• True Bypass circuitry preserves your tone in bypass
• High-Voltage operation for uncompromised signal quality
• Includes the following stage accessories:
• Stomplock knob guard locks your tone in place and prevent tampering or accidental knob adjustments onstage

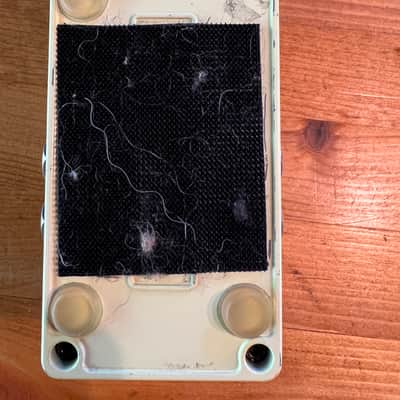

• Custom-cut Hook and Loop Pedalboard Pad to attach and lock your pedals to your pedalboard
Specifications:
Input: Separate Left and Right 1/4" Unbalanced (Tip-Sleeve)
Input Impedance:
- Effect on: >1 MΩ (stereo), >500 kΩ (mono);
- Effect off: True hardwire bypass

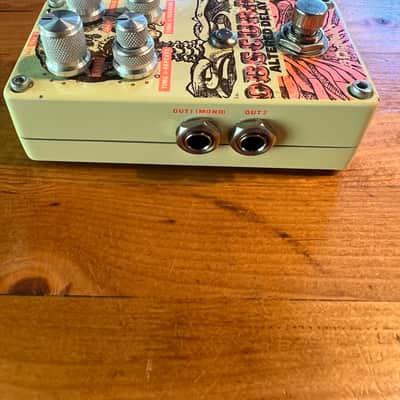

Output: Separate Left and Right 1/4" Unbalanced (Tip-Sleeve)
Output Impedance:
- Effect on: 1 kΩ;
- Effect off: True hardwire bypass
Controls: Level, Delay Type, Time, Repeats, Tone, Degrade, Delay Tails On/Off, Effect On/Off
Switches: Soft Click, Vacuum Style Footswitch; Reverb Tails On/Off Toggle Switch

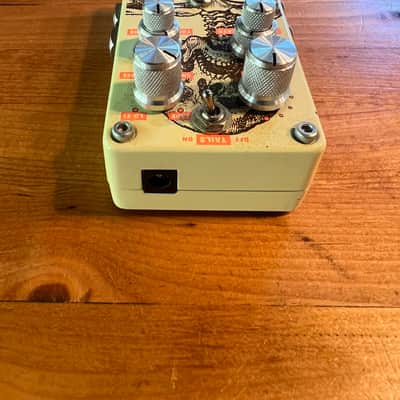

Power Requirements: 9 VDC external power supply (required)
Power Consumption: 675 mW (< 75 mA @ 9 VDC)
Current Draw: 75 mA (typical at 9 VDC)
Power Supply Model: PS0913DC-01
Power Supply Output: 9 VDC 1.3 A
Dimensions: 4.40" (L) x 2.65" (W) x 2.0" (H); 11.18cm (L) x 6.73cm (W) x 5.08cm (H)
Weight: 1 lb (0.453 kg)”
