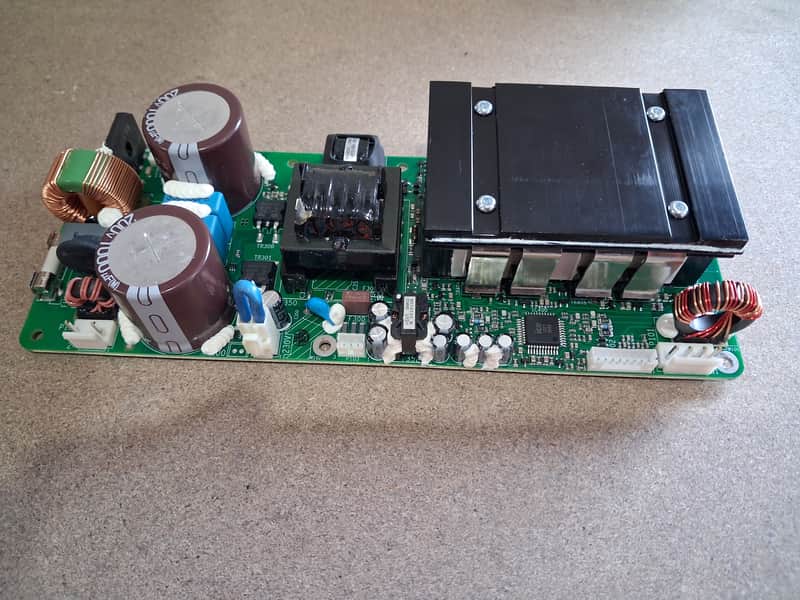

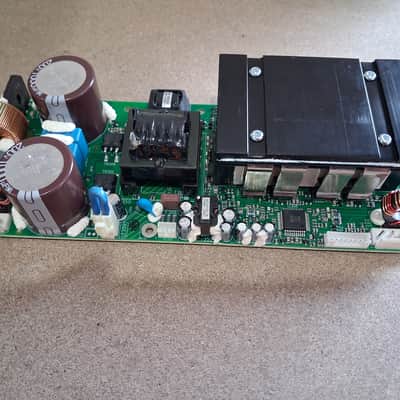

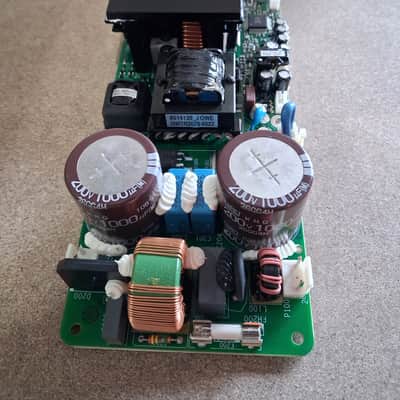

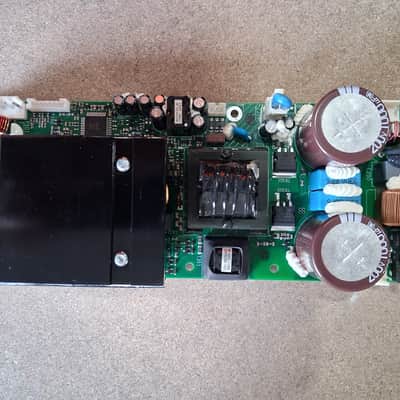

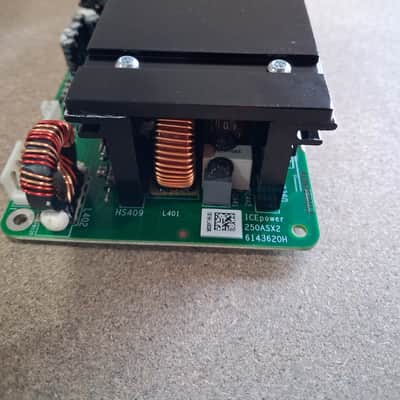

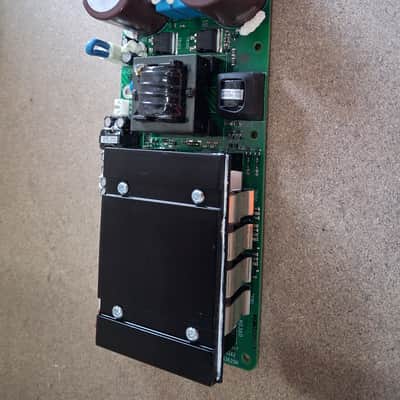

ICEPOWER 250ASX2 Power amp module

The ICEpower250ASX2 is a fully integrated, intelligent audio power conversion solution designed particularly for highly competitive consumer and professional audio products. The ICEpower250ASX2 is EMC and safety approved and the “black-box” completeness allows for fast design-in and minimized time to market. 4 pieces available, this listing is for 1 piece.

Key Specifications • 500W @ 1% THD+N, 20Hz – 20kHz, 8Ω, BTL • 2 x 230W @ 1% THD+N, 20Hz – 20kHz, 4Ω, SE (both channels driven) • 400W (2Ω) + 100W (8Ω) @ 1% THD+N, 20Hz – 20kHz, SE (both channels driven with asymmetric load) • Max output voltage / current: 46.5Vp / 30Ap, 4Ω, SE • Max output voltage / current: 89.5Vp / 30Ap, 8Ω, BTL • 121dBA dynamic range (BTL-mode) • 112dBA dynamic range (SE-mode) • THD+N = 0.008% @ 1W (8Ω,1kHz, SE-mode) • THD+N = 0.003% @ 1W (8Ω,1kHz, BTL-mode) • 84,4 % total efficiency @ 500W, 8Ω • CCIF Intermodulation distortion = 0.0009%, 10W, 4Ω, 18.5kHz/1kHz • ±24V unregulated auxiliary power supply • Selectable Mains 85-132VAC & 170-264VAC

Key Features • Fully integrated audio power solution • Rugged construction • Thermal protection • Overcurrent protection • Sound optimized soft clipping • Suitable for CE approved designs • EMI conforms to: EN55013 EN55020 EN61000-3-2 EN61000-3-3 FCC part 15-B • Safety conforms to: IEC/UL 62368-1
