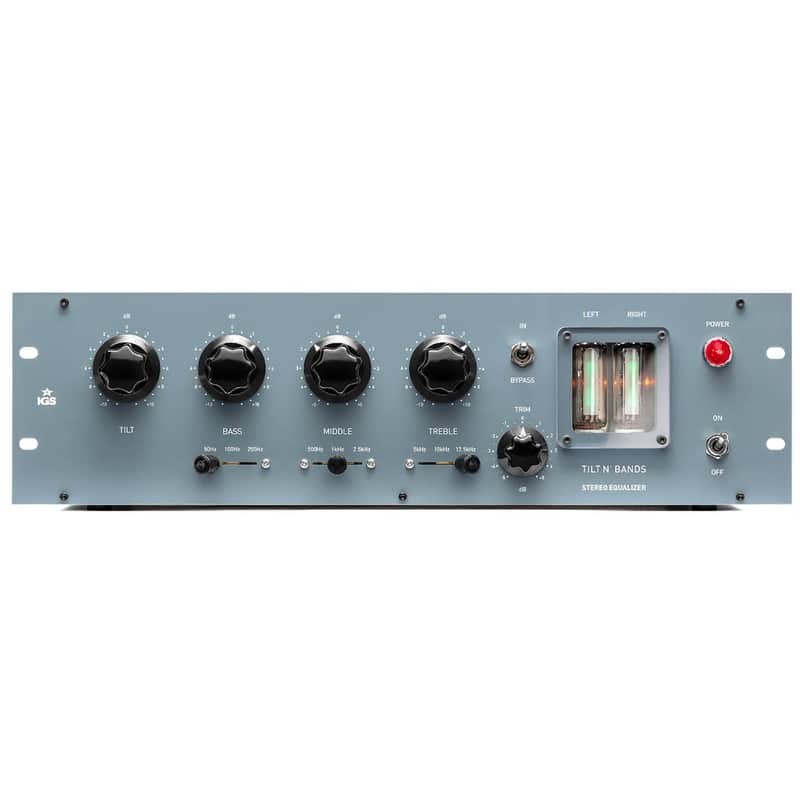

IGS Tilt n' Bands Parametric Equalizer

Here is what IGS has to say about the Tilt n' Bands Parametric Equalizer...

My uncle Chris
I asked my uncle for the diagram and he drew it with a pencil on a piece of paper. I quickly learned the scheme by heart and as an electronic engineer amateur, I repeatedly build the hi-fi amplifiers using the scheme. The EQ sounded implausible each time.

After many years
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.

improved the arrangement
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.

• Q factor 0.5 to 5
• Hard wire bypass yes
• Input Impedance (balanced) 10k Ohm
• Output Impedance (balanced) 600 Ohm
• Operating Level +4 dBu nominal
• Max output level @ 1.6% THD +37 dBv; +26dBv @ 20 Hz
• Noise Level -120dB
• Frequency response 20 Hz to 40 kHz, +/-0.3dB
• THD+N 0.08% (1KHz @ +4 dBu)
• Crosstalk >120dB
• Voltage 230/115
• Power consumption 64W
• Power supply Linear, internal

• IGS Tilt n' Bands Parametric Equalizer
• Power Cable
• Manufacturer Warranty
