Collide 4 is the first hardware creation designed in collaboration with experimental ambient electronic music composer, Hainbach. This module brings the lock-in amplifier concept—once exclusive to atomic age physics research—into the Eurorack world. Known for their impressive power in musical applications, these vintage instruments have been reimagined for today’s synthesists, offering the same raw potential in a far more compact and user-friendly format, complete with full voltage control.

Collide 4 delivers a completely new analogue synth voice and audio processor, expanding well beyond the possibilities the avant-garde pioneers could have envisioned. It reflects Hainbach’s deep expertise in exploring the unique sounds of vintage test equipment, combined with Joranalogue’s innovative approach to electronic instrument design.

Building on its cutting-edge dual-phase architecture, this groundbreaking musical generator and processor has been aptly named the “quadrature spectral computer."

• Modern, fully analogue Eurorack format re-imagining of the lock-in amplifier concept, expanded to new heights.
• Pingable variable bandwidth filter with self-oscillation capability.
• Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
• Through-zero sine/cosine quadrature oscillator.
• Hilbert transform network for frequency shifter use.
• Dual ring modulators with output lowpass filters.
• Extensive output section, including magnitude and phase analogue computing outputs.
• Unique X/Y quadrature topology, ideal for stereo use.
• Handsome (and useful) signal level/overload LED indicator.
• CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.

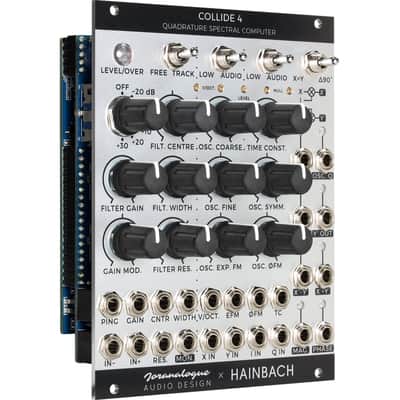

• 20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.
• Impedance-compensated outputs with dual-colour LEDs.
• Trim potentiometers accessible from the front panel.

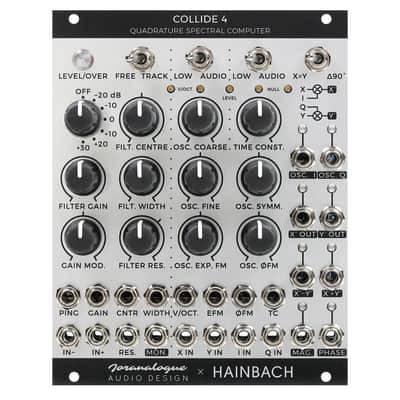

• Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
• Bullet-proof design: polarised power header and MOSFET protection circuit.
• Includes 16-to-10-pin Eurorack power ribbon cable.
• Premium mounting hardware: black screws, black nylon washers and matching hex key.

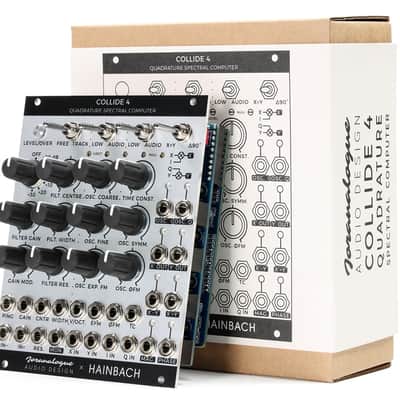

• Supplied with fold-out signal flow and front panel diagram.
• High-quality components and assembly; designed and made in Belgium.

• 20 HP 30 mm deep
