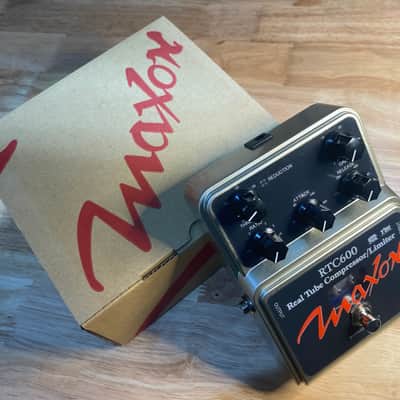

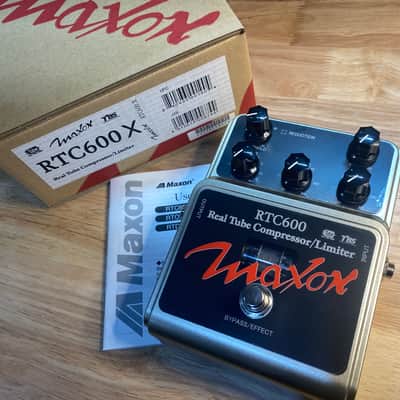

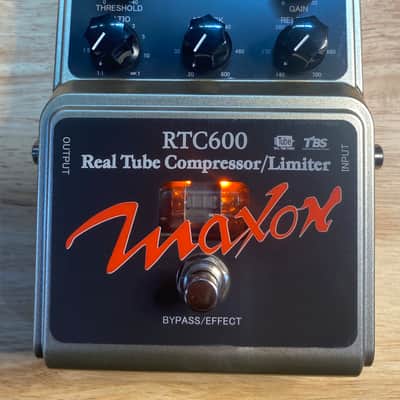

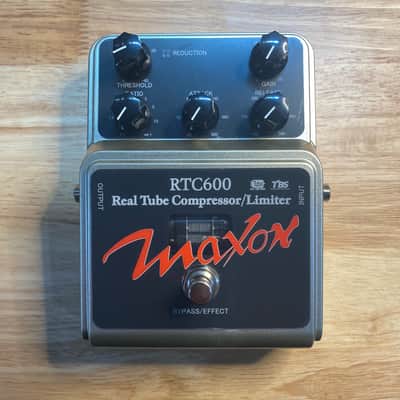

Maxon RTC600 Compressor Pedal

• Authentic tube compressor offers warm yet bold compression/limiter sound.
• Low noise and wide dynamic range with precise RMS level detecting circuit and high-performance VCA
  (voltage controlled amplifier).
• Studio-level setting is available with 3 controls (THRESHOLD, RATIO, GAIN) and 2 envelope controls
  (ATTACK, RELEASE).
• Variable threshold level (0dBu to -40dBu) offers optimal compression settings.
  NR status LED precisely reflects compression effect while offering easily viewable setting.
• Variable compression ratio from 1:1 to infinity:1. Output gain is also variable (0dB to 30dB).
  “Brick Wall” limiter and “Soft Knee” compression effects available.
• 9VDC supplied from AC adaptor is bumped up to 25V (±12.5V) and supplied to compressor/limiter circuit.
  High-headroom and full-range frequency response allows RTC600 to be used with any musical instrument.
• When power is turned on, tube heater inrush current control circuit extends tube life.
• TBS (True Bypass Switching) using 4PDT mechanical switch.
• AC adaptor AC2009 can be used worldwide from 100VAC to 240VAC by auto voltage sensing.
  Main countries’ safety standard approved.
• FCC Part 15 compliant. RoHS compliant. Made in Japan with confidence.
