The Ultimate Hand-Wired American Clean Pedal Platform Head
Engineered by John Suhr and the master builders in Lake Elsinore, California, the Suhr Bella Hand-Wired Tube Head delivers the ultimate clean canvas for pedalboard players in a compact, standalone amplifier head format. Built around a point-to-point hand-wired circuit topology, Bella provides high-headroom American clean tones, exceptional dynamic response, and articulate chime without harsh high-end fatigue.
Housed in a lightweight, resonant cabinet covered in classic Black Tolex with a clean Tolex front panel, Bella features a dual-6L6 power section delivering 44 watts of Class A/B power—switchable down to 22 watts via the rear panel for studio tracking and lower stage volume. Whether running high-gain overdrives directly into the front end or running time-based effects through its transparent buffered series FX loop, Bella preserves every nuance of your rig's signal path with studio-grade depth and clarity.
Precision Tone-Shaping & Signal Integrity
Designed for effortless tone shaping, Bella keeps the signal path ultra-pure by focusing on essential, high-impact controls. The top control layout features a 3-position Bright switch to dial in high-end response for single-coil or humbucker-equipped guitars, a 3-position Boost switch (+6dB / 0dB) to tailor input gain and headroom, and independent Presence and Bass controls to tune cabinet resonance and room acoustics. The tube-buffered series effects loop includes an independent Return level control, doubling as a master volume adjustment when running active loop setups.
Technical Specifications:
Circuit Design: Hand-wired point-to-point Class A/B all-tube circuit
Power Output: 44 Watts / 22 Watts (Selectable via rear-panel toggle)
Power Tubes: 2 x 6L6GC matched power tubes
Preamp Tubes: 3 x 12AX7 preamp tubes
Controls: Volume, Bass, Presence, 3-Position Bright Switch (3/Off/1), 3-Position Boost Switch (+6dB/Off)
Effects Loop: Tube-buffered series effects loop with Return Level control
Outputs: Dual speaker outputs with selectable impedance switch (4Ω / 8Ω / 16Ω)
Cabinet Construction: Lightweight, resonant solid pine cabinet in Black Tolex with Tolex front panel
Dimensions & Weight: 24” (W) x 9.90” (D) x 10.4” (H) | Weight: 35 lbs
Origin: Hand-built in Lake Elsinore, California, USA
Sanctuary Expert Note:
If you prefer using your own speaker cabinets or isolation boxes and require a lightweight, 44-watt American-voiced head with massive headroom, the Suhr Bella Head is one of the finest pedal platform designs available today.
SKU: 02-BEL-0022
OUTPUT: Switchable 44/22 Watts RMS
PREAMP TUBES: 3x 12AX7
POWER TUBES: 2x 6L6GC
REVERB: No
EFFECTS LOOP: Tube driven, buffered, with independent send and return levels.

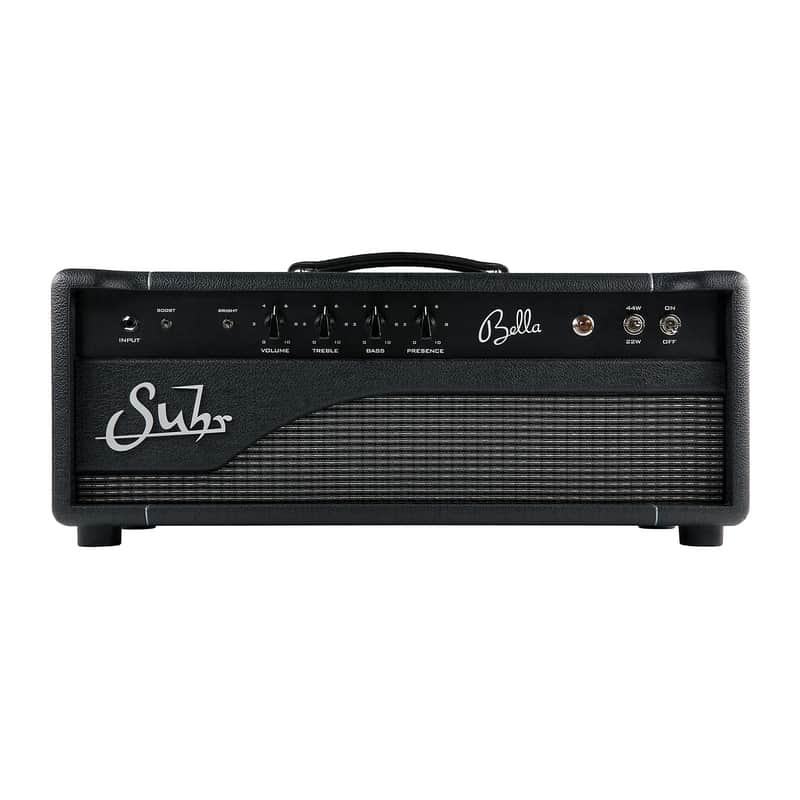

FRONT PANEL: Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, and Presence, Standby/Wattage Selector Switch, and On/Off Power Switch

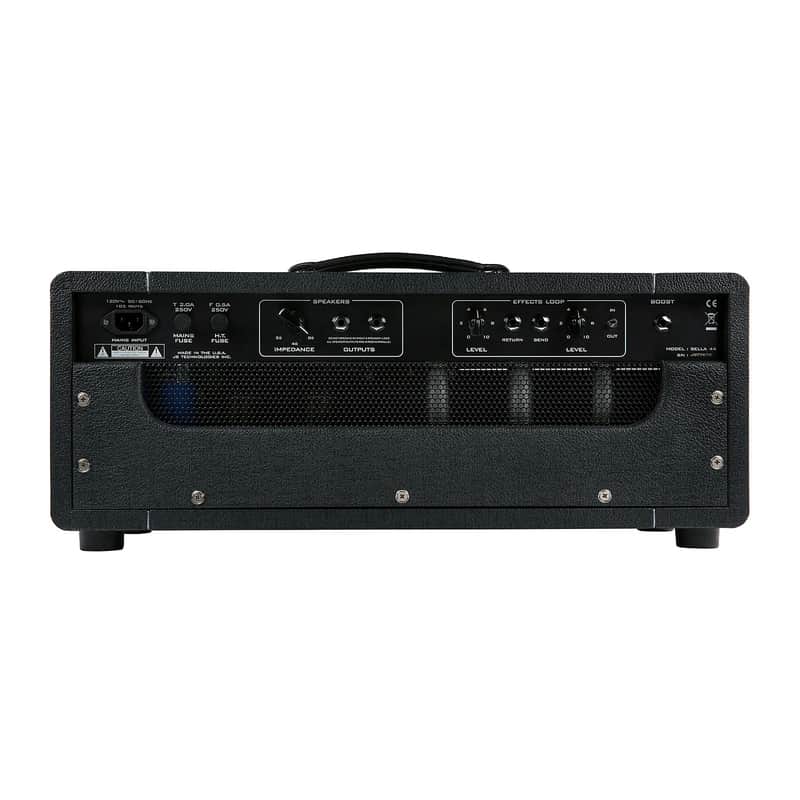

BACK PANEL: Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack.
DIMENSIONS: 24” (W) x 9.90” (D) x 10.4” (H)
WEIGHT: 35 lbs
Price$1,999
