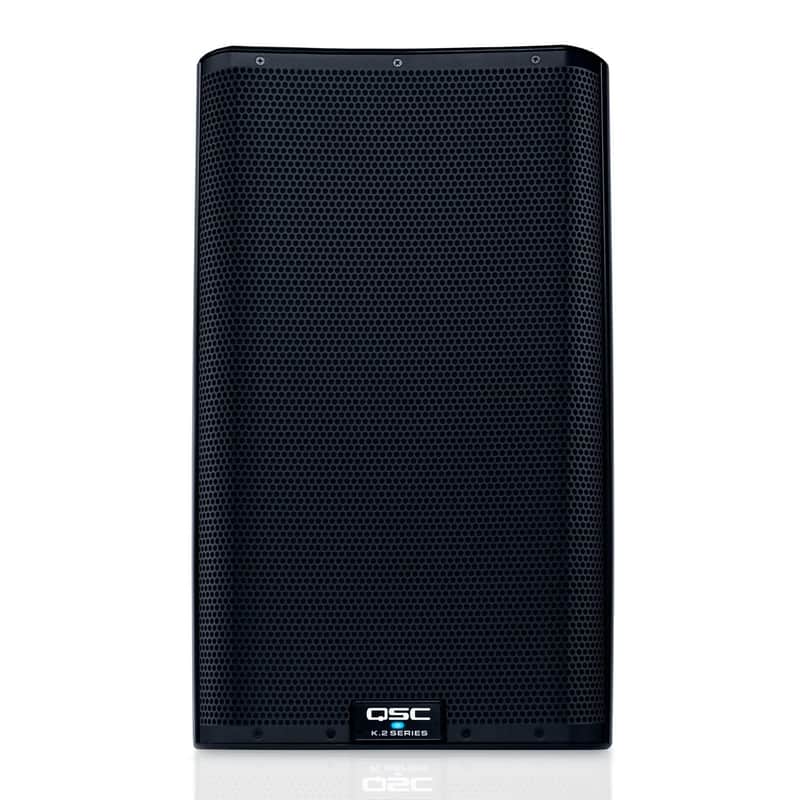

QSC K12.2
The QSC K12.2 is an active 2-Way PA loudspeaker featuring 2000 watts of power with a 12" LF driver and a 1.4" titanium HF tweeter. The K12.2 can be used as a main PA speaker or on its side as a monitor wedge.
The K12.2 is a serious upgrade on the original K12 with double the power, on-board DSP and a library of preset contours for common applications such as Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-held Microphone and more. There are now Scene memories to store user-configurable settings such as input type, delay, EQ, cross-over and selected contour via the loudspeakers’ LCD screen and control panel
InputsA pair of balanced combo XLR/F plus 1/4" TRS connectors with independent gain control are provided. The first is equipped with selectable MIC/LINE level input while the second offers selectable HI-Z/LINE level input, specifically for musical instruments. Both inputs are connected directly to a pair of XLR/M throughput connectors so that the signals may be "daisy-chained" to another audio device. A 3.5 mm TRS input jack with independent gain control is also provided for connection of sources such as smart phones, computers, and MP3 players.
OutputsIn addition to the two throughput XLRs, a line-level output with the mixed signal from all inputs is also provided. (An optional security cover (K-LOC) may be installed to prevent unauthorised tampering of settings)
QSC K12.2 Features
Best in class audio performance
2000 Watt Class-D amplifier module
Intrinsic Correction™ tuning and loudspeaker management
DMT™ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
Refined, professional appearance looks great in any application
Rugged ABS enclosure for long life and lasting durability
Deployment in either main PA or floor monitor position
Factory Presets and savable/recallable Scenes for commonly-used application
Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
Dual pole cup mounts (standard and 7.5 degree down-tilt)
M10 fittings for flown applications
Optional security panel prevents unauthorized tampering of controls
Complete EASE and CAD information available online
6-Year Warranty (with product registration)
Specifications
Configuration: Multi-purpose, 2-way powered loudspeaker
LF Transducer: 12" (305 mm), cone
HF Transducer: 1.4" (35.6 mm) titanium diaphragm compression driver
Frequency Response (-6 dB): 50 Hz - 20 kHz
Frequency Range (-10 dB): 45 Hz - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL:132 dB @ 1 M, peak 126 dB @ 1 M, continuous
Amplifier: Class D - Peak: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls:
Power
3 x Level
Rotary encoder (push)
2 x selection buttons
Indicators:
Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED
Connectors:
2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
Enclosure Details
Enclosure Enclosure: Impact Resistant ABS
Attachment Points: 2 x M10 threaded inserts plus Pull-Back
Color: Black (RAL 9011)
Grille: 18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD):
23.7 x 14 x 13.8 in
602 x 356 x 350 mm
Net Weight: 17.7 kg (39 lbs)
Shipping Weight: 21.7 kg (47.8 lbs)
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories:
K12 Tote, K12 Outdoor Cover
M10 Kit-C, K.2-LOC LockOut Cover
K12.2 Yoke
