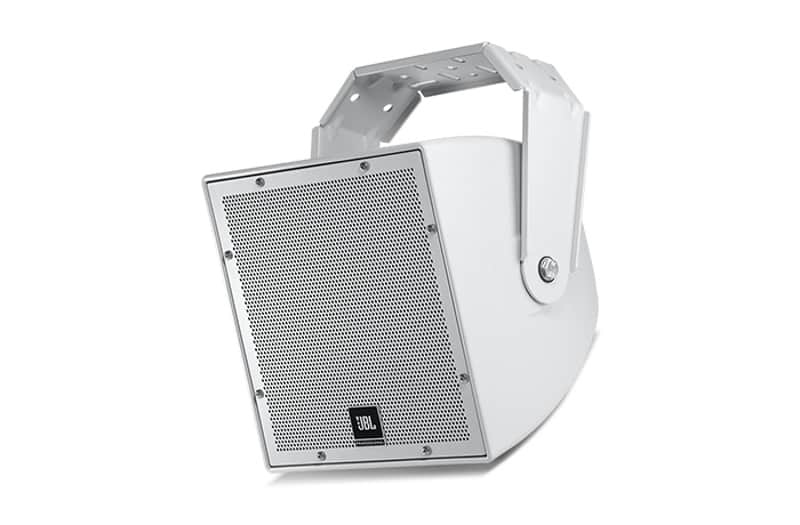

Description:All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LFFeatures:Highly weather-resistant IP56 ratingConsistent 120° x 120° broadband pattern controlComponents:200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.Extraordinary clarity for speech, with extended frequency response for music.Advanced high-slope crossover network for constant coverage and smooth, natural midrange.250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.High-power passive crossover network.Overload protection80 Hz – 20 kHz frequency response.200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.Specifications:Frequency Range (-10dB): 80 Hz – 20 kHzFrequency Response (±3 dB): 100 Hz – 20 kHzCoverage Pattern: 120° x 120°Directivity Factor (Q): 8.1 (1 k – 16 kHz)Directivity Index (DI): 8.4 dB (1 k – 16 kHz)System Power Rating: 250 W 2 hrs. 200 W 100 hrsSensitivity (2.83V @ 1m): 94 dB (Ave. 100 Hz – 20 kHz)Maximum SPL (1m): Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dBCrossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LFNominal Impedance: 8 ohmsTransformer Taps: 70V: 200W, 100W, 50W, 25W100V: 200W, 100W, 50WLF Driver: Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.HF Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.HF Driver Protection: Minimum audibility SonicGuard™ HF overload protectionEnclosure: ABS with Glass enclosure, heavily bracedAttachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).Dimensions: 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to backColors: Available in gray (similar to Pantone 420C) and black (-BK)Net Weight (each): 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracketShipping Weight: 14.1 kg (31.0 lb)Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.Crossover Modes: PassiveNominal LF Driver Impedance: 8 ohmsSuspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Precio$587
Envío gratis
Envío gratis
desde Inwood, NY
Política de devoluciones de 14 días
Disfruta de tu nuevo equipo sin preocupaciones
