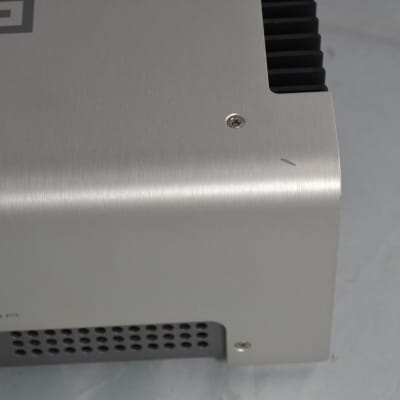

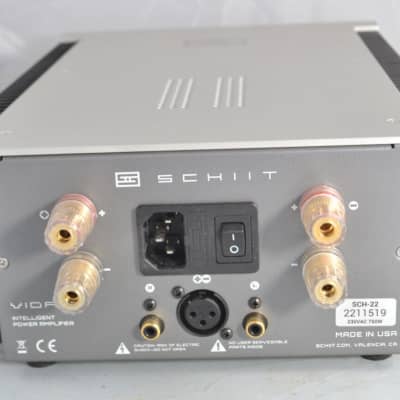

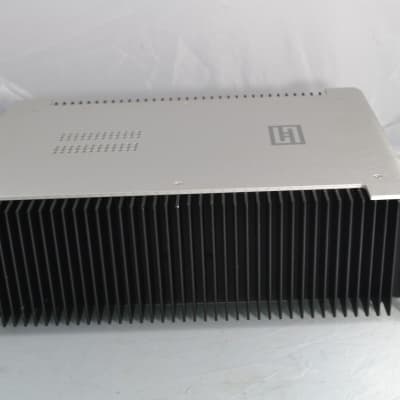

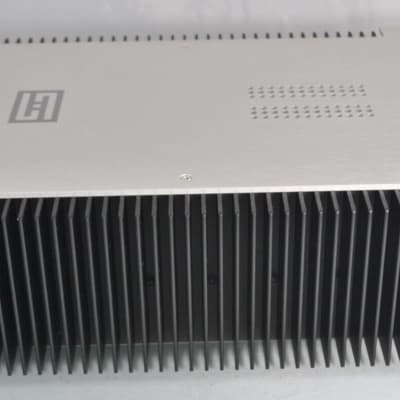

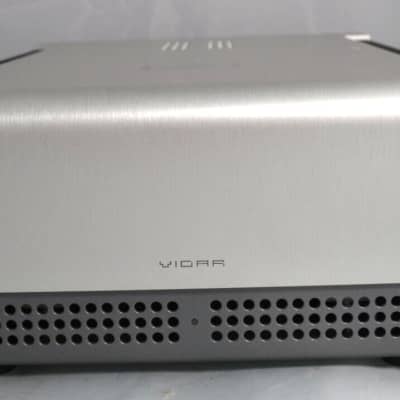

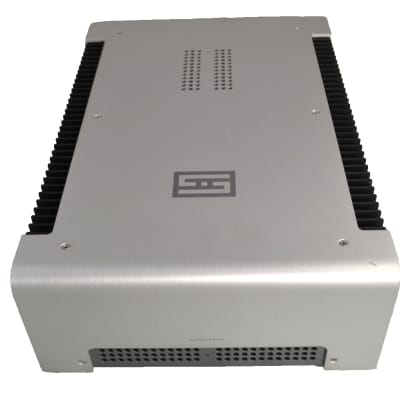

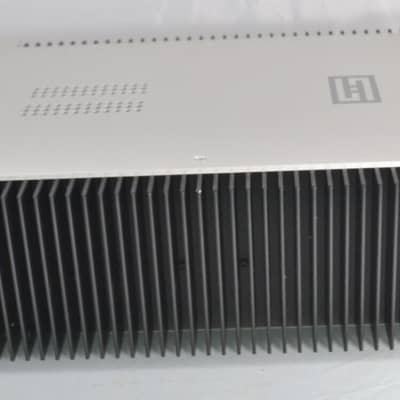

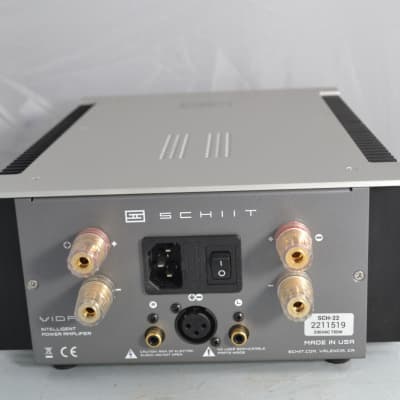

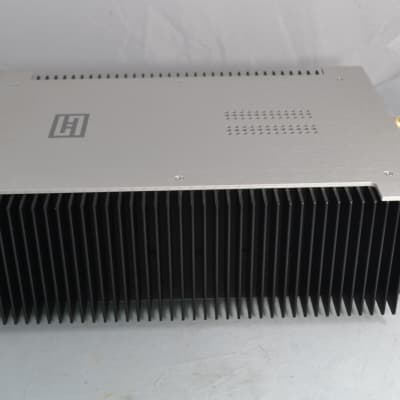

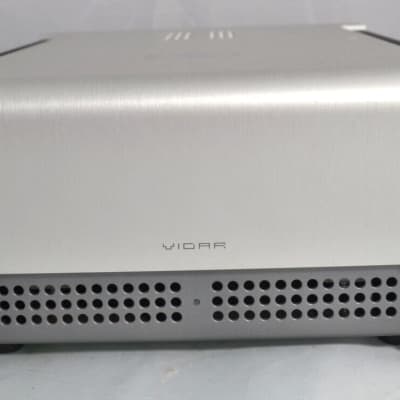

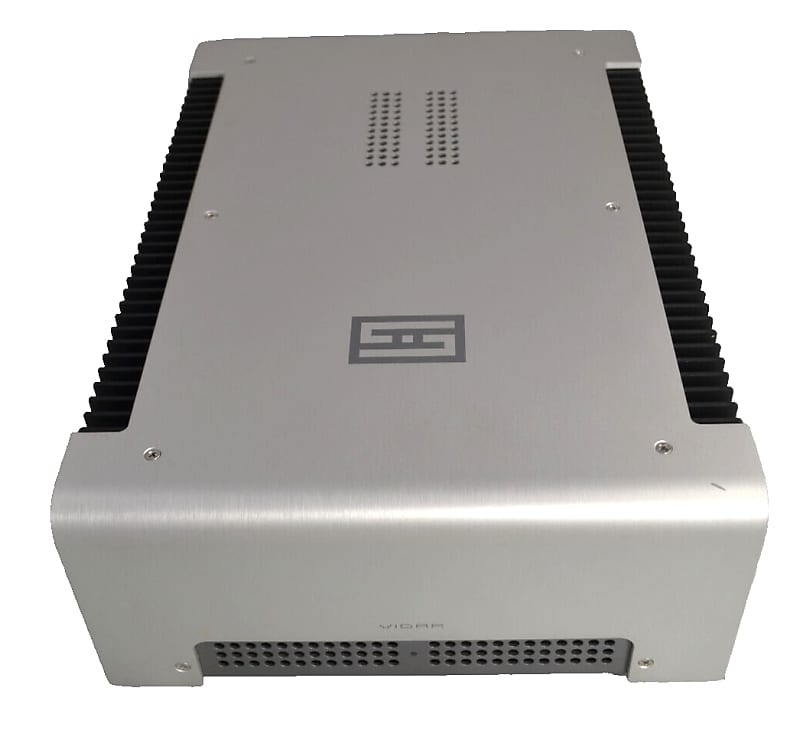

Schitt Vidar power amplifier, original boxed, good cosmetic condition and in good working order. We've been play testing this today and it sounds great! There is the odd mark which we have tried to show in the photos but overall condition is good and clean! We can ship worldwide.
SpecificationDetailsPower Output (Stereo)100W RMS per channel into 8 ohms; 200W RMS per channel into 4 ohmsPower Output (Mono)400W RMS into 8 ohmsFrequency Response20Hz-20kHz, -0.1dB; 3Hz-500kHz, -3dBTotal Harmonic Distortion (THD)<0.01%, 20Hz-20kHz, at 100W RMS into 8 ohmsIntermodulation Distortion (IMD)<0.01%, CCIR, at 100W RMS into 8 ohmsSignal-to-Noise Ratio (SNR) 115dB, A-weighted, referenced to full output Damping Factor 100 into 8 ohms, 20-20kHz Gain22 (27dB)Input Sensitivity28V/22Input Impedance22k ohms single-ended (SE); 44k ohms balancedCrosstalk 95dB, 20-20kHz InputsL/R RCA jacks for stereo input; single XLR for mono inputTopologyFully complementary, all-BJT, current feedback; no coupling capacitors or DC servosOversightMicroprocessor-controlled monitoring and management of critical operational points, including DC offset, with relay shut-down for overcurrent, thermal, and other faultsPower Supply600VA transformer with dual mono main rails; boosted, regulated supply to input, voltage gain, and driver stages; separate, isolated, and regulated rails for microprocessor managementPower Consumption700W maximumDimensions9” x 13” x 3.875”Weight22 lbs
SpecificationDetailsPower Output (Stereo)100W RMS per channel into 8 ohms; 200W RMS per channel into 4 ohmsPower Output (Mono)400W RMS into 8 ohmsFrequency Response20Hz-20kHz, -0.1dB; 3Hz-500kHz, -3dBTotal Harmonic Distortion (THD)<0.01%, 20Hz-20kHz, at 100W RMS into 8 ohmsIntermodulation Distortion (IMD)<0.01%, CCIR, at 100W RMS into 8 ohmsSignal-to-Noise Ratio (SNR) 115dB, A-weighted, referenced to full output Damping Factor 100 into 8 ohms, 20-20kHz Gain22 (27dB)Input Sensitivity28V/22Input Impedance22k ohms single-ended (SE); 44k ohms balancedCrosstalk 95dB, 20-20kHz InputsL/R RCA jacks for stereo input; single XLR for mono inputTopologyFully complementary, all-BJT, current feedback; no coupling capacitors or DC servosOversightMicroprocessor-controlled monitoring and management of critical operational points, including DC offset, with relay shut-down for overcurrent, thermal, and other faultsPower Supply600VA transformer with dual mono main rails; boosted, regulated supply to input, voltage gain, and driver stages; separate, isolated, and regulated rails for microprocessor managementPower Consumption700W maximumDimensions9” x 13” x 3.875”Weight22 lbs
Listed | a month ago |
Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
