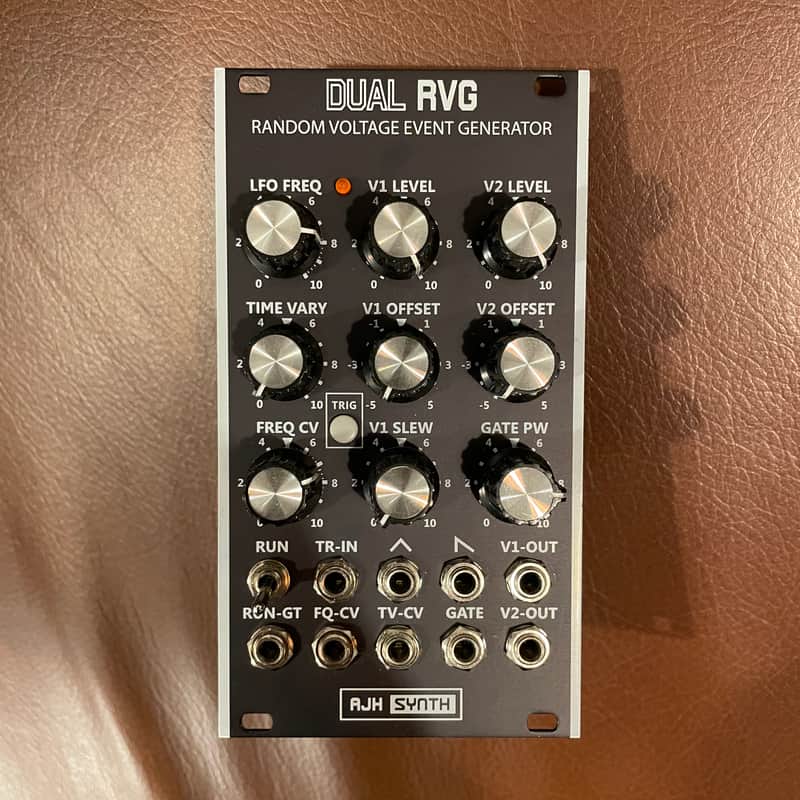

AJH Synth Dual RVG Random Voltage Event Generator Limited Edition Module (black)

Bought new in September 2022 and barely used. It has sat in my rack at home during a very busy year in which I sadly didn't have much time to make music. Now it's time to sell this incredible module to a new home!

Comes in original box and will be packaged up safely in another cardboard box when it's time to send it to you.

I'm selling quite a lot of AJH Synth modules. So please check the rest of my listings... thanks!

Here's what you need to know:

Black version of AJH's random voltage generator, based on the ultra-rare 1970s EMS RVG. Complex, triggerable modulation source with multiple outputs and full CV control.

Supplier's Notes:
The Random Voltage Event Generator (RVG) is a faithful replica of the vintage EMS Random Voltage Generator. It produces random voltages which vary smoothly or in a step-wise manner. Random timing pulses are also available. The rate of change of all outputs is voltage controllable over a wide range.

Just like the original RVG it uses four unijunction transistors - three of them are configured as ramp and hold generators and the fourth is an LFO. It produces two separate random voltages but also the clock time between pulses can be randomised.

The module offers some extra features: it is possible to add a bias voltage to either of the random voltage outputs, and also add slew to Voltage 1. There is a CV control of the LFO frequency and clock speed as well as CV control of the Time variance.

The internal LFO can be tapped thanks to dedicated outputs for both sawtooth and triangle waveforms, and the waveform shape follows the time variance. The internal clock can be started using an external gate or with the help of the manual trigger button that works when the clock is stopped.

The TR-IN input allows an external clock to be used instead of the internal LFO. There is also a gate output, the gate length changes in proportion with the time variance, and the duty cycle of the gate can be varied from 1% to 99%.

*limited edition!

Module Width: 14hp

Module Depth: 26mm (Including power lead)

Current Usage: 95mA Positive, 70mA Negative
