Yamaha RX-V375 5.1 Natural Sound HDMI AV Home Theater Stereo Receiver

Designed for ease of use and full-scale AV entertainment with outstanding Yamaha sound quality from features such as Discrete Amp Circuit Design and many convenient functions including YPAO, SCENE and USB input for iPhone/iPod.

• 5-channel powerful surround sound
• 100W per Channel (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
• 70W per Channel (6 ohms, 20Hz-20kHz, 0.09 % THD, 2 ch driven)
• 135W per Channel (6 ohms, 1kHz, 10% THD, 1ch driven, JEITA)
• Discrete amp configuration
• 4K pass-through for next generation super high resolution images
• HDMI (4 in/1 out) with 3D and Audio Return Channel
• Front panel USB Digital Connection for iPod and iPhone
• YPAO sound optimisation for automatic speaker setup
• Multi language colour OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
• ECO mode operation for about 20% less power consumption

• Power and Processing:
• 5-channel amplifier
• 70 watts per channel into 8 ohms (20-20,000 Hz) at 0.09% THD, with 2 channels driven
• Dolby® TrueHD, DTS-HD™ Master Audio, Dolby® Digital Plus, DTS-HD™ High Resolution Audio
• Cinema DSP modes add richness and presence to music and movie soundtracks
• YPAO (Yamaha Parametric Room Acoustic Optimizer) for easy automatic speaker setup and more precise surround sound (microphone included)
• Adaptive Dynamic Range Control keeps volume steady for more discreet late-night listening
• Subwoofer Trim Control for enhanced bass clarity
• Silent Cinema for simulated surround sound via standard stereo headphones
• Compressed Music Enhancer for better sounding MP3s and other digital music files

Digital Music Options:

• direct digital connection for iPod® or iPhone® through front-panel USB input bypasses the portable device's digital-to-analog converter for better sound

Audio Performance Features:

• 192kHz/24-bit Burr-Brown digital-to-analog converters for all channels
• direct mode switches off unnecessary circuitry to provide cleaner sound

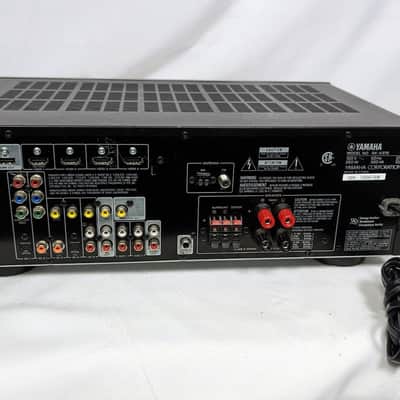

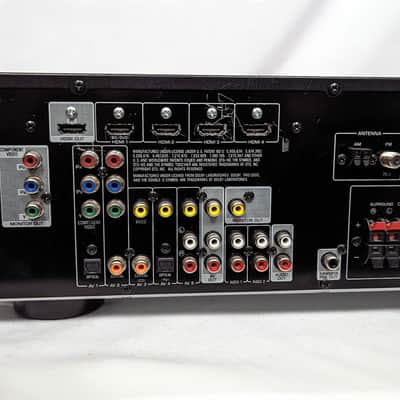

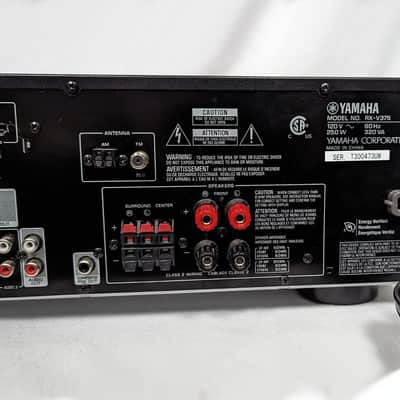

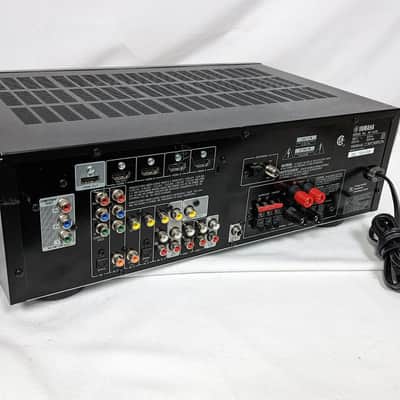

Connections:

• 1080p-compatible HDMI digital video switching (4 in, 1 out)
• receiver must be turned on to pass HDMI signals
• HDMI version 1.4a with support for 3D video, 4K video, Audio Return Channel, Deep Color, x.v.Color, auto lip-sync, and HDMI-CEC
• Audio Return Channel function receives digital audio signals from a compatible HDTV's tuner via HDMI
• component video switching (2 in, 1 out)
• digital audio inputs: 2 optical and 2 coaxial
• 5 audio/video inputs with composite video (including 1 front-panel)
• 1 audio-only input
• no phono input — to connect a turntable you'll need to add a phono preamp
• 1 front-panel minijack audio input for connecting a portable player
• 1 pair of main speaker outputs
• preamp output for a powered subwoofer

General Features:

• four SCENE presets for easier source switching
• easy-to-use on-screen display (via HDMI only)
• 40 AM/FM presets
• multibrand remote
• 17-1/8"W x 5-5/16"H x 12-7/8"D
• weight: 16.3 lbs.

Specifications:

• Tuning range: FM, MW
• Power output: 70 watts per channel into 8Ω (stereo)
• Surround output: 70W (front), 70W (center), 70W (rear)
• Frequency response: 10Hz to 100kHz
• Total harmonic distortion: 0.09%
• Damping factor: 120
• Input sensitivity: 200mV (line)
• Signal to noise ratio: 100dB (line)
• Channel separation: 45dB (line)
• Output: 200mV (line)
• Digital inputs: coaxial, optical, USB
• Video Connections: HDMI, component, composite
• Dimensions: 435 x 151 x 315mm
• Weight: 7.4kg
