8 FT - Mogami 3080 AES/EBU Digital Audio Interface Cable - Neutrik Gold XLR Straight Connectors

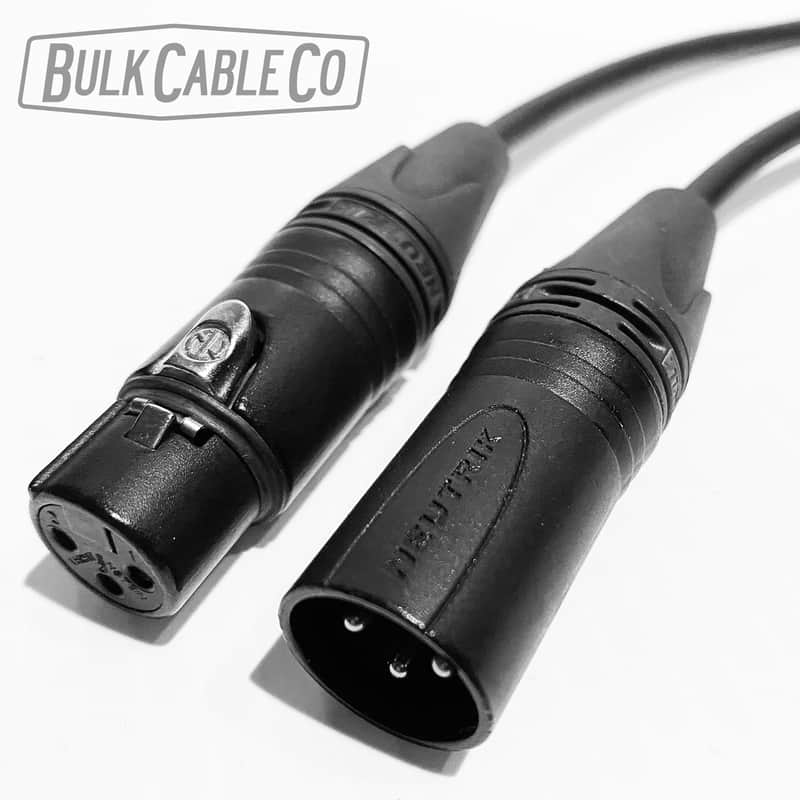

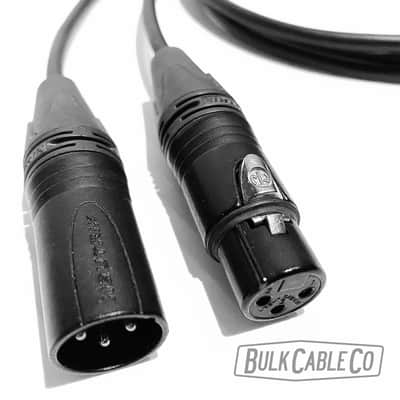

8 FT - Mogami 3080 AES/EBU Digital Audio Cable with Neutrik Black/Gold XLR Male/Female Straight Connectors.

Our Custom BulkCableCo AES/EBU Digital Interface Cables are hand-made here in our shop with the following top-notch parts:

- Mogami 3080 AES/EBU Cable

- Neutrik NC3MX-B Male XLR Connector

- Neutrik NC3FX-B Female XLR Connector

Need More Than One?

If you need more than one cable, please drop us a note before purchasing with the total amount you need, and we'll send over an offer - along with a combined shipping total. You can also check our other AES/EBU cable auctions for other quantities and configurations.

About BulkCableCo AES/EBU Cables:

Our hand-crafted MOGAMI 3080 110W AES/EBU digital audio cables are built here at the BulkCableCo Shop with flexibility, durability, and performance in mind. Strict tolerance control of impedance within ±5% up to ±10% guarantees quality, error-free digital data flow between digital-capable devices. By pairing Mogami 3080 110 ohm shielded twisted pair (STP) cable with Neutrik Gold XLR connectors, running pristine signals up to 100 meters / 300 feet is fully possible. These studio-grade cables are use in tons of digital devices made by manufacturers like Sony, Yamaha, Mackie, Panasonic, TASCAM, Digidesign, Lynx, RME, and more. These Mogami Digital Interface Cables capture every detail of your recordings and are designed with rigid adherence to 110 ohm AES/EBU standards.

AES/EBU cables might look like ordinary microphone cables, but they are actually very different. Microphone cables are designed to handle analog audio signals, while AES/EBU cables are 110-ohm impedance cables used for digital AES/EBU signals and handle a much wider bandwidth. AES/EBU is the great alternative to the S/PDIF standard, and the most common AES/EBU physical interconnect are these AES Balanced — 3-conductor, 110-ohm twisted pair cabling with XLR connectors. AES cables use standard XLR connectors and can carry up to two channels of digital audio between audio devices.

NOTE: Even though AES/EBU cables are designing to carry digital data, they can be used as a Microphone cable in a pinch - but not the other way around.

About The Parts:

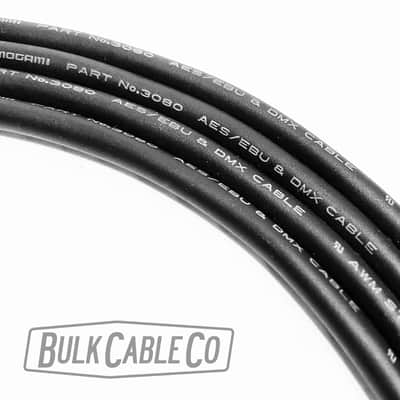

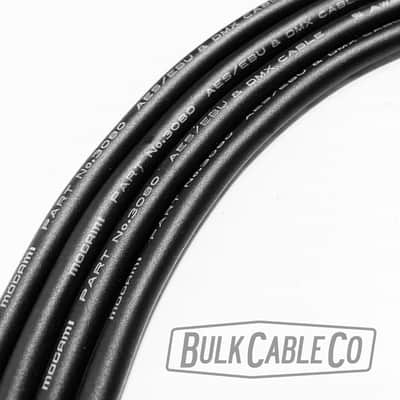

Mogami is one of the top industry choices for making professional AES/EBU cables. This cable maintains errors free digital communication and sounds fantastic.

Mogami 3080 SPECIFICATIONS

No. of Conductor: 2

Conductor Details: 7/0.18A (7×#33AWG)

Conductor Size: 0.178mm² (#25AWG)

Insulation Ov. Diameter: (mm): 1.36Ø (0.054")

Insulation Material: XLPE

Insulation Colors: Red/Clear

Drain Wire: 7/0.18A (7×#33AWG)

Served Shield: Approx. 60/0.12A - (Approx. 60/#37AWG)

Ov. Jacket Ov. Dia. (Mm): 5.0±0.3Ø - (0.197± 0.0118"Ø)

Ov. Jacket Material: PVC

Ov. Jacket: Black

Neutrik Gold XLR Connectors give you road-worthy construction coupled with studio-grade sonics that accurately translate and transfer digital data without compromise. These connectors are built to last and are one of the only few brands we trust here at BulkCableCo
