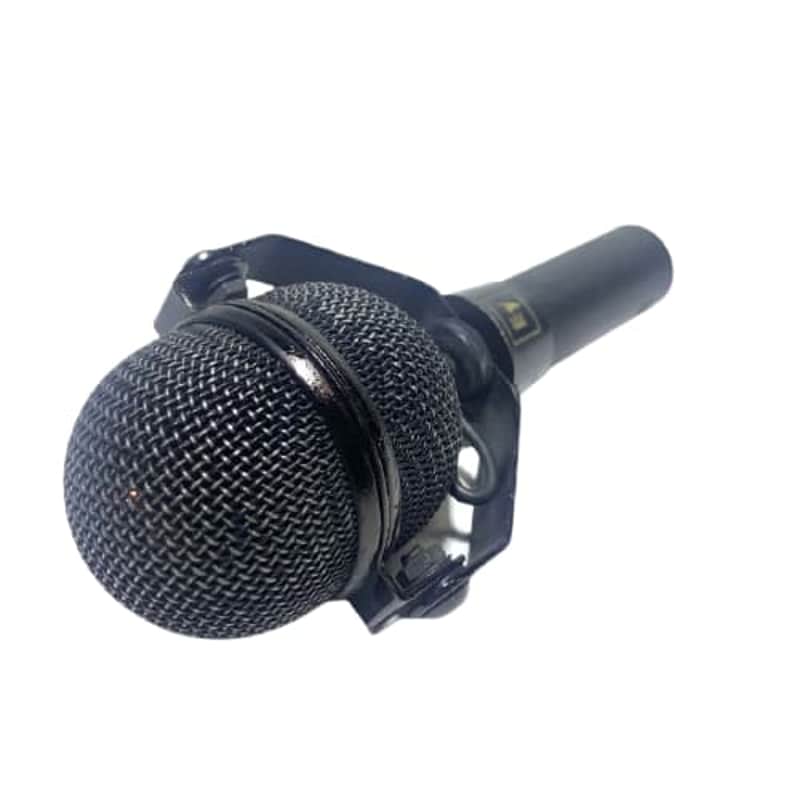

Electro-Voice ND308 Cardioid Dynamic Instrument Microphone #2125 - USED

Product ID : DISTRIO-M-2125

The Electro-Voice NI/D308 is a cardioid dynamic microphone utilizing a revolutionary neodymium alloy to form the EV-exclusive NliDYM"' magnet with four times the power potential of conventional microphone magnets. With a computer-optimized design, the NEDYM magnetic structure provides unprecedented sensitivity while the more uniform magnetic field lowers distortion during peak sound pressure levels. The large diaphragm contains 50 percent more surface area than conventional designs and is reinforced to prevent "breakup." The result is an extended high-frequency response with an open. transparent sound quality.
The exceptional sensitivity of the N/0308 combined with the inherently low noise of a dynamic transducer insures a superior signal-to-noise ratio ready for digital recording and sampling. To further reduce noise, a highly effective hum-bucking coil is used to cancel hum from lighting and other sources. The NliD-Series design also features a unique shock mount totally surrounding the microphone to greatly reduce vibration-transmitted noise. An AcoustifoamiM pop filter is included to reduce both wind noise and "p-pop" breath sounds.
The uniform cardioid polar pattern of the N'0308 insures superior gain-before-feedback in live applications and better isolation in the studio—at all frequencies—compared with other directional studio—at all frequencies—compared with other directional microphones with widely varying polar characteristics.

SPECIFICATIONS


Frequency Response.
Close Response: 40 to 20.000 Hz Far Response: 50 to 16.000 Hz Polar Pattern: cardiold Open Circuit Voltage: 2.2 mV,Pascal 0 1000 Hz Sensitivity: -53 dB
(0 dB- 1mW 10 dynevcrm) Dynamic Range: 141dB Equivalent
Output Noise: 17dB
(0 all - 0002 dyne,cm,1 Impedance: 150 ohms balanced (Lo-Z) Weight: 6.7 ounces (190 grams) Dimensions.
Height: 4.55 inches (1 15 mm) Width: 2.85 inches (72 mm) Length: 2.75 inches (70 mm)
