Panasonic RAMSA WR-DA7 Blue

Digital Audio Mixer

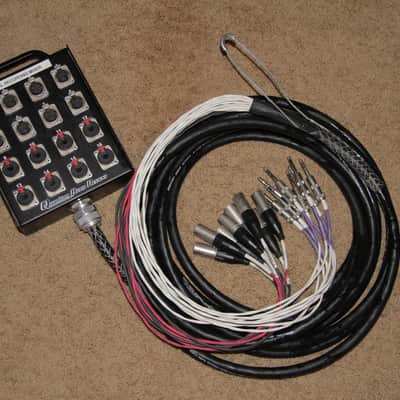

Panasonic WR-DA7 Ramsa with Owners Manual and original software Also includes a custom 30' 16 Channel Quantum Snake. Specifically designed for the WR-DA7 FREE.

Model Details

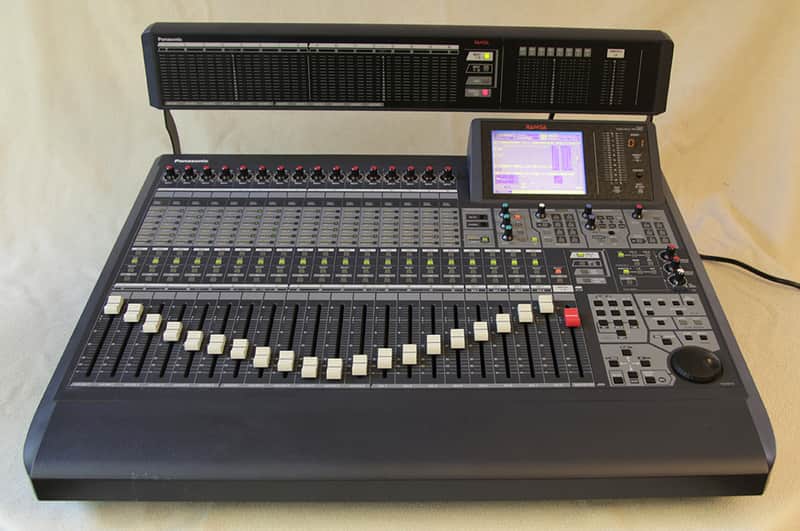

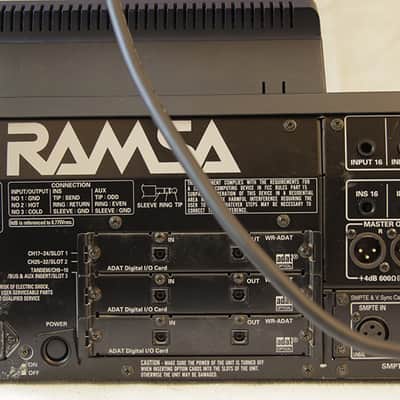

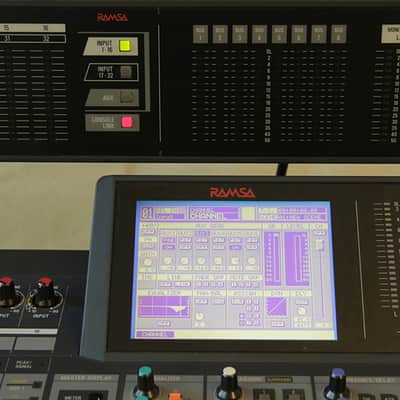

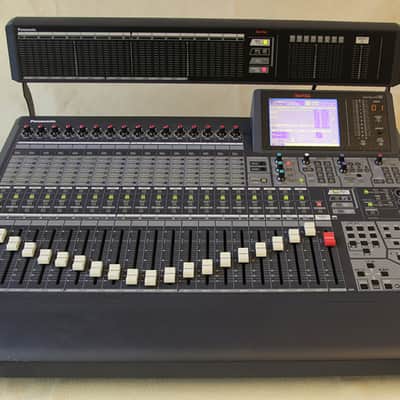

This WR-DA7 is packed with all the add-ons. Includes: meter bridge, 3 ADAT cards and with SMPTE & V SYNC.

The WR-DA7 digital mixer is extremely easy to use and has unprecedented power. Its 32 inputs with 8 busses (with moving faders) give you the flexibility you need and 24-bit analog-to-digital and digital-to-analog converters make sure it sounds great. Versatile expansion cards insure flexibility in your studio, regardless of which format you choose. And if video post-production is your need, the console has integral RS-422 and RS-485 connectivity and SMPTE time code.

Features:

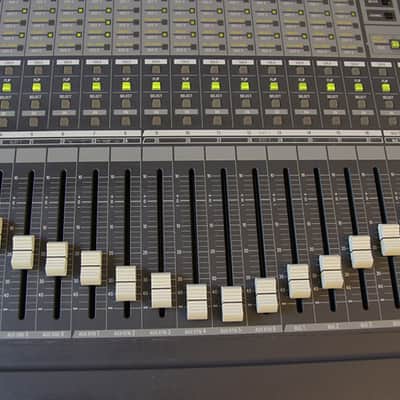

24-bit A/D and D/A converters yield over 110dB dynamic rangeInstant recall of all major mixer settings (EQ, dynamics, snapshots, etc.) via 200 memory locationsAnalog-style 1-step functionality (common mixer functions are only 1 step away, so you don't have to page through menus)38 channels (32 analog or digital inputs plus 6 aux returns) plus 8 busesSurround Sound: 5.1 mixing is built-in4-band parametric EQ on each channel (a total of 48 EQs)Dynamics section on every channel, including compressor/limiter, gate, expander and delayAutomation: both dynamic and snapshot automation for all mixer parameters is built-in, with an optional automation expansion software package availableMultiple interfaces: 3 rear panel expansion slots for up to 24 channels of ADAT, TDIF or AES/EBU connections are availableOther option cards allow SMPTE and video sync, tandem connection of 2 DA7s and analog A/D and D/A connections4 fader layers: 21 high quality moving faders do triple duty as level controls for channels 1–16 (layer 1), 7–32 (layer 2), or aux sends 1–6, aux returns 1–6, and buses 1–8 (layer 3); the fourth layer allows you to customize your work surface by reassigning any of the audio faders and adding MIDI faders

Specifications:

E.I.N. : 20kHz-128DB (rs=150 W input sensitivity -60dB) Residual Noise : -92dB Typical Maximum Voltage Gain : 84dB Bus out, 84dB Master out, 84dB Aux out C.M.R.R. : More than 80dB (1kHz) AD Converter : 24-bit 128X oversampling (INPUT 1 ~ 16), 20-bit 64X oversampling (AUX RETURN 3-6) DA Converter : 24-bit 64X oversampling (MASTER, MONITOR A), 24-bit 128X oversampling (MONITOR B), 20-bit 128X oversampling (AUX SEND 3-6) Internal Signal Processing : 32-bit (dynamic range 192dB) Signal Delay : Less than 2.5 ms (MIC/LINE input to MASTER output) Compressor/Gate Threshold : 40dB~32ms (1ms step) Compressor/Gate Ratio : 1, 1, 1, 1, 3, 5, 1, 7, 2, 2, 5, 3, 3, 5, 4, 5, 6, 8, 10, 20, µ (16 points) Compressor/Gate Attack Time : 0ms ~ 32ms(1ms step) Compressor/Gate Release Time : 50ms ~ 2000ms:5ms step Compressor/Gate Gain : -0dB - + 12dB (0.5dB step) Gate Threshold : -80dB ~-40dB(1dB step) Gate Release Time : 50 ms ~ 2000ms: 5 ms step Expander/Gate Threshold : -80dB~ -40dB(0.5dB step) Expander/Gate Ratio : 1, 2, 3, 4, 5, 6, µ Expander/Gate Attack Time : 0ms ~ 2000ms:5ms step Expander/Gate Range : 0dB - +40dB (0.5dB step) Equalizer LOW (PEQ) : Q 0.5 ~ 50 (41 step) F 20Hz ~ 20kHz (1/12 oct step) G ± 15dB (0.5dB step) Equalizer LOW (SHL) : F 20Hz ~ 106 kHz (1/12 oct step) G ± 15dB (0.5dB step) Equalizer LOW (HPF) : F 20Hz ~20 1.6kHz (1/12 oct step) Equalizer LOW-MID (PEQ) : Q 0.5 ~ 50 (41 step) F 20Hz ~ 20kHz (1/12 oct step) G ± 15dB (0.5 dBstep) Equalizer HIGH-MID (PEQ) : Q 0.5 ~ (41 step) F 50Hz ~ 20kHz(1/12 oct step) G ± 15dB(0.5dB step) Equalizer HIGH (PEQ) : Q 0.5 ~ 50 (41 step) F 50Hz ~ 20kHz (1/12oct step) G± 15dB (0.5dB step) Equalizer HIGH (SHL) : F 1kHz ~ 20kHz (1/12oct step) G±15dB (0.5dB step) Equalizer HIGH (LPF) : F 1kHz ~ 20kHz (1/12 oct step) Delay : 0~14,4000sample/0~300ms (fs:48Khz), 0~326ms(fs:44,1kHz) Phase : Normal/Reverse Gain Trim : 12dB ~ -24dB (0.5dB step) Stereo Meter : 20point x 2LED bar graph (VU/PPM selectable, Peakhold on/off) Fader : 100mm motor fader x21+ 10 ~- 90dB, -µ dB (128 step/100mm) Display : 320 x 240 dot graphic LCD (with backlight) Memory : Scene memory (snapshot) 50, Channel library 50, EQ library 50, Dynamics library 50, Automation 4 (event) Finish : Front panel: blue/black ABS; Rear & Enclosure: black steel Power Consumption : 105W (with options) Crosstalk : 90dB Typical (1kHz) Depth : 54.9 cm Dynamic Range : (WCK=48kHz): 113dB AD Converter (analog in through digital output) typical, A-weighted 114dB DA Converter (digital in through analog output) typical, A weighted Frequency Response : 20 Hz, +1, -2 dB Height : 24.4 cm Operating Temperature : 0°C ~ +40°C Power Requirements : 120VAC, 60Hz Sampling Frequency : INT:44.1/48 EXT.44.1kHz±3% 48kHz±3% Total Harmonic Distortion : Less than 0.1% (1kHz, +10dB input,+4 dB output, Rl=600 W: 20Hz Weight : 23 kg Width : 69.8 cm
