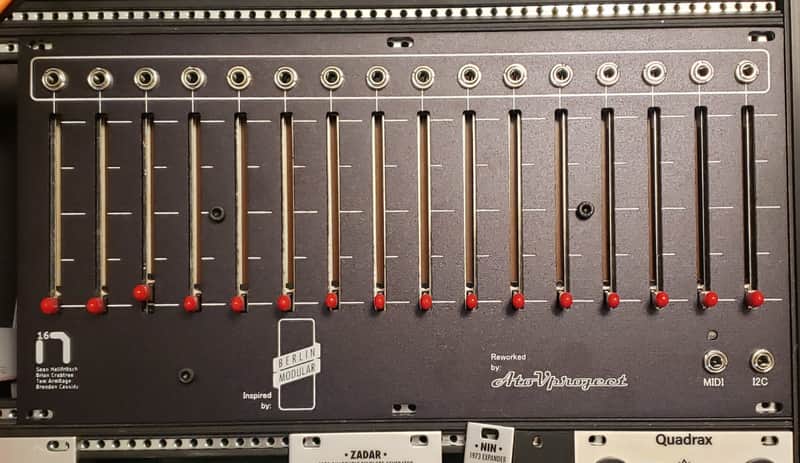

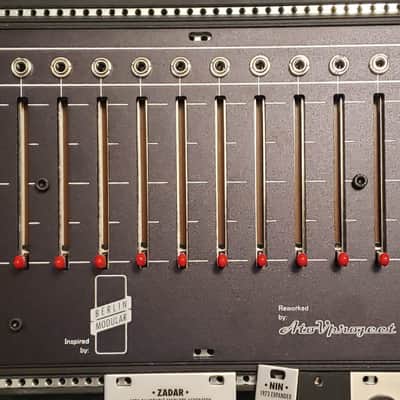

16n Berlin Modular Edition
Description:
The 16n Berlin Modular edition redesigned by AtoVproject improves on the original concept by upgrading the hardware design. The original 16n is a fader bank sending CV, I2C, MIDI jack compatible with all standards, USB MIDI (compatible PC, Mac, iPad etc…) , making it the absolute ultimate controller for any of your hardware and software all in one!
Improvements:
-Updated power section thanks to isolated USB power supply, proper voltage reference, and upgraded filtering. This greatly reduces the noise on the outputs. (Measured at less than 6mV)

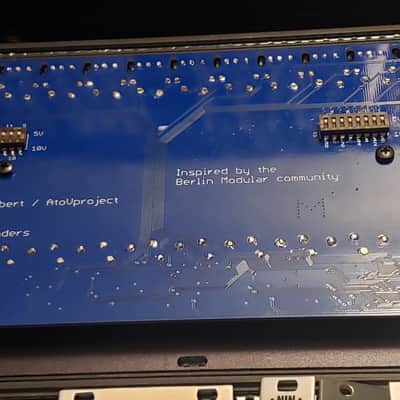

-Selectable 5v or 10V outputs: Each can be configured to output either 10V or 5V using a dip switch on the back of the module (even when using 5V USB power supply)
-Outputs facing upwards: The outputs will be directly on the front panel reducing the footprint and making outputs much more accessible
-Eurorack compatible: You would be able to mount the 16n as a 50hp module in your rack and power it from your own power supply. (+12V=42mA, -12V=0mA) (There is a switch on the back of the module to switch between Eurorack and USB power mode.)
-I2C connector on the PCB to simplify connection to modules like the ER301
Freshly built and tested. This adds tons of precise control to your eurorack, or use it standalone with your midi or cv compatible devices. Can be powered by eurorack power or micro usb.
