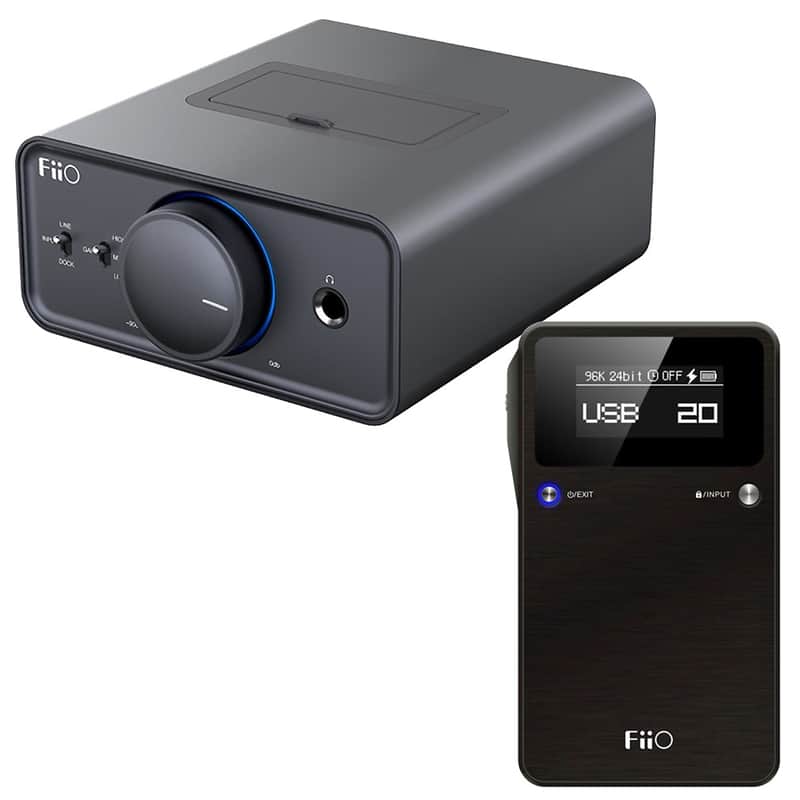

FiiO K5 Desktop Headphone Amplifier & Alpen 2 E17K Portable USB DAC
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
The K5 is the latest docking station from FiiO. It is compatible with the X1, X3ii, X5ii and X7, as well as the E17K. With an 11pin micro USB port this allows you facilitate exclusive docking expansion functions such as amplifications and charging. The K5 allows further amplification of the X1, X3ii, X5ii and X7 and E17K’s signal by directly connecting them to the USB source, through the USB IN port. It received the decoded line signal through the dock for amplification. A USB DAC driver installation for X3ii/X5ii/X7/E17K is required (where applicable). The FiiO K5, as well as being a dock will allow for standard line inputs to be used for other source components. When a player is docked on the K5 it will also synchronise the on/off function, allowing you to turn both units off at once.
Features
- 2 inputs available: AUX IN and FiiO dock input
- High-quality Alps sealed audio potentiometer
- Voltage amplification / buffer 2-stage amplification circuit
- High efficiency, well regulated, low noise power transformer for exceptional transient response
- Expandable docking function
Sleek, minmalist, solid build
The E17K inherits the brushed metal crafting of the E17, but with fewer buttons in front and a thinner profile for a sleeker look.
Multifunctional Wheel
Utilizing an all-new, unique multifunctional wheel, responding to both turns and presses, the E17K provides intuitive, agile control in one spot in place of several buttons on the E17.
USB Audio Decoding
Utilizing the SA9027 USB receiver, the E17K may be used as an exteranl sound card for computers, supporting up to 96 kHz/ 32-bit, and supporting DSD decoding (*with ASIO driver and SACD plugin)
Uncomprimising Sound
The E17K utilizes TI's all new PCM5102, which possesses higher S/N ratio, lower distortion and more linear digital-analog conversion characteristics. Also utilizing TI's flagship OPA1622 as low-pass filter, and the OPA1642+LMH6643 in a OP+BUF architecture usually only seen in high-end units.
Complete Connectivity
The E17K expands on the industry-standard Micro-USB socket to not only provide charging and data echange connectivity, but also to dock with FiiO's future desktop products. Also comes with coaxial digital input supporting up to 192 kHz / 24-bit PCM input (3.5 mm to coaxial converter plug included), and dual-function line in / line out port for maximum convenience and operational value for money.
Output Impedance H/O
<1 ohm
Max Output Power @ 16 ohm
>1.7 W
Max Output Power @ 32 ohm
>1.5 W
Max Output Power @ 300 ohm
>150 mW
SNR
>110 dB (AUX IN)
THD+N
0.002% (1 kHz 32 ohm)
Frequency Response
20 Hz-20 kHz
Gain
0 dB / 6 dB / 12 dB
Crosstalk
>70 dB (1 kHz)
Max Output Voltage
20 Vp-p
Dimensions
120 x 130 x 55mm
Outer Material
Titanium coloured brushed aluminium
Headphone Out
6.3 mm
Weight
450g
Power Supply
DC15V/1.5A
FiiO Alpen 2 E17K Portable USB DAC & Headphone Amplifier
Output Power: >200 mW (32O THD<1%)
Recommended Headphone Impedance: 60-150O
Maximum Supported Sample Rates: 96 kHz/ 32-bit (USB decoding) ; 192 kHz/ 24-bit (coaxial digital input decoding)
Battery Life: >15h
Dimensions: 104.1mm x 62.2mm x 12.8mm
Weight: 110g
