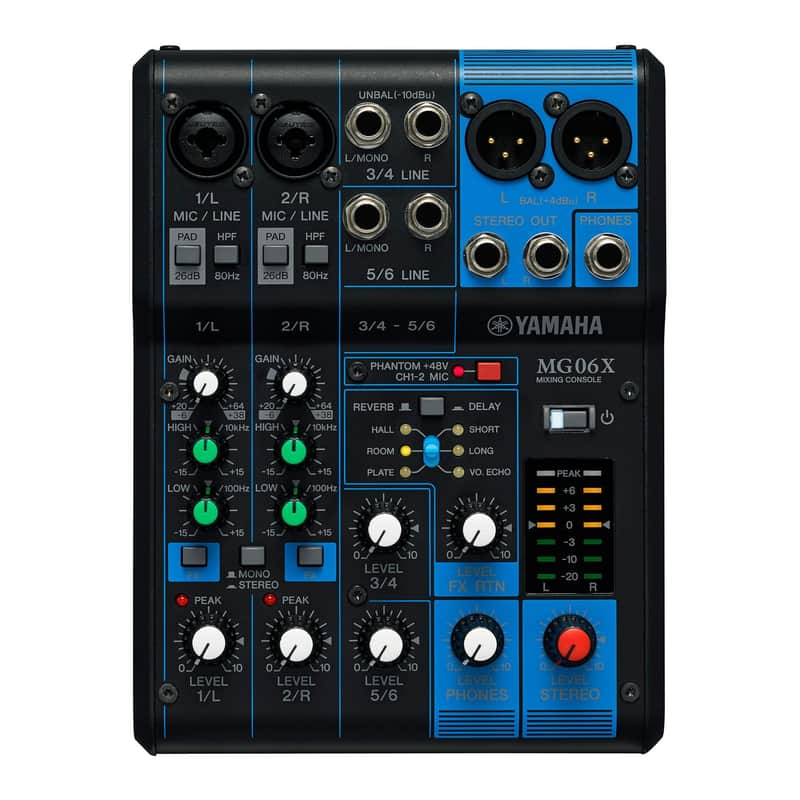

Get More Precise Control and Enhancement Of Your Sound with The Yamaha MG06X 6-Channel Mixing Console with FX
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
"D-PRE" mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
SPECIFICATIONS
Onboard Processing
SPX Algorithm: 6 programs
Input Channels
Mono [MIC/LINE]: 2
Stereo [LINE]: 2
Input Channel Functions
PAD
HPF
EQ HIGH
EQ LOW
PEAK LED
Level Meter
Output Channels
STEREO OUT: 2
PHONES: 1
Bus
Stereo: 1
Total Harmonic Distortion: 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency Response: +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk: -88 dB
Phantom Power: +48V
Power Requirements: AC 100 – 240 V, 50 / 60 Hz
Other Power: PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m)
Power Consumption: 12 W
Dimensions (W x H x D): 5.9 x 2.4 x 7.9 inches / 149 x 62 x 202 mm
Net Weight: 1.98 lbs / 0.9 kg
Operating Temperature: 0 to +40Ëš C
Included Accessories
AC Adaptor
Owner's Manual
Technical Specifications
