Due to delays from the manufacturer, this product has an estimated 4-week handling time. Please contact us for details prior to ordering for a current time estimate.
Classic tube and solid-state tones with 1176-style compression and professional A/D conversion.

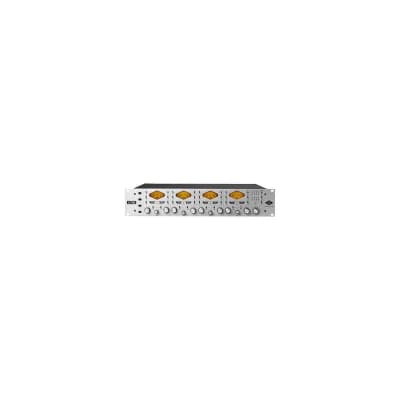

By merging the best of UA’s classic analog design with smart modern features and workflow enhancements, the 4-710d is the most flexible microphone preamp in the UA lineup.
Featuring four high-end mic/line preamps with a unique tube/solid-state tone blending circuit, as well as classic 1176-style compression on each mic channel, the 4-710d also offers tons of digital I/O to expand your setup.
NOW YOU CAN:
- Track through meticulously designed UA tube preamp circuitry
- Blend tube and solid-state textures for tons of flexibility
- Harness classic 1176-style compression on each mic channel
- Add 8 inputs to any Apollo interface via ADAT
Bring your Mic Collection to Life with a Wide Range of UA Preamp Tones
At the core of the 4-710d are four channels of tone-blending “Twin-Finity� mic preamps. Each channel offers 100% tube and 100% solid-state signal path, as well as the ability to continuously blend between the two circuits. This gives you tons of textures  from creamy to crunchy  and lets you dial in the perfect amount of tube grit or solid-state sheen.
A Legendary Compression Circuit
Each of the 4-710d’s four channels features true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. This enables quick, on-the-fly tweaking for fattening up a vocal, hold a bass guitar in place, or for adding sizzle and texture to synths and horns.
Add Inputs and Professional A/D Conversion
With eight analog inputs, the 4-710d is perfect for expanding your studio. Digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192 kHz, the 4-710d easily connects to most interfaces with its dual ADAT optical or AES/EBU DB-25 connectors.
Preamplifiers
- Four TEC Award-winning 710 Twin-Finityâ„¢ microphone/line preamps, each featuring:
- Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
- Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
- Newly designed 1176-style compression circuit per preamp channel
- JFET Direct Input with 2.2MΩ ultra Hi-Z impedance w/auto input override
- Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
- Balanced send/return inserts (half-normalled)
- 48V phantom power
- 75 Hz low cut filter
- Polarity switch
- Monolithic balanced output stage
Analog-to-Digital Conversion
- Eight channels of high quality 24-bit A/D conversion:
- Selectable sample rates up to 192 kHz
- Digital output via dual ADAT optical and AES/EBU DB-25 connectors
- 8-channel soft limiter (switchable for all channels)
- Ultra-low jitter clock subsystem
- LED metering array with clip/hold indicators
- 75Ω BNC work clock I/O
- Digital outputs anti-pop protection on power-up
Other
- Universal voltage internal power supply
- Heavy-duty metal construction, two-space rack unit
- One year warranty including parts and labor
