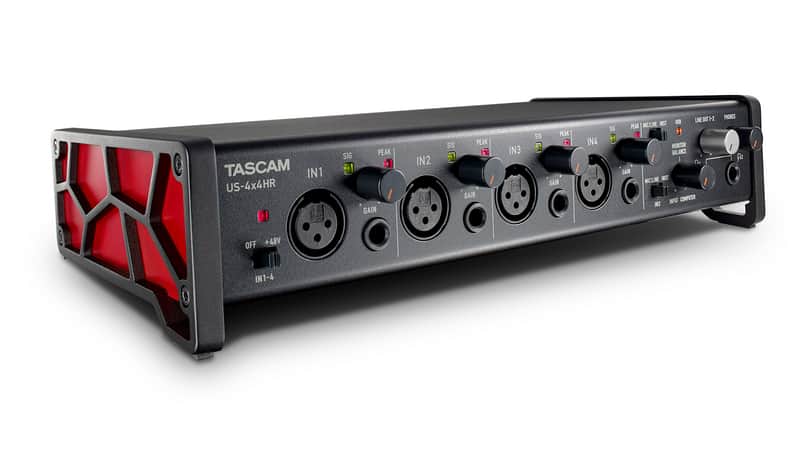

US-4x4HR
For producers building state-of-the-art music
production environments
The US-4x4HR is equipped with 4 mic/line inputs with guitar input
support on IN 1-2 plus 2 headphone outputs that can be put to use in various
music/multi-media production environments such as vocal/guitar simultaneous
recordings and multitrack recordings. The unit is also equipped with a USB-C
port to be easily powered by USB bus power.
High resolution reproduction in the US-HR series has been pursued based
on TASCAM's policy to recreate sound as close to the original as possible.
Therefore, the in-house developed Ultra HDDA mic preamp combined with a newly
improved audio circuit delivers enhanced audio performance with the most
transparent and low-noise sound.
Direct monitoring will diverge signals before sending them to the
computer, resulting in smooth, in-time monitoring without any sound delay
during both recording and performance.
The US-HR models come bundled with world-renowned software that will
enhance the user's production workflow. At the core of music production,
Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's
Sample Tank SE, which comes free of charge with a massive 30 GB sound library
encompassing more than 2,000 different musical instruments.
US-HR models also come with a free 3-month subscription to Auto-Tune
Unlimited, a comprehensive suite of industry standard pitch correction and
vocal effects.
The US-4x4HR can be used with computers or smartphones to easily create
podcasts or live streams. The audio can be switched between stereo/mono, and
the loopback function allows the audio from the computer to be returned to the
streaming software for playback during live streams. US-4x4HR also supports
OBS, which is popular and used worldwide.
In "loopback mode" for live streaming, IN 3/4 also support
stereo / monaural mix. (Added in V1.10)
The MIDI IN/OUT terminals allow for other MIDI external devices such as
keyboards, drum machines, controllers, etc. to be synchronized and controlled.
Capitalizing on our experience of being one of the pioneers in
manufacturing USB audio interfaces, we achieved further stability in our native
driver. The audio buffer size can be set starting from 4 samples (Windows only)
to give the best performance to every different environment; maximizing the
capability of the computer in use while creating a low-latency environment.
Features at a
glance
· 4-in/4-out USB audio interface
· Supports up to 24-bit/ 192kHz audio formats
· Improved TASCAM driver with selectable buffer size from 4
samples provides low-latency and stability (Windows: TASCAM native driver)
· 4 XLR/TRS combo inputs equipped with Ultra HDDA mic
preamps and +48V phantom power
· Combo TRS line inputs with guitar input support on IN1-2
· TRS line outputs 1-2/3-4
· Two headphone outputs
· Equipped with MIDI IN/OUT terminals
· USB Type-C connection (USB Type-A to Type-C cable
included)
· Powered by USB bus power
* 48V phantom power requires PC power supply via USB-C connection.
· Zero-latency direct monitoring
· Compatible with iPad and other iOS devices
· Extensive line-up of bundled software
o Steinberg Cubase LE, Cubasis LE 3
o IK Multimedia Sample Tank 4 SE
o Antares AUTO-TUNE UNLIMITED (available free of charge up
to 3 months)
· Compatible with mainstream DAW software (Pro Tools, Live,
Cubase, Studio One, GarageBand, Logic Pro)
· Stereo/mono selectable loopback function (Windows, Mac,
iOS, iPad OS)
· OBS support
Included items
· US-4x4HR
· AC adapter PS-P1220E
· USB cable (Type-A to Type-C)
· DAW software installation guide
· DAW plug-in software installation guide set
· Owner's manual（warranty card included)
