About this listing

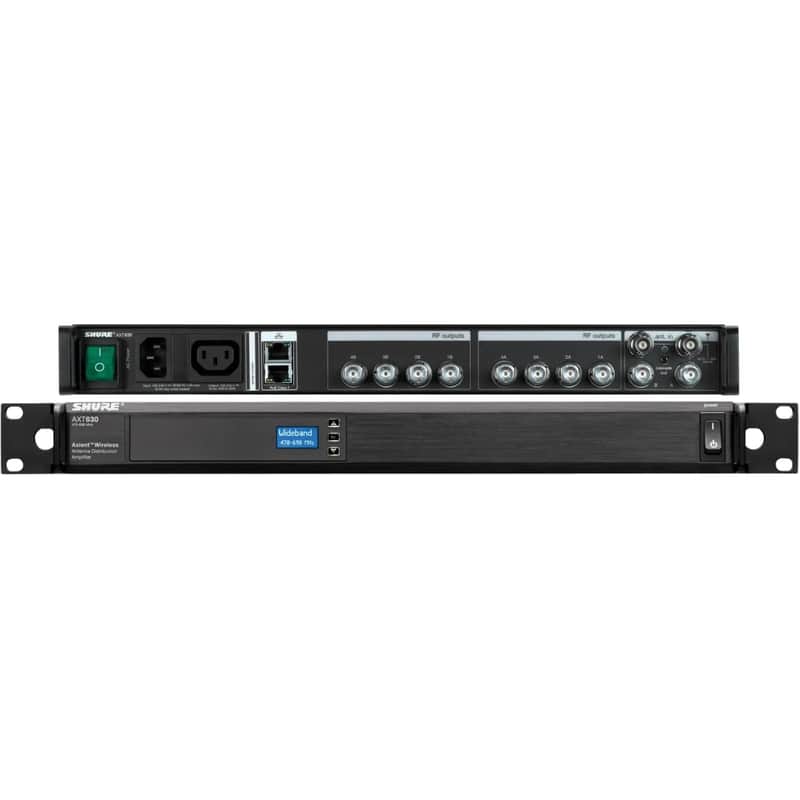

The AXT630 features selectable 60 MHz input filters that match the available frequency bands of Axient transmitters, providing extra protection from strong out-of-band signals and a lower overall RF noise floor. Four BNC antenna output pairs distribute filtered signal to receivers, and an unfiltered RF cascade port is included to connect wideband devices like the Axient Spectrum Manager. Networkable via Ethernet connection, the AXT630 enables WWB6 control of filtering ranges, antenna power and attenuation.
Features
Wideband antenna distribution system for Axient and compatible receivers
Selectable 60 MHz input filters matched to Axient transmitter bands
Wideband filter mode available for mixed-band setups
Ultra-linear RF amplification prevents signal distortion
Four BNC output pairs for filtered antenna distribution
Unfiltered cascade output with selectable 3 dB make-up gain
Up to 15 dB selectable RF attenuation for fine-tuning signal-to-noise
Front panel control or remote management via Wireless Workbench 6 (WWB6)
Dual Ethernet ports with PoE support for networking
IEC in/out power connectors for AC daisy-chaining
RF Optimization- Ultra-linear distribution amp handles high signal levels without distortion.- Selectable input filtering provides system-wide protection against strong out-of-band signals.- Filter ranges are matched to Axient transmitter bands.- Wideband filtering option covers multiple bands.- Up to 15 dB selectable RF attenuation for signal-to-noise optimization.
Connectivity- Front panel interface and WWB6 control provides easy setup and control of filtering, antenna power and attenuation.- BNC outputs: 4 antenna output pairs.- Unfiltered RF cascade port with selectable 3 dB make-up gain for connecting wideband devices.- Ethernet networking: 2 PoE-enabled Ethernet ports.- IEC in/out power ports enable daisy-chaining of AC power.
Specifications:
Frequency Range- 470–698 MHz
Filtering- Selectable 60 MHz input filters- Wideband filter mode available- Input filtering matched to Axient transmitter bands
RF Distribution- 4 pairs of BNC filtered antenna outputs- 1 unfiltered BNC cascade output with selectable 3 dB make-up gain- Up to 15 dB selectable RF attenuation
Networking- 2x Ethernet ports (PoE-enabled)- Compatible with Shure Wireless Workbench® 6 for control and monitoring
Power- IEC AC in/out ports for daisy-chaining power- PoE over Ethernet supported- Front Panel Controls- Filtering range- Antenna power- RF attenuation
Ideal For- Axient Wireless Systems- Broadcast installations- Touring productions- Large-scale multi-channel RF setups
