About this listing

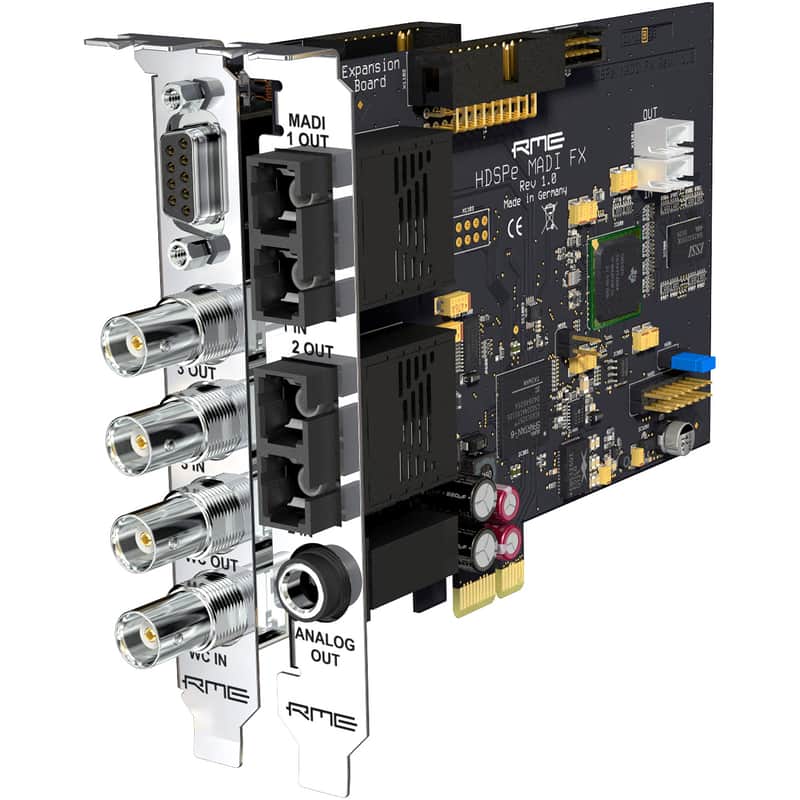

The RME HDSPe MADI FX PCI Express Card is a unique audio system capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Based on the common professional AES/EBU standard, the HDSPe transmits 64 audio channels with a single line and embeds MIDI and RS232 signals invisibly into the data stream.
The RME HDSPe MADI FX PCI Express Card marks a new milestone both in the history of audio interface cards in the past two decades and within the long series of outstanding RME devices. Never before has such a high-performance multi-channel audio system existed.
The RME HDSPe MADI FX features 390 audio channels! Three MADI I/Os - two optical and one coaxial are accompanied by one AES/EBU I/O and one analog monitoring output. To complete the feature set, a Word Clock connection and four MIDI I/Os were added. The complete technology and connectivity are highly integrated into the smallest possible amount of space - typical for RME. Only one PCIe slot is required on the motherboard, plus one free slot opening on the case.
To guarantee RME's unique low latency performance with such a huge amount of audio channels, the RME HDPSe MADI FX introduces a newly developed modular Hammerfall Pro Audio Core. The high-tech core will process three times as many channels as the channel count of the previous MADI flagship, while actually reducing the system load and enabling ultra-low latencies down to 32 samples on modern computers.
A sophisticated new efficiency technology will automatically deactivate currently unused channels, so that they require no processing power or bandwidth. A simple stereo playback will not require any more performance than from a standard stereo audio card - despite the use of a professional multi-channel system with almost 400 channels.
The new core technology is accompanied by a special version of TotalMix FX, which allows using the enormous channel count in an efficient and practical manner. The addition of numerous performance optimizations ensures that the 4096-channel mixer of the MADI FX responds just as smoothly as its 1800-channel counterpart in the Fireface UFX. A new and faster DSP allows for a greater number of EQs and compressors.
An innovative new layout of TotalMix enables ergonomic handling of the enormous number of channels. A special option makes it possible to visually hide unused channels. Complete "Hide setups" can be saved at any time, and switched with a simple mouse click, for example between the channel view of the drum mix and the full band setup.
The 192 kHz RME effects engine allows latency-free monitoring with numerous effects like EQs, Compressors, Reverb, and Echo rendered directly on the hardware of the card, independent from the DAW software in use.
The integrated TotalMix matrix conveniently allows the use of the card as powerful MADI router. Unlike most other router solutions, each channel can be routed individually - even with separate level settings for each routing. The unparalleled flexibility of TotalMix can turn the most exotic applications into practical reality.
The RME's unique Seamless Redundancy Operation uses the cards 3 MADI receivers to provide professional users with state-of-the-art fail safe operation. In SRO mode the card operates as single MADI input device, recording up to 64 channels. As soon as the current input fails the audio data received from one of the other two inputs is used. The audio data is not interrupted when switching to another input and the card can use not only one, but two more sources for redundancy. No relocking and synchronization to a different clock source is required, and the interruption caused by the external failure is minimized to a few samples.
The card also features SteadyClock, RME's active jitter suppression and the unique professional meter and analysis toolbox DIGICheck - including EBU R128 metering - as well as nearly identical operation of the card under Windows and Mac OS.
Sonarworks and RME ColaborationThanks to the DSP in certain RME audio interfaces, a unique and powerful colaboration between RME and Sonarworks, brings new possibilities in monitoring calibration and audio reproduction. Certain RME interfaces are now compatible with the SoundID Reference calibration profile, allowing you to export it directly onto the DSP and eliminating the need to run the software in the background.
Compatible Interfaces include:UFX+MADIface XT II
If you own a perpetual license for Sonarworks’ SoundID Reference you can load your exported profile directly to these interfaces to run them via the interface's built in DSP - no longer needing to run the software in the background.
How does it works:Step 1: Measure your set upMeasure and calibrate your studio speakers using the microphone provided by following the steps in the set-up guide.
Step 2: Choose your target modeChoose your calibration Profile and correct for the Dolby Atmos Music curve, flat frequency response or create custom profiles.
Step 3: Export your ProfileExport up to 32 unique Profiles directly to RME interface’s internal memory, watch as your settings are automatically adjusted.
Step 4: You’re Now Ready to MixSit back and enjoy a consistent translation of your audio no matter what format you are working in.
This gives you benefits in room correction, once only available with the likes of Genelec's GLM profiles being able to be stored on the Genelec SAM series monitors, but with this colaboration - you get the functionality with any monitoring system. Further this works for stereo and ATMOS (immersive audio) systems.
RME HDSPe MADI FX PCI Express Card Features
All settings can be changed in real-time
8 available buffer sizes/latencies: 0.7 / 1.5 / 3 / 6 / 12 / 23 / 46 / 93 ms
100 channels 96 kHz/24 bit record/playback
52 channels 192 kHz/24 bit record/playback
Automatic and intelligent master/slave clock control
Word clock input and output
TotalMix for latency-free submixes and perfect ASIO Direct Monitoring
SyncAlign guarantees sample aligned and never swapping channels
SyncCheck tests and reports the sync hronization status of input signals
1 x MIDI I/O, 16 channels high-speed MIDI
DIGICheck DSP: Level meter in hardware, peak- and RMS calculation
TotalMix: 4096 channel mixer with 46 bit internal resolution
SteadyClock: Jitter-immune, super-stable digital clock
RME HDSPe MADI FX PCI Express Card Specifications
1-Lane PCI Express Endpoint Device: (no PCI Express to PCI Bridge), revision 1.1.
Line Speed: 2.5 Gbps line speed
Communication: Packet-Based Full-duplex Communication (up to 500 MB/s transfer rate)
Settings: All settings changeable in real-time
Control: Automatic and intelligent master/slave clock control
Sync Sources: MADI coaxial, MADI optical, AES/EBU, word clock, internal
Varipitch: by input signal or word clock
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
Sample Rate Range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
Jitter: < 1 ns, internal and all inputs
Jitter Sensitivity: PLL operates even at 100 ns Jitter without problems
Comes With DIGICheck: the ultimate measurement, analysis and test tool
Input Word Clock: Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
Output Word Clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI Input and Output: via two 5-pin DIN jacks
Stereo Monitor Output (Phones):
Signal-to-Noise (DR): 110 dB RMS unweighted, 113 dBA @ 44.1 kHz
Channel Separation: > 100 dB
Output: 6.3 mm TRS
Output Impedance: 75 Ohm
Output Level at 0 dBFS: +13 dBu

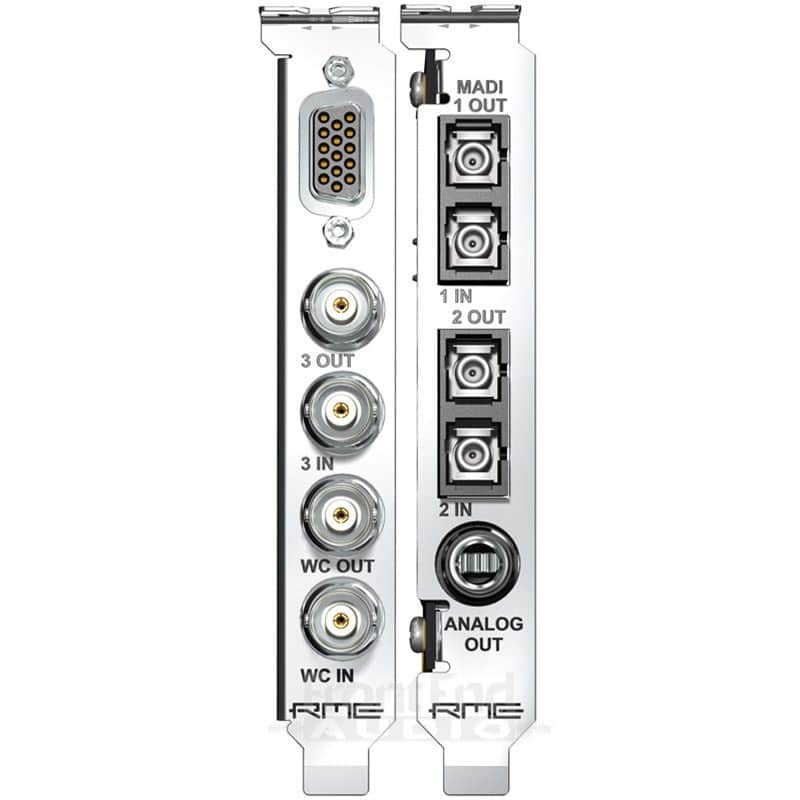

Connectivity:
PCI Express Interface
194 input- / 196 output channels = 390 channels
3 x MADI I/O (2 x optical + 1 x coaxial)
AES/EBU I/O (via breakout cable)
3 x virtual MIDI I/O over MADI
1 x MIDI I/O via 5-pin DIN (breakout cable)
Stereo Analog Out
Word Clock I/O
TotalMix FX with 192 kHz effects engine
Drivers:
Windows 7 / Vista / XP SP2 (32 & 64 bit)
Apple Mac OS X Intel (Core Audio), 10.6 or up
Windows and Mac OS X drivers are completely identical in terms of features and functionality. Some features in DIGICheck are not yet available in the Mac version
RME HDSPe MADI FX PCI Express Card Includes
HDSPe MADI FX PCI Express card
HDSPe MADI FX BNC-X expansion board
Quick Info guide
RME Driver CD
AES/MIDI breakout cable
Expansion Board ribbon cable (20-conductor)
Internal Sync cable (3-conductor)
