About this listing

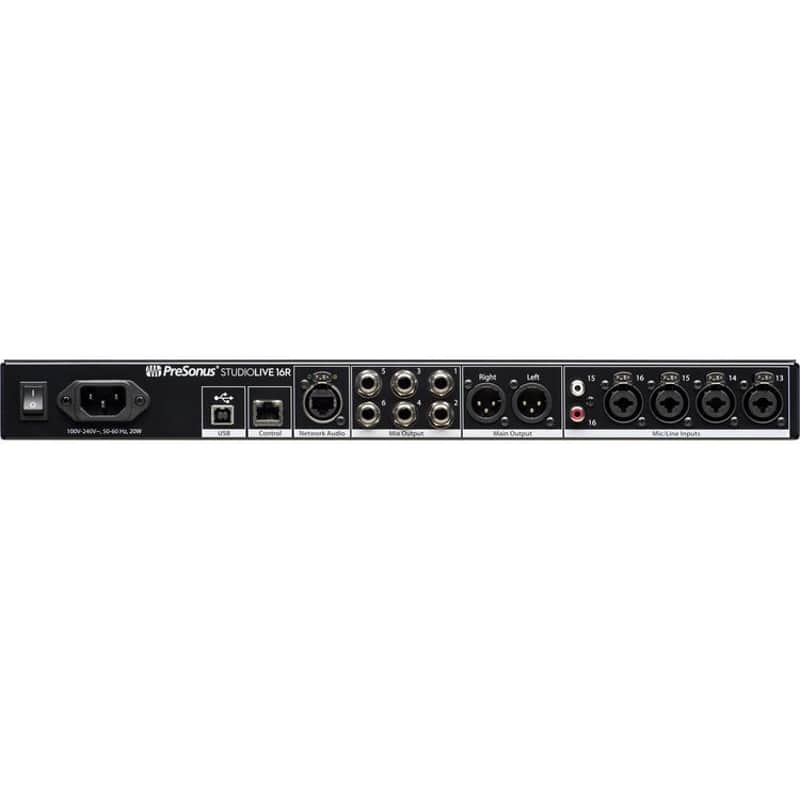

The PreSonus StudioLive 16R Digital Rack Mixer is an 18-input, 16-channel Series III stage box and rack mixer designed to provide stunning rackmount mixing and processing power.
The PreSonus StudioLive 16R Digital Rack Mixer offers four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
The Best 16-Channel Digital Mixer for Your RackInside the PreSonus StudioLive 16R, the single-core PreSonus FLEX DSP Engine powers 18 mixing channels, 10 mix buses, and 130 simultaneous processors—including 2 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. This is a true 16-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders, but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An Integrated Monitor MixerProfessional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the PreSonus StudioLive 16R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to six monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The Perfect Personal Monitoring SystemModern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the PreSonus StudioLive 16R is the most powerful personal monitoring hub available. With 6 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the PreSonus StudioLive 16R makes it easy to create simplified mixes for some EarMix 16M personal monitor mixers, while giving other EarMix 16Ms on the same network access to all 16 channels. Two dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features.
The Digital Stage BoxAs a digital stage box for StudioLive Series III console mixers, the PreSonus StudioLive 16R provides 16 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the PreSonus StudioLive 16R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode, and you have a full-featured, 16-channel digital mixer that fits into a single rackspace.
The USB Audio Interface with Vintage SoundsRecording engineers searching for a USB audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the PreSonus StudioLive 16R. An integrated 36-channel (18x18) audio interface lets you record with a complete rack of vintage EQ and dynamics processors for every channel and bus. You get six models pre-installed, plus the additional 15 from the Fat Channel Collection Vol. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the PreSonus StudioLive 16R and inside Studio One®, providing the ultimate mixing and recording flexibility. Like every PreSonus interface, the PreSonus StudioLive 16R is ready to record right out of the box with Studio One Artist or Capture®—both of which are included.
A Complete Networked SolutionStudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The PreSonus StudioLive 16R combines the powerful processing for which StudioLive Series III mixers are known with flexible modes to pair perfectly with console mixers and EarMix 16M personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the PreSonus StudioLive 16R combines flexibility with DSP power to become the ultimate compact audio solution.
PreSonus StudioLive 16R Digital Rack Mixer Features
Powered by the new single-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
18 input-channel digital rack mixer
16 local digitally controlled XMAX mic/line inputs
2 FLEX FX returns
10 mix buses
6 FlexMixes (Aux, Subgroup, Matrix)
2 dedicated FLEX FX buses
Stereo Main bus
130 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 2 slots to load legendary reverb emulations and delays with 2 dedicated effects buses
6 DCAs to control groups of channels
36-channel (18x18) recording over USB
Onboard stereo SD recorder with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
Monitor Mix and Stage Box Mode for use with StudioLive Series III console mixers
Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
PreSonus StudioLive 16R Digital Rack Mixer Specifications
Microphone Preamplifier:
Input Type: Combo Locking XLR Mic-¼” TRS Line
Frequency Response to Main Output (At Unity Gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 kO
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, Unity Gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz At Unity Gain): 65 dB
Gain Control Range (±1 dB): 0 dB to +60 dB
Maximum Input Level (Unity Gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, Switchable Per Channel
Unbalanced Inputs (Ch. 15-16):
Type: RCA Female, Unbalanced (Stereo Pair)
Maximum Input Level: +12 dBu, ±0.5 dBu
Main Outputs:
Type: XLR Male, Balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100O
Mix Outputs:
Type: ¼” TRS Female, Balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100O
Headphone Output:
Type: ¼” TRS Female, Active Stereo
Maximum Output: 100 mW/ch. @ 60O Load
Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
THD+N: 0.01%, 1 kHz, Max Gain, 20 Hz BW, Unwtd
S/N Ratio: 96 dB, 1 kHz, Max Gain, 20 Hz BW, Unwtd
Digital Audio and Control:
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-Bit, Foating Point
Sampling Rate: 48 kHz, 44.1 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (Local Routing, Analog In-Analog Out, All Processing Active)
Power / Environmental:
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (±10%)
Power Requirements (Continuous): 85W
Recommended Ambient Operating Temperature: 0° to 40° Celsius / 32° to 104° Fahrenheit
Physical:
Height: 1.75” (45mm)
Width: 19” (483mm)
Depth: 12” (305mm)
Weight: 8.6 lbs. (3.9 kg)
Computer System Requirements:
Mac:
macOS® 10.11 or higher (64-bit only)
Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Windows:
Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems:
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
34 GB hard disk space
Monitor with 1366x768 resolution
iOS:
iOS 10 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android:
Android™ 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
PreSonus StudioLive 16R Digital Rack Mixer Includes
1 x PreSonus StudioLive 16R Digital Rack Mixer
1 x IEC Power Cable
1 x USB Cable
1 x PreSonus Health Safety and Compliance Guide
1 x Quick Start Guide
1 x PreSonus® Studio One® Artist Digital Audio Workstation for Mac® and Windows ®
1 x PreSonus Capture™ Live-Recording Software for Mac and Windows
1 x PreSonus UC Surface Touch Control Software for Mac, Windows, Android™, and iPad®
1 x PreSonus QMix®-UC Software for iPhone®/iPod Touch® and Android™
3 Year Warranty
