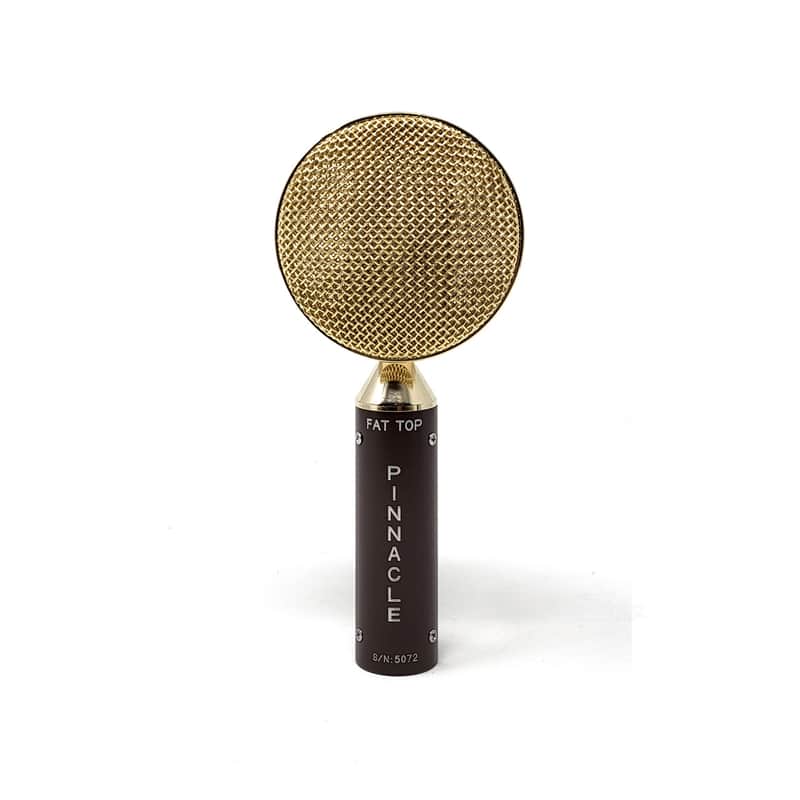

The Pinnacle Microphones Fat Top Ribbon Microphone is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. This version features a brown body with gold grill.
The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room.
Pinnacle Microphones Fat Top Ribbon Microphone Features
Hand-tuned ribbon element incorporates the legendary symmetrical ribbon design
Offers a true figure 8 polar pattern
Produces a balanced audio input signal to both sides of the ribbon assembly
Perfect for guitar cabinets, drum over-heads, vocal, piano, horns, strings, and much more
Pinnacle Microphones Fat Top Ribbon Microphone Specifications
Type: Ribbon (velocity) Microphone
Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
Polar Pattern: Symmetrical Figure 8
Sensitivity: -49.2 dB (3.5 (mV/Pa)
Frequency Response: 30 to 15 KHz (+/- 3dB)
Impedance: <=200 Ohms
Recommended Load Impedance: 1000 Ohms
Max.SPL (1% THD @1000 Hz): 135 dB
Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
S/N Ratio: re 1Pa: 70 dB
Connector: 3-Pin Male XLR
Size: Diameter: 3” (O.D. grill), overall length 6 1/2”, 7/8” (O.D. body)
Pinnacle Microphones Fat Top Ribbon Microphone Includes
Pinnacle Microphones Fat Top Ribbon Microphone
Shockmount
Carrying Pouch
Molded Flight Case
Manufacturer Warranty
