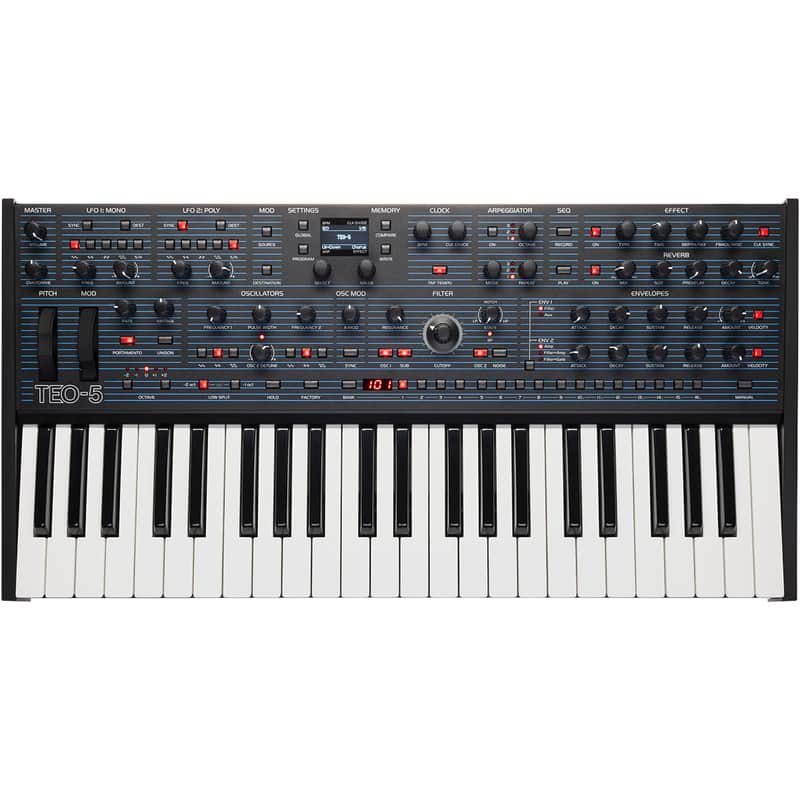

The Oberheim Legacy is Yours - Oberheim TEO-5 Analog Synthesizer
Enter TEO-5 Meet the TEO-5, a modern synth designed with the analog heart that defined the golden age of synthesis. The initials TEO stand for Thomas Elroy Oberheim, whose pioneering vision is embodied in this powerful, sleek instrument tailored for today's musical explorations. Drawing inspiration from iconic models like the OB-X, Four Voice, and TVS, the TEO-5 is a compact, affordable dream machine that captures the essence of Oberheim's legendary sound. This is the instrument Tom Oberheim always envisioned—a device offering a timeless tone palette that is both unleashed and accessible.
5-Voice VCO/VCF-based polysynth
Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulseDedicated front-panel X-Mod control for through-zero FM
Classic SEM filter with selectable Band-Pass modeState knob continuously morphs from Low-Pass through Notch to High-Pass2 five-stage (DADSR) envelope generators and 2 LFOs with tempo sync
Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
Arpeggiator and Polyphonic Sequencer
Dedicated overdrive and digital reverb, delay, chorus, flanger, plus Oberheim phase shifter and ring modulator emulations
Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes to control voice triggering priority
256 user and 256 factory programs in 32 banks of 16 programs each
Innovative Design Combining Modern Mastery and Vintage Magic
The TEO-5 not only pays homage to classic synths but enhances them with modern technology. It features genuine analog VCOs and VCFs that produce rich, warm tones through triangle, sawtooth, and pulse waves. Unlike vintage synthesizers, the TEO-5 includes updated oscillators that introduce analog through-zero FM for creating unprecedented textures. At the core of its sound-shaping capabilities lies the legendary SEM filter, renowned for its role in countless hit songs over the past five decades. The synth also offers precise envelope emulations from the OB-8, and dual digital effects like chorus, delay, and reverb, further expanded by emulations of Tom's original Phase Shifter and Ring Modulator for even more sonic variety.
A Creative Playground for the Modern Musician
The TEO-5 is designed not just as a musical instrument but as a comprehensive playground for creativity. Its 64-step polyphonic sequencer and multimode arpeggiator invite endless melodic exploration, while the premium Fatar keybed provides a responsive and joyful playing experience. Whether you're crafting soaring leads, cascading chords, or thunderous bass, the TEO-5 enhances every aspect of your performance. Ideal for both studio recordings and live performances, it serves as a bridge to the Oberheim legacy, accessible and ready to inspire music creators from seasoned professionals to new enthusiasts embarking on their analog journeys. This isn't just Tom Oberheim's dream realized—it's an invitation to define your own sonic legacy with the TEO-5.
SPECIFICATIONS
Oscillators
5-Voice VCO/VCF-based polysynth
2x VCOs and sub oscillator per voice
Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulse
Oscillator 1 syncs to Oscillator 2
Dedicated front-panel X-Mod control for through-zero FM
Switchable key tracking per oscillator
White noise generator accessible in pre-filter mixer
State Variable Filter
Classic SEM filter with selectable Band-Pass mode
State knob continuously morphs from Low-Pass through Notch to High-Pass
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard tracking
Filter Envelope
Five-stage (DADSR) envelope generator
Velocity modulation of envelope amount
Freely assignable modulation destinations
Amplifier Envelope
Five-stage (DADSR) envelope generator
Velocity modulation of envelope amount
2 Low Frequency Oscillators
Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
LFO tempo sync
Initial amount setting
Freely assignable modulation destinations
Vintage Knob
Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
Aftertouch
Channel (mono) aftertouch with bi-polar amount
Freely assignable modulation destinations
Clock
Master clock with tap tempo
BPM control and display
MIDI clock sync
Arpeggiator
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Up, down, up/down, random, and assign modes
Sequencer
Polyphonic step sequencer with up to 64 steps, including ties and rests
Effects
One dedicated reverb with damping, pre-delay, decay and tone
One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi
Dedicated Overdrive effect
Performance Controls
Full-sized, semi-weighted, 3.5-octave premium Fatar keyboard with velocity and aftertouch
Spring-loaded pitch wheel with independently adjustable upper and lower pitch wheel range selectable per program
Low-split mode creates two independent performance zones with different octave ranges
Hold switch latches held notes on
Polyphonic portamento (glide)
Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes to control voice triggering priority
Manual switch: when on, the front panel is live; what you see is what you hear
Patch Memory
256 user and 256 factory programs in 32 banks of 16 programs each
Direct program access, including single-button access to the current set of 16 programs
In/Out
Left and right audio outputs (2 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
MIDI in, out, and thru ports
USB for bidirectional MIDI communication
Volume expression pedal input
Sustain footswitch input
Power
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
Physical Specs
Premium, 3.5-octave, semi-weighted Fatar keyboard
Dimensions: 25″ L x 12.75″ W x 4.4″ H
Weight: 17 lbs
