Overview

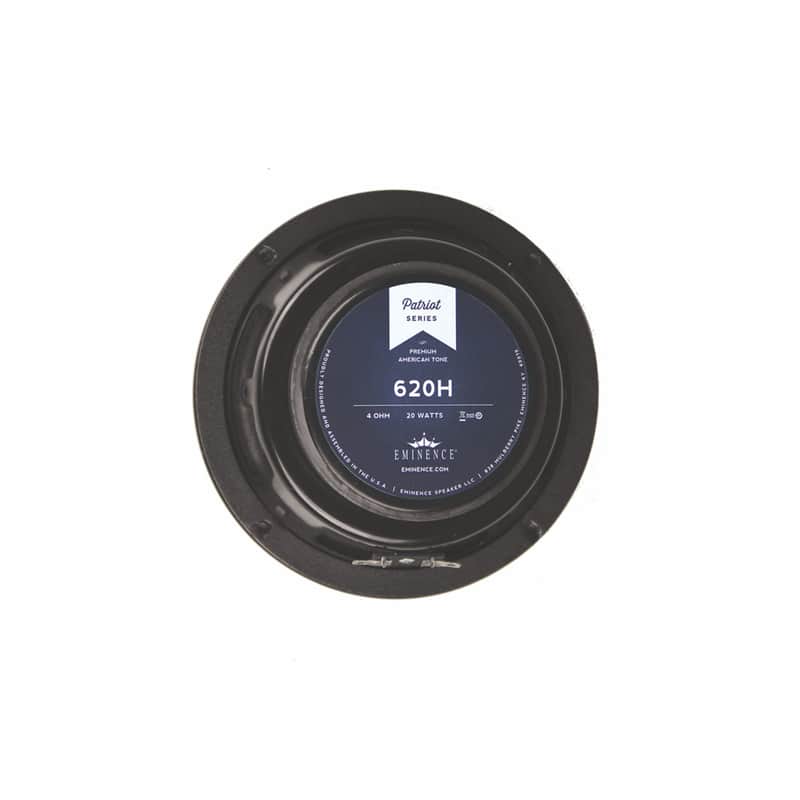

The little brother to the 820H, the 620H is a four ohm hemp cone speaker with warm, full, and clean tone that will make a small, thin amp sound bigger and fatter. Cleaner, warmer, fatter, and better definition than any stock 6.5” speaker.
SPECIFICATION
Nominal Basket Diameter
6", 165 mm
Nominal Impedance*
4 Ω
Power Rating*
Program Power
40 W
Watts
20 W
Resonance
114 Hz
Usable Frequency Range
100 Hz - 5.3 kHz
Sensitivity*
94.6 dB
Magnet Weight
15 oz.
Gap Height
0.25", 6.4 mm
Voice Coil Diameter
1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
114 Hz
DC Resistance (Re)
3.94 Ω
Coil Inductance (Le)
0.25m H
Mechanical Q (Qms)
5.5
Electromagnetic Q (Qes)
0.54
Total Q (Qts)
0.49
Compliance Equivalent Volume (Vas)
8.67 liters / 0.31 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
5.3 cc
Mechanical Compliance of Suspension (Cms)
0.32 mm/N
BL Product (BL)
5.62 T-M
Diaphragm Mass Inc. Airload (MMs)
6 grams
Efficiency Bandwidth Product (EBP)
210
Maximum Linear Excursion (Xmax)
0.4 mm
Surface Area of Cone (Sd)
139.7 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
Acceptable
Vented
Acceptable
Driver Volume Displaced
0.011 cu.ft. / 0.3 liters
Overall Diameter
6.59", 167.4 mm
Baffle Hole Diameter
5.65", 143.5 mm
Front Sealing Gasket
Yes
Rear Sealing Gasket
Yes
Mounting Holes Diameter
0.23", 5.8mm
Mounting Holes B.C.D.
6.06", 153.9mm
Depth
2.8", 71.1 mm
Net Weight
2.9 lbs, 1.32 kg
Shipping Weight
3.6 lbs, 1.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Paper former
Magnet Composition
Ferrite magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper cone
Cone Edge Composition
Full molded paper cone
Dust Cap Composition
Paper dust cap
